Magnitude |
:6 |
| Date & Time (UTC) | 2021-10-04 02:39:29.2 |
| Date & Time (Local) | 1400/7/12 06:09:29.2 |

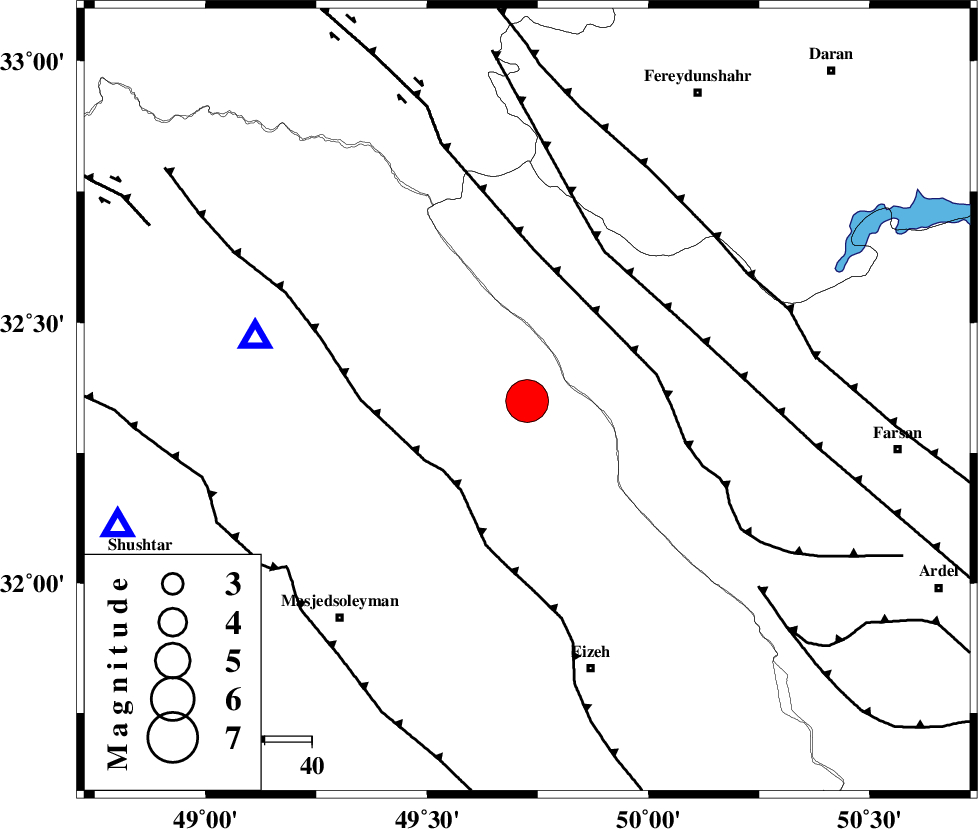

| Location | Lat:32.35 Lon: 49.726 |
| Region | Khoozestan Province, 39 km South-West of Chelgard |
Nearest Cities |
|
| 17 km North East of Paabshalal, Khoozestan Province | |
| 31 km North East of Qale-yekhvaju, Khoozestan Province | |
| 39 km South West of Chelgard, Chaharmahal Bakhtiari Province | |
| 40 km North of Torshak, Khoozestan Province | |
| 40 km South West of Durak, Chaharmahal Bakhtiari Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 23 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 28 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 36 km | |
| Number of Phases | 39 |
| RMS | 0.6 |
| Number of Stations | 39 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 1.4 km |
| Error in Depth | 3.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 165515 | IIEES SC | GTMR | Z | 800 | 1 | 2021-10-04 02:39:40 | 2021-10-04 04:28:00 | n |
| 165516 | IIEES SC | KLNJ | Z | 200 | 1 | 2021-10-04 02:40:05 | 2021-10-04 04:28:00 | n |
| 165517 | IIEES SC | KLNJ | Z | 200 | 1 | 2021-10-04 02:40:31 | 2021-10-04 04:28:00 | n |
| 165518 | IIEES SC | NASN | Z | 50 | 1 | 2021-10-04 02:40:13 | 2021-10-04 04:28:00 | n |
| 165519 | IIEES SC | NASN | Z | 50 | 1 | 2021-10-04 02:40:46 | 2021-10-04 04:28:00 | n |
| 165520 | IIEES SC | ILBA | Z | 50 | 1 | 2021-10-04 02:40:20 | 2021-10-04 04:28:00 | n |
| 165521 | IIEES SC | SNGE | Z | 60 | 1 | 2021-10-04 02:40:23 | 2021-10-04 04:28:00 | n |
| 165522 | IIEES SC | CHTH | Z | 30 | 1 | 2021-10-04 02:40:28 | 2021-10-04 04:28:00 | n |
| 165523 | IIEES SC | YZKH | Z | 40 | 1 | 2021-10-04 02:40:33 | 2021-10-04 04:28:00 | n |
| 165524 | IIEES SC | ANJ | Z | 6 | 1 | 2021-10-04 02:40:41 | 2021-10-04 04:28:00 | n |
| 165525 | IIEES SC | MAHB | Z | 20 | 1 | 2021-10-04 02:40:52 | 2021-10-04 04:28:00 | n |
| 165526 | IIEES SC | LMD1 | Z | 20 | 1 | 2021-10-04 02:40:55 | 2021-10-04 04:28:00 | n |
| 165527 | IIEES SC | TABS | Z | 10 | 1 | 2021-10-04 02:41:03 | 2021-10-04 04:28:00 | n |
| 165528 | IIEES SC | SHRO | Z | 8 | 1 | 2021-10-04 02:41:04 | 2021-10-04 04:28:00 | n |
| 165529 | IIEES SC | GRMI | Z | 5 | 1 | 2021-10-04 02:41:07 | 2021-10-04 04:28:00 | n |
| 165530 | IIEES SC | MRD | Z | 5 | 1 | 2021-10-04 02:41:15 | 2021-10-04 04:28:00 | n |
| 165531 | IIEES SC | MRVT | Z | 3 | 1 | 2021-10-04 02:41:19 | 2021-10-04 04:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | EPg | E | 2021-10-04 02:39:40 | 0.4 | y | 0 | 59 | 283 | ||
| IIEES SC | KHMZ | Z | EPg | E | 2021-10-04 02:39:52 | -2.4 | n | 4 | 156 | 8 | ||
| IIEES SC | KHMZ | Z | ESg | E | 2021-10-04 02:40:13 | 0.1 | n | 4 | 156 | 8 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2021-10-04 02:40:05 | 0 | y | 0 | 231 | 130 | ||
| IIEES SC | KLNJ | Z | ES | E | 2021-10-04 02:40:31 | -0.6 | y | 0 | 231 | 130 | ||
| IIEES SC | GHVR | Z | EPn | E | 2021-10-04 02:40:12 | 2.1 | n | 4 | 275 | 31 | ||
| IIEES SC | NASN | Z | EPn | E | 2021-10-04 02:40:13 | 0.3 | y | 0 | 294 | 80 | ||
| IIEES SC | NASN | Z | ES | E | 2021-10-04 02:40:46 | 0.7 | y | 0 | 294 | 80 | ||
| IIEES SC | KHRK | Z | EPn | E | 2021-10-04 02:40:20 | 0.6 | y | 0 | 348 | 171 | ||
| IIEES SC | ILBA | Z | EPn | E | 2021-10-04 02:40:20 | -0.7 | y | 0 | 358 | 293 | ||
| IIEES SC | SNGE | Z | EPn | E | 2021-10-04 02:40:23 | 0.1 | y | 0 | 376 | 324 | ||
| IIEES SC | AHRM | Z | EPn | E | 2021-10-04 02:40:28 | 0.7 | y | 0 | 409 | 161 | ||
| IIEES SC | CHTH | Z | EPn | E | 2021-10-04 02:40:28 | 0.5 | y | 0 | 415 | 18 | ||
| IIEES SC | GZV | Z | EPn | E | 2021-10-04 02:40:32 | -0.1 | y | 0 | 450 | 6 | ||
| IIEES SC | YZKH | Z | EPn | E | 2021-10-04 02:40:33 | -0.4 | y | 0 | 458 | 89 | ||
| IIEES SC | MEH | Z | EPn | E | 2021-10-04 02:40:35 | -0.4 | y | 0 | 474 | 103 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2021-10-04 02:40:35 | -2.2 | n | 4 | 489 | 349 | ||
| IIEES SC | GIDE | Z | EPn | E | 2021-10-04 02:40:40 | 0.4 | y | 0 | 507 | 1 | ||
| IIEES SC | ANJ | Z | EPn | E | 2021-10-04 02:40:41 | -0.1 | y | 0 | 519 | 48 | ||
| IIEES SC | GHIR | Z | EPn | E | 2021-10-04 02:40:42 | -2.6 | n | 4 | 549 | 145 | ||
| IIEES SC | SRSL | Z | EPn | E | 2021-10-04 02:40:51 | 2.2 | n | 4 | 583 | 317 | ||
| IIEES SC | GLO | Z | EPn | E | 2021-10-04 02:40:51 | 0.9 | y | 0 | 595 | 39 | ||
| IIEES SC | MAHB | Z | EPn | E | 2021-10-04 02:40:52 | -0.5 | y | 0 | 613 | 323 | ||
| IIEES SC | LMD1 | Z | EPn | E | 2021-10-04 02:40:55 | -1 | y | 0 | 647 | 149 | ||
| IIEES SC | ABGH | Z | EPn | E | 2021-10-04 02:41:00 | 0.4 | y | 0 | 673 | 44 | ||
| IIEES SC | TABS | Z | EPn | E | 2021-10-04 02:41:03 | -0.5 | y | 0 | 706 | 78 | ||
| IIEES SC | SHRO | Z | EPn | E | 2021-10-04 02:41:04 | -0.2 | y | 0 | 708 | 55 | ||
| IIEES SC | KRBR | Z | EPn | E | 2021-10-04 02:41:03 | -2.7 | n | 4 | 720 | 111 | ||
| IIEES SC | GRMI | Z | EPn | E | 2021-10-04 02:41:07 | -0.3 | y | 0 | 736 | 347 | ||
| IIEES SC | MRD | Z | EPn | E | 2021-10-04 02:41:15 | -0.2 | y | 0 | 795 | 333 | ||
| IIEES SC | MRVT | Z | EPn | E | 2021-10-04 02:41:19 | -0.4 | y | 0 | 827 | 45 | ||
| IIEES SC | BNDS | Z | EPn | E | 2021-10-04 02:41:16 | -3.7 | n | 4 | 830 | 131 | ||
| IIEES SC | MAKU | Z | EPn | E | 2021-10-04 02:41:28 | -0.4 | y | 0 | 901 | 330 | ||
| IIEES SC | SHRT | Z | EPn | E | 2021-10-04 02:41:40 | -0.5 | y | 0 | 998 | 82 | ||
| IIEES SC | JSSH | Z | EPn | E | 2021-10-04 02:41:41 | -3.4 | n | 4 | 1032 | 134 | ||
| IIEES SC | TBJM | Z | EPn | E | 2021-10-04 02:41:44 | -0.8 | y | 0 | 1034 | 72 | ||
| IIEES SC | KAGH | Z | EPn | E | 2021-10-04 02:41:49 | -0.3 | y | 0 | 1067 | 62 | ||
| IIEES SC | ZHSF | Z | EPn | E | 2021-10-04 02:41:51 | -1.6 | n | 4 | 1098 | 106 | ||
| IIEES SC | CHBR | Z | EPn | E | 2021-10-04 02:42:10 | -5.7 | n | 4 | 1288 | 126 | ||
