Magnitude |
:5 |
| Date & Time (UTC) | 2021-10-08 23:16:26.9 |
| Date & Time (Local) | 1400/7/17 02:46:26.9 |

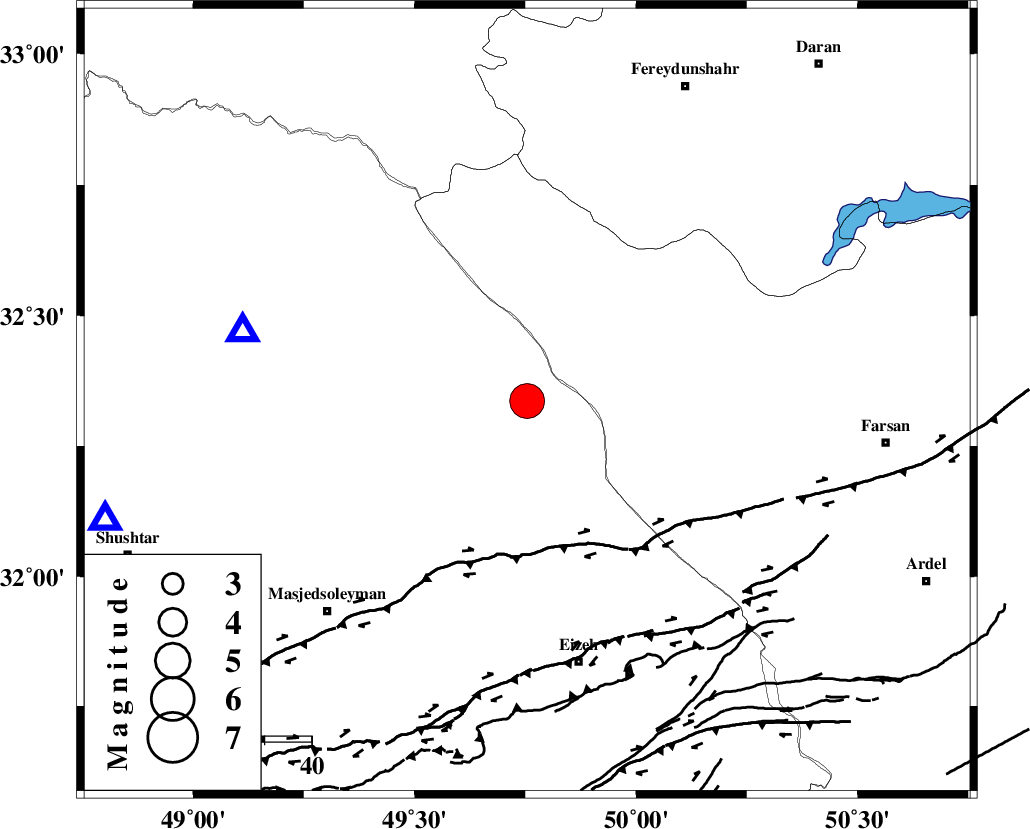

| Location | Lat:32.337 Lon: 49.754 |
| Region | Khoozestan Province, 37 km South-West of Chelgard |
Nearest Cities |
|
| 19 km North East of Paabshalal, Khoozestan Province | |
| 33 km North East of Qale-yekhvaju, Khoozestan Province | |
| 37 km South West of Chelgard, Chaharmahal Bakhtiari Province | |
| 38 km North of Torshak, Khoozestan Province | |
| 41 km South West of Durak, Chaharmahal Bakhtiari Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 24 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 26 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 36 km | |
| Number of Phases | 34 |
| RMS | 0.9 |
| Number of Stations | 34 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 2.2 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 165593 | IIEES SC | GTMR | Z | 200 | 1 | 2021-10-08 23:16:37 | 2021-10-09 06:59:00 | n |
| 165594 | IIEES SC | GTMR | Z | 200 | 1 | 2021-10-08 23:16:46 | 2021-10-09 06:59:00 | n |
| 165595 | IIEES SC | KHMZ | Z | 30 | 1 | 2021-10-08 23:16:51 | 2021-10-09 06:59:00 | n |
| 165596 | IIEES SC | KLNJ | Z | 20 | 1 | 2021-10-08 23:17:04 | 2021-10-09 06:59:00 | n |
| 165597 | IIEES SC | GHVR | Z | 10 | 1 | 2021-10-08 23:17:10 | 2021-10-09 06:59:00 | n |
| 165598 | IIEES SC | NASN | Z | 8 | 1 | 2021-10-08 23:17:12 | 2021-10-09 06:59:00 | n |
| 165599 | IIEES SC | ILBA | Z | 4 | 1 | 2021-10-08 23:17:18 | 2021-10-09 06:59:00 | n |
| 165600 | IIEES SC | SNGE | Z | 4 | 1 | 2021-10-08 23:17:21 | 2021-10-09 06:59:00 | n |
| 165601 | IIEES SC | AHRM | Z | 1 | 1 | 2021-10-08 23:17:26 | 2021-10-09 06:59:00 | n |
| 165602 | IIEES SC | CHTH | Z | 2 | 1 | 2021-10-08 23:17:27 | 2021-10-09 06:59:00 | n |
| 165603 | IIEES SC | GZV | Z | 4 | 1 | 2021-10-08 23:17:31 | 2021-10-09 06:59:00 | n |
| 165604 | IIEES SC | YZKH | Z | 3 | 1 | 2021-10-08 23:17:31 | 2021-10-09 06:59:00 | n |
| 165605 | IIEES SC | GIDE | Z | 3 | 1 | 2021-10-08 23:17:39 | 2021-10-09 06:59:00 | n |
| 165606 | IIEES SC | SRSL | Z | 2 | 1 | 2021-10-08 23:17:46 | 2021-10-09 06:59:00 | n |
| 165607 | IIEES SC | MAHB | Z | 1 | 1 | 2021-10-08 23:17:50 | 2021-10-09 06:59:00 | n |
| 165608 | IIEES SC | TABS | Z | 0.9 | 1 | 2021-10-08 23:18:02 | 2021-10-09 06:59:00 | n |
| 165609 | IIEES SC | SHRO | Z | 0.6 | 1 | 2021-10-08 23:18:02 | 2021-10-09 06:59:00 | n |
| 165610 | IIEES SC | KRBR | Z | 0.9 | 1 | 2021-10-08 23:18:02 | 2021-10-09 06:59:00 | n |
| 165611 | IIEES SC | GRMI | Z | 0.4 | 1 | 2021-10-08 23:18:05 | 2021-10-09 06:59:00 | n |
| 165612 | IIEES SC | MRD | Z | 0.3 | 1 | 2021-10-08 23:18:14 | 2021-10-09 06:59:00 | n |
| 165613 | IIEES SC | MRVT | Z | 0.3 | 1 | 2021-10-08 23:18:17 | 2021-10-09 06:59:00 | n |
| 165614 | IIEES SC | BNDS | Z | 0.6 | 1 | 2021-10-08 23:18:15 | 2021-10-09 06:59:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | EPg | E | 2021-10-08 23:16:37 | 0 | y | 0 | 62 | 284 | ||
| IIEES SC | GTMR | Z | ESg | E | 2021-10-08 23:16:46 | 0.8 | y | 0 | 62 | 284 | ||
| IIEES SC | KHMZ | Z | EPg | E | 2021-10-08 23:16:51 | -1.4 | y | 0 | 157 | 7 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2021-10-08 23:17:04 | 0.5 | y | 0 | 228 | 130 | ||
| IIEES SC | GHVR | Z | EPn | E | 2021-10-08 23:17:10 | 1.6 | y | 0 | 275 | 30 | ||
| IIEES SC | NASN | Z | EPn | E | 2021-10-08 23:17:12 | 0.8 | y | 0 | 291 | 80 | ||
| IIEES SC | KHRK | Z | EPn | E | 2021-10-08 23:17:18 | 0.9 | y | 0 | 346 | 171 | ||
| IIEES SC | ILBA | Z | EPn | E | 2021-10-08 23:17:18 | -1.4 | y | 0 | 361 | 293 | ||
| IIEES SC | SNGE | Z | EPn | E | 2021-10-08 23:17:21 | -0.7 | y | 0 | 378 | 324 | ||
| IIEES SC | AHRM | Z | EPn | E | 2021-10-08 23:17:26 | 1 | y | 0 | 407 | 161 | ||
| IIEES SC | CHTH | Z | EPn | E | 2021-10-08 23:17:27 | 0.2 | y | 0 | 416 | 18 | ||
| IIEES SC | GZV | Z | EPn | E | 2021-10-08 23:17:31 | 0.2 | y | 0 | 451 | 5 | ||
| IIEES SC | YZKH | Z | EPn | E | 2021-10-08 23:17:31 | 0.1 | y | 0 | 455 | 89 | ||
| IIEES SC | MEH | Z | EPn | E | 2021-10-08 23:17:33 | -0.1 | y | 0 | 472 | 103 | ||
| IIEES SC | GIDE | Z | EPn | E | 2021-10-08 23:17:39 | 0.7 | y | 0 | 509 | 1 | ||
| IIEES SC | GHIR | Z | EPn | E | 2021-10-08 23:17:42 | -0.7 | y | 0 | 546 | 145 | ||
| IIEES SC | SRSL | Z | EPn | E | 2021-10-08 23:17:46 | -1.2 | y | 0 | 586 | 317 | ||
| IIEES SC | GLO | Z | EPn | E | 2021-10-08 23:17:50 | 1.5 | y | 0 | 595 | 39 | ||
| IIEES SC | MAHB | Z | EPn | E | 2021-10-08 23:17:50 | -1.5 | y | 0 | 616 | 323 | ||
| IIEES SC | LMD1 | Z | EPn | E | 2021-10-08 23:17:55 | 0.4 | y | 0 | 645 | 149 | ||
| IIEES SC | ABGH | Z | EPn | E | 2021-10-08 23:17:59 | 1 | y | 0 | 673 | 44 | ||
| IIEES SC | TABS | Z | EPn | E | 2021-10-08 23:18:02 | -0.1 | y | 0 | 704 | 78 | ||
| IIEES SC | SHRO | Z | EPn | E | 2021-10-08 23:18:02 | -0.1 | y | 0 | 706 | 55 | ||
| IIEES SC | KRBR | Z | EPn | E | 2021-10-08 23:18:02 | -1.8 | y | 0 | 717 | 111 | ||
| IIEES SC | GRMI | Z | EPn | E | 2021-10-08 23:18:05 | -0.8 | y | 0 | 737 | 347 | ||
| IIEES SC | MRD | Z | EPn | E | 2021-10-08 23:18:14 | 0.6 | y | 0 | 797 | 333 | ||
| IIEES SC | MRVT | Z | EPn | E | 2021-10-08 23:18:17 | -0.4 | y | 0 | 826 | 44 | ||
| IIEES SC | BNDS | Z | EPn | E | 2021-10-08 23:18:15 | -1.9 | y | 0 | 827 | 131 | ||
| IIEES SC | MAKU | Z | EPn | E | 2021-10-08 23:18:27 | -0.2 | y | 0 | 903 | 330 | ||
| IIEES SC | SHRT | Z | EPn | E | 2021-10-08 23:18:38 | 0.1 | y | 0 | 996 | 82 | ||
| IIEES SC | TBJM | Z | EPn | E | 2021-10-08 23:18:43 | -0.2 | y | 0 | 1032 | 72 | ||
| IIEES SC | KAGH | Z | EPn | E | 2021-10-08 23:18:47 | 0.3 | y | 0 | 1066 | 61 | ||
| IIEES SC | ZHSF | Z | EPn | E | 2021-10-08 23:18:51 | 0.3 | y | 0 | 1095 | 106 | ||
| IIEES SC | SRVN | Z | EPn | E | 2021-10-08 23:19:20 | -1.2 | y | 0 | 1338 | 114 | ||
