Magnitude |
:4 |
| Date & Time (UTC) | 2021-10-07 17:31:15.2 |
| Date & Time (Local) | 1400/7/15 21:01:15.2 |
| Location | Lat:32.367 Lon: 49.729 |
| Region | Khoozestan Province, 38 km -West of Chelgard |
Nearest Cities |
|
| 18 km North East of Paabshalal, Khoozestan Province | |
| 32 km North East of Qale-yekhvaju, Khoozestan Province | |
| 38 km West of Chelgard, Chaharmahal Bakhtiari Province | |
| 38 km South West of Durak, Chaharmahal Bakhtiari Province | |
| 42 km North of Torshak, Khoozestan Province | |
| Depth | 10 km |
| Agency | |

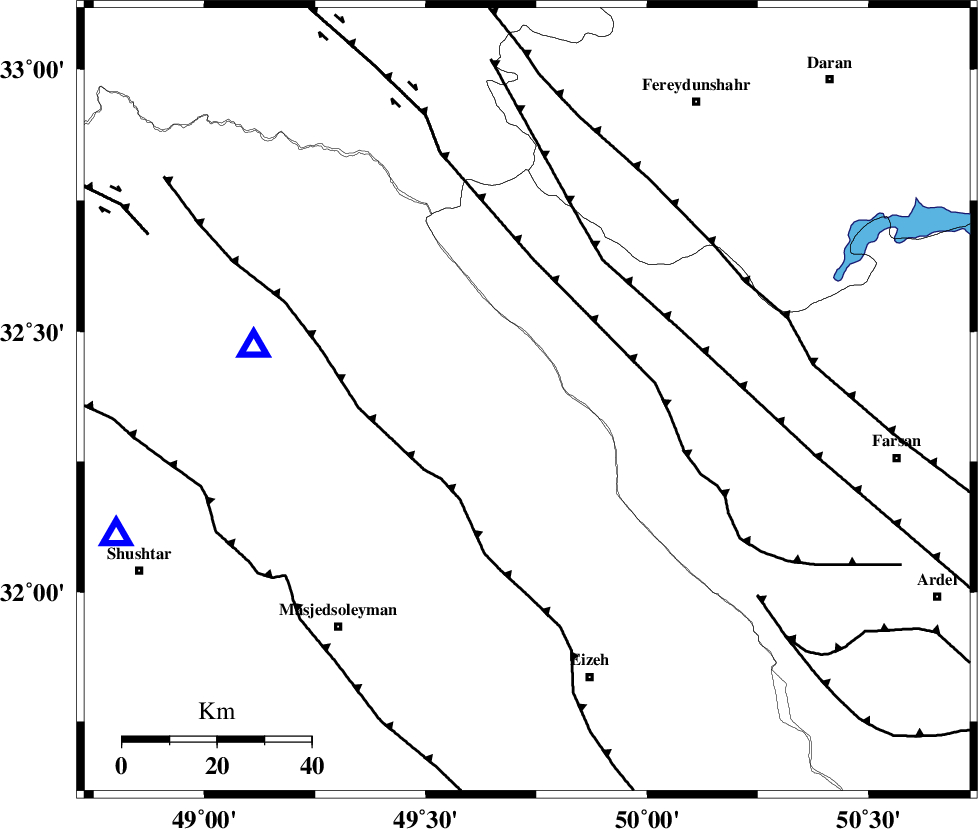

Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 25 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 27 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 34 km | |
| Number of Phases | 23 |
| RMS | 0.4 |
| Number of Stations | 23 |
| Error in Latitude | >1.3 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 3.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 165615 | IIEES SC | GTMR | Z | 20 | 1 | 2021-10-07 17:31:25 | 2021-10-09 09:37:00 | n |
| 165616 | IIEES SC | KLNJ | Z | 2 | 1 | 2021-10-07 17:31:52 | 2021-10-09 09:37:00 | n |
| 165617 | IIEES SC | GHVR | Z | 2 | 1 | 2021-10-07 17:31:57 | 2021-10-09 09:37:00 | n |
| 165618 | IIEES SC | NASN | Z | 0.7 | 1 | 2021-10-07 17:32:00 | 2021-10-09 09:37:00 | n |
| 165619 | IIEES SC | KHRK | Z | 1 | 1 | 2021-10-07 17:32:07 | 2021-10-09 09:37:00 | n |
| 165620 | IIEES SC | ILBA | Z | 0.5 | 1 | 2021-10-07 17:32:06 | 2021-10-09 09:37:00 | n |
| 165621 | IIEES SC | SNGE | Z | 0.5 | 1 | 2021-10-07 17:32:09 | 2021-10-09 09:37:00 | n |
| 165622 | IIEES SC | CHTH | Z | 0.3 | 1 | 2021-10-07 17:32:15 | 2021-10-09 09:37:00 | n |
| 165623 | IIEES SC | GZV | Z | 0.6 | 1 | 2021-10-07 17:32:19 | 2021-10-09 09:37:00 | n |
| 165624 | IIEES SC | YZKH | Z | 0.3 | 1 | 2021-10-07 17:32:20 | 2021-10-09 09:37:00 | n |
| 165625 | IIEES SC | ZNJK | Z | 0.06 | 1 | 2021-10-07 17:32:23 | 2021-10-09 09:37:00 | n |
| 165626 | IIEES SC | ANJ | Z | 0.05 | 1 | 2021-10-07 17:32:28 | 2021-10-09 09:37:00 | n |
| 165627 | IIEES SC | TABS | Z | 0.08 | 1 | 2021-10-07 17:32:50 | 2021-10-09 09:37:00 | n |
| 165628 | IIEES SC | SHRO | Z | 0.06 | 1 | 2021-10-07 17:32:50 | 2021-10-09 09:37:00 | n |
| 165629 | IIEES SC | KRBR | Z | 0.06 | 1 | 2021-10-07 17:32:53 | 2021-10-09 09:37:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | EPg | E | 2021-10-07 17:31:25 | 0.1 | y | 0 | 59 | 281 | ||
| IIEES SC | KHMZ | Z | EPg | E | 2021-10-07 17:31:39 | -1.5 | n | 4 | 154 | 8 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2021-10-07 17:31:52 | -0.3 | y | 0 | 232 | 130 | ||
| IIEES SC | GHVR | Z | EPn | E | 2021-10-07 17:31:57 | -0.1 | y | 0 | 274 | 31 | ||
| IIEES SC | NASN | Z | EPn | E | 2021-10-07 17:32:00 | 0.2 | y | 0 | 293 | 81 | ||
| IIEES SC | KHRK | Z | EPn | E | 2021-10-07 17:32:07 | 0.4 | y | 0 | 350 | 171 | ||
| IIEES SC | ILBA | Z | EPn | E | 2021-10-07 17:32:06 | -1.3 | y | 0 | 358 | 293 | ||
| IIEES SC | QABG | Z | EPn | E | 2021-10-07 17:32:09 | -0.2 | y | 0 | 371 | 358 | ||
| IIEES SC | SNGE | Z | EPn | E | 2021-10-07 17:32:09 | -0.3 | y | 0 | 374 | 324 | ||
| IIEES SC | AHRM | Z | EPn | E | 2021-10-07 17:32:14 | -0.1 | y | 0 | 411 | 161 | ||
| IIEES SC | CHTH | Z | EPn | E | 2021-10-07 17:32:15 | 0.5 | y | 0 | 413 | 18 | ||
| IIEES SC | GZV | Z | EPn | E | 2021-10-07 17:32:19 | 0.2 | y | 0 | 448 | 6 | ||
| IIEES SC | YZKH | Z | EPn | E | 2021-10-07 17:32:20 | 0.5 | y | 0 | 458 | 90 | ||
| IIEES SC | MEH | Z | EPn | E | 2021-10-07 17:32:22 | -0.3 | y | 0 | 475 | 103 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2021-10-07 17:32:23 | -0.1 | y | 0 | 487 | 349 | ||
| IIEES SC | GIDE | Z | EPn | E | 2021-10-07 17:32:26 | 0 | y | 0 | 506 | 1 | ||
| IIEES SC | ANJ | Z | EPn | E | 2021-10-07 17:32:28 | 0.1 | y | 0 | 518 | 48 | ||
| IIEES SC | GHIR | Z | EPn | E | 2021-10-07 17:32:31 | -0.7 | y | 0 | 550 | 145 | ||
| IIEES SC | GLO | Z | EPn | E | 2021-10-07 17:32:37 | 0.6 | y | 0 | 594 | 39 | ||
| IIEES SC | ABGH | Z | EPn | E | 2021-10-07 17:32:46 | 0.1 | y | 0 | 672 | 44 | ||
| IIEES SC | TABS | Z | EPn | E | 2021-10-07 17:32:50 | -0.1 | y | 0 | 705 | 78 | ||
| IIEES SC | SHRO | Z | EPn | E | 2021-10-07 17:32:50 | -0.6 | y | 0 | 706 | 55 | ||
| IIEES SC | KRBR | Z | EPn | E | 2021-10-07 17:32:53 | 0.5 | y | 0 | 721 | 112 | ||
