Magnitude |
:3.2 |
| Date & Time (UTC) | 2021-10-09 04:50:41.3 |
| Date & Time (Local) | 1400/7/17 08:20:41.3 |

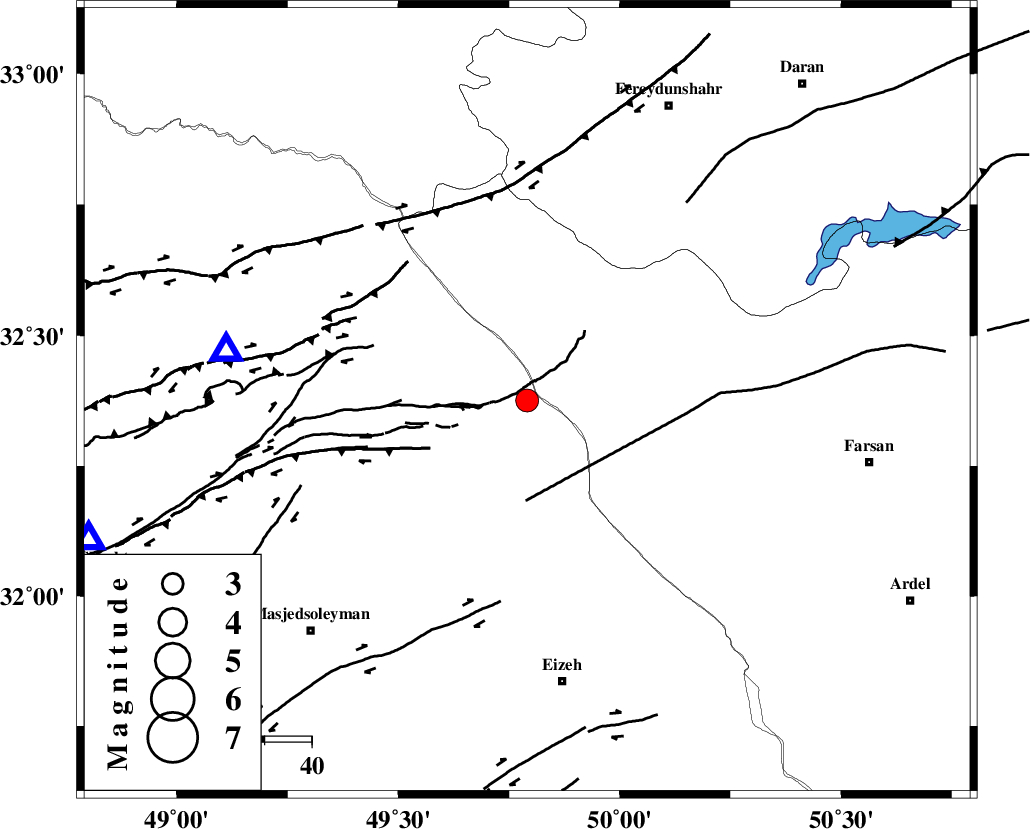

| Location | Lat:32.375 Lon: 49.791 |
| Region | Khoozestan Province, 32 km -West of Chelgard |
Nearest Cities |
|
| 24 km North East of Paabshalal, Khoozestan Province | |
| 32 km West of Chelgard, Chaharmahal Bakhtiari Province | |
| 36 km South of Durak, Chaharmahal Bakhtiari Province | |
| 38 km North East of Qale-yekhvaju, Khoozestan Province | |
| 42 km North of Torshak, Khoozestan Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 22 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 30 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 31 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 11 |
| Error in Latitude | >2 km |
| Error in Longitude | 2 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 165640 | IIEES SC | GTMR | Z | 3 | 1 | 2021-10-09 04:50:52 | 2021-10-09 09:47:00 | n |
| 165641 | IIEES SC | KHMZ | Z | 0.7 | 1 | 2021-10-09 04:51:07 | 2021-10-09 09:47:00 | n |
| 165642 | IIEES SC | NASN | Z | 0.1 | 1 | 2021-10-09 04:51:26 | 2021-10-09 09:47:00 | n |
| 165643 | IIEES SC | ILBA | Z | 0.08 | 1 | 2021-10-09 04:51:35 | 2021-10-09 09:47:00 | n |
| 165644 | IIEES SC | SNGE | Z | 0.1 | 1 | 2021-10-09 04:51:36 | 2021-10-09 09:47:00 | n |
| 165645 | IIEES SC | CHTH | Z | 0.04 | 1 | 2021-10-09 04:51:40 | 2021-10-09 09:47:00 | n |
| 165646 | IIEES SC | YZKH | Z | 0.04 | 1 | 2021-10-09 04:51:46 | 2021-10-09 09:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | EPg | E | 2021-10-09 04:50:52 | 0 | y | 0 | 65 | 279 | ||
| IIEES SC | KHMZ | Z | EPg | E | 2021-10-09 04:51:07 | 0.3 | y | 0 | 152 | 6 | ||
| IIEES SC | GHVR | Z | EPn | E | 2021-10-09 04:51:23 | -0.1 | y | 0 | 270 | 30 | ||
| IIEES SC | NASN | Z | EPn | E | 2021-10-09 04:51:26 | 0.9 | y | 0 | 287 | 81 | ||
| IIEES SC | ILBA | Z | EPn | E | 2021-10-09 04:51:35 | 0.3 | y | 0 | 362 | 292 | ||
| IIEES SC | QABG | Z | EPn | E | 2021-10-09 04:51:36 | 0.5 | y | 0 | 370 | 357 | ||
| IIEES SC | SNGE | Z | EPn | E | 2021-10-09 04:51:36 | -0.3 | y | 0 | 377 | 323 | ||
| IIEES SC | CHTH | Z | EPn | E | 2021-10-09 04:51:40 | -0.4 | y | 0 | 411 | 17 | ||
| IIEES SC | GZV | Z | EPn | E | 2021-10-09 04:51:45 | -0.5 | y | 0 | 447 | 5 | ||
| IIEES SC | YZKH | Z | EPn | E | 2021-10-09 04:51:46 | -0.1 | y | 0 | 452 | 90 | ||
| IIEES SC | MEH | Z | EPn | E | 2021-10-09 04:51:48 | -0.1 | y | 0 | 469 | 103 | ||
