Magnitude |
:3.4 |
| Date & Time (UTC) | 2021-10-15 23:16:20.1 |
| Date & Time (Local) | 1400/7/24 02:46:20.1 |

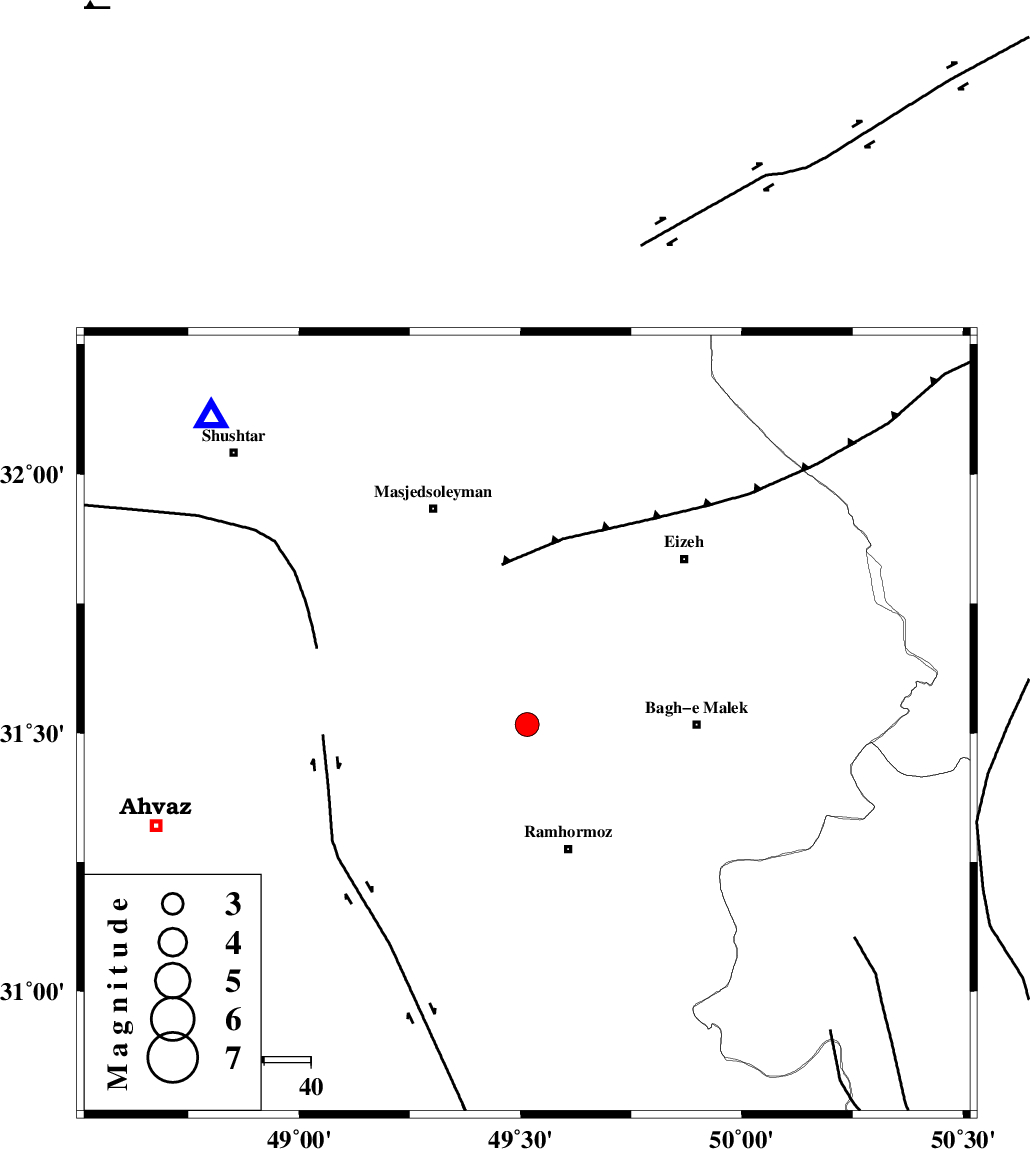

| Location | Lat:31.517 Lon: 49.515 |
| Region | Khoozestan Province, 28 km North of Ramhormoz |
Nearest Cities |
|
| 5 km of Jaru, Khoozestan Province | |
| 8 km North of Haftgol, Khoozestan Province | |
| 13 km East of Gazin, Khoozestan Province | |
| 20 km North West of Midavood-e sofla, Khoozestan Province | |
| 28 km North of Ramhormoz, Khoozestan Province | |
| Depth | 19 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 12 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 41 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 45 km | |
| Number of Phases | 11 |
| RMS | 0.1 |
| Number of Stations | 11 |
| Error in Latitude | >0.7 km |
| Error in Longitude | 0.7 km |
| Error in Depth | 2.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 165800 | IIEES SC | GTMR | Z | 1 | 1 | 2021-10-15 23:16:38 | 2021-10-16 05:52:00 | n |
| 165801 | IIEES SC | AHRM | Z | 0.07 | 1 | 2021-10-15 23:17:08 | 2021-10-16 05:52:00 | n |
| 165802 | IIEES SC | NASN | Z | 0.2 | 1 | 2021-10-15 23:17:10 | 2021-10-16 05:52:00 | n |
| 165803 | IIEES SC | ILBA | Z | 0.07 | 1 | 2021-10-15 23:17:15 | 2021-10-16 05:52:00 | n |
| 165804 | IIEES SC | SNGE | Z | 0.06 | 1 | 2021-10-15 23:17:23 | 2021-10-16 05:52:00 | n |
| 165805 | IIEES SC | YZKH | Z | 0.07 | 1 | 2021-10-15 23:17:28 | 2021-10-16 05:52:00 | n |
| 165806 | IIEES SC | CHTH | Z | 0.04 | 1 | 2021-10-15 23:17:31 | 2021-10-16 05:52:00 | n |
| 165807 | IIEES SC | SRSL | Z | 0.05 | 1 | 2021-10-15 23:17:47 | 2021-10-16 05:52:00 | n |
| 165808 | IIEES SC | TABS | Z | 0.02 | 1 | 2021-10-15 23:18:00 | 2021-10-16 05:52:00 | n |
| 165809 | IIEES SC | SHRO | Z | 0.01 | 1 | 2021-10-15 23:18:04 | 2021-10-16 05:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | EPg | E | 2021-10-15 23:16:38 | 0 | y | 0 | 112 | 340 | ||
| IIEES SC | AHRM | Z | EPn | E | 2021-10-15 23:17:08 | 0.1 | y | 0 | 333 | 152 | ||
| IIEES SC | NASN | Z | EPn | E | 2021-10-15 23:17:10 | 0.1 | y | 0 | 342 | 65 | ||
| IIEES SC | ILBA | Z | EPn | E | 2021-10-15 23:17:15 | 0 | y | 0 | 389 | 307 | ||
| IIEES SC | SNGE | Z | EPn | E | 2021-10-15 23:17:23 | 0.3 | y | 0 | 445 | 333 | ||
| IIEES SC | YZKH | Z | EPn | E | 2021-10-15 23:17:28 | -0.1 | y | 0 | 490 | 79 | ||
| IIEES SC | GHIR | Z | EPn | E | 2021-10-15 23:17:28 | -0.2 | y | 0 | 491 | 137 | ||
| IIEES SC | CHTH | Z | EPn | E | 2021-10-15 23:17:31 | 0.9 | y | 0 | 509 | 17 | ||
| IIEES SC | SRSL | Z | EPn | E | 2021-10-15 23:17:47 | -0.1 | y | 0 | 643 | 324 | ||
| IIEES SC | TABS | Z | EPn | E | 2021-10-15 23:18:00 | -0.1 | y | 0 | 752 | 72 | ||
| IIEES SC | SHRO | Z | EPn | E | 2021-10-15 23:18:04 | -0.4 | y | 0 | 781 | 50 | ||
