Magnitude |
:3.1 |
| Date & Time (UTC) | 2021-10-17 08:46:42.9 |
| Date & Time (Local) | 1400/7/25 12:16:42.9 |

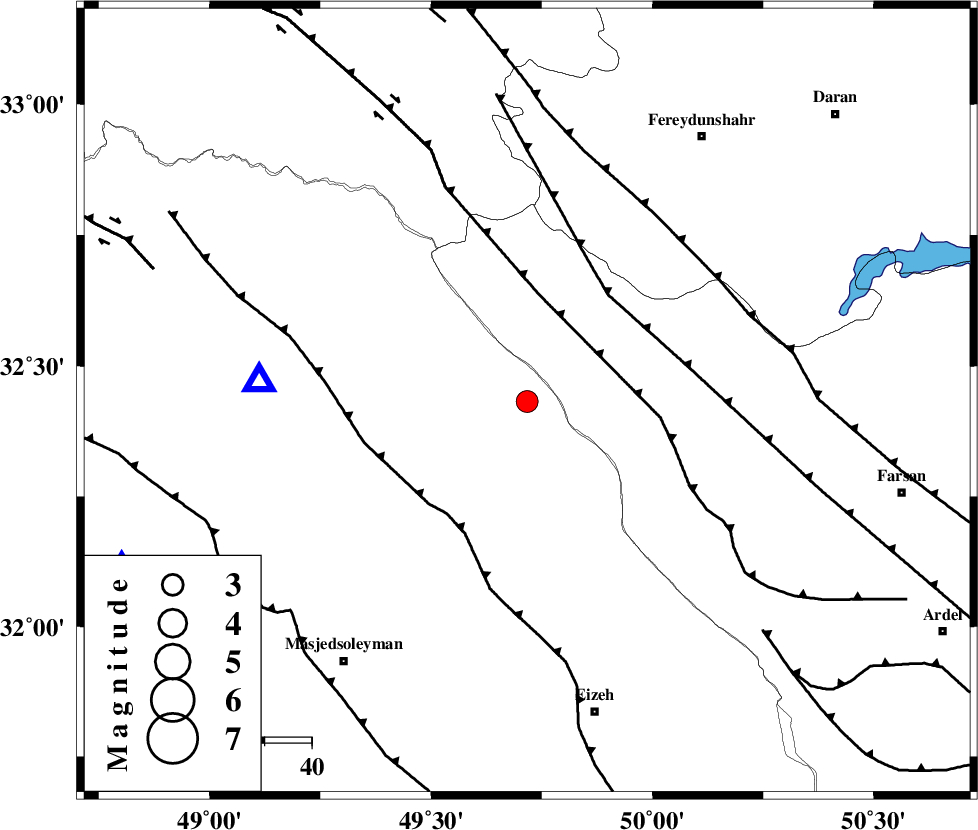

| Location | Lat:32.432 Lon: 49.717 |
| Region | Khoozestan Province, 38 km -West of Chelgard |
Nearest Cities |
|
| 21 km North East of Paabshalal, Khoozestan Province | |
| 32 km South West of Durak, Chaharmahal Bakhtiari Province | |
| 36 km North East of Qale-yekhvaju, Khoozestan Province | |
| 38 km West of Chelgard, Chaharmahal Bakhtiari Province | |
| 48 km South West of Masir, Esfahan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 23 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 28 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 29 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | >2 km |
| Error in Longitude | 2 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 165853 | IIEES SC | GTMR | Z | 4 | 1 | 2021-10-17 08:46:53 | 2021-10-18 05:47:00 | n |
| 165854 | IIEES SC | GHVR | Z | 0.2 | 1 | 2021-10-17 08:47:25 | 2021-10-18 05:47:00 | n |
| 165855 | IIEES SC | NASN | Z | 0.09 | 1 | 2021-10-17 08:47:27 | 2021-10-18 05:47:00 | n |
| 165856 | IIEES SC | ILBA | Z | 0.07 | 1 | 2021-10-17 08:47:34 | 2021-10-18 05:47:00 | n |
| 165857 | IIEES SC | SNGE | Z | 0.06 | 1 | 2021-10-17 08:47:36 | 2021-10-18 05:47:00 | n |
| 165858 | IIEES SC | CHTH | Z | 0.03 | 1 | 2021-10-17 08:47:41 | 2021-10-18 05:47:00 | n |
| 165859 | IIEES SC | AHRM | Z | 0.02 | 1 | 2021-10-17 08:47:43 | 2021-10-18 05:47:00 | n |
| 165860 | IIEES SC | YZKH | Z | 0.03 | 1 | 2021-10-17 08:47:47 | 2021-10-18 05:47:00 | n |
| 165861 | IIEES SC | SRSL | Z | 0.04 | 1 | 2021-10-17 08:48:02 | 2021-10-18 05:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | EPg | E | 2021-10-17 08:46:53 | 0 | y | 0 | 57 | 274 | ||
| IIEES SC | GHVR | Z | EPn | E | 2021-10-17 08:47:25 | 0.9 | y | 0 | 268 | 32 | ||
| IIEES SC | NASN | Z | EPn | E | 2021-10-17 08:47:27 | 0.2 | y | 0 | 293 | 82 | ||
| IIEES SC | ILBA | Z | EPn | E | 2021-10-17 08:47:34 | -0.2 | y | 0 | 354 | 292 | ||
| IIEES SC | SNGE | Z | EPn | E | 2021-10-17 08:47:36 | 0.2 | y | 0 | 368 | 323 | ||
| IIEES SC | CHTH | Z | EPn | E | 2021-10-17 08:47:41 | -0.2 | y | 0 | 407 | 19 | ||
| IIEES SC | AHRM | Z | EPn | E | 2021-10-17 08:47:43 | 0.3 | y | 0 | 418 | 161 | ||
| IIEES SC | YZKH | Z | EPn | E | 2021-10-17 08:47:47 | -0.8 | y | 0 | 459 | 91 | ||
| IIEES SC | GHIR | Z | EPn | E | 2021-10-17 08:48:00 | 0.1 | y | 0 | 557 | 146 | ||
| IIEES SC | SRSL | Z | EPn | E | 2021-10-17 08:48:02 | -0.2 | y | 0 | 576 | 317 | ||
