Magnitude |
:3.1 |
| Date & Time (UTC) | 2021-11-10 03:37:17.4 |
| Date & Time (Local) | 1400/8/19 07:07:17.4 |

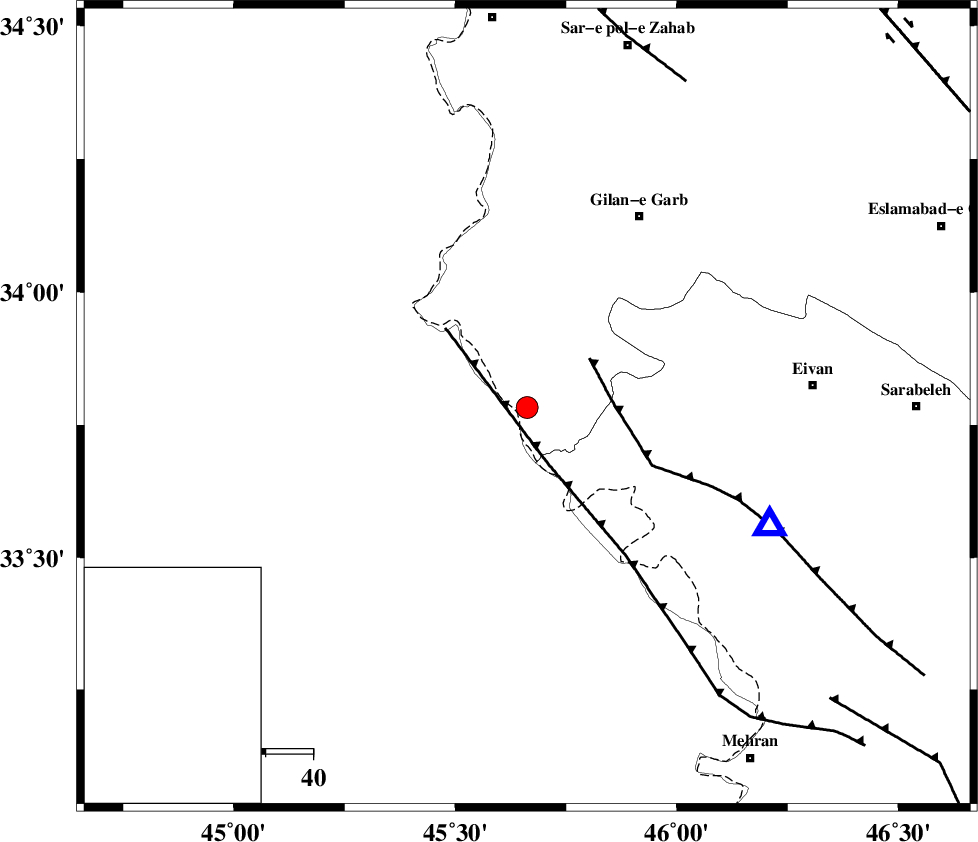

| Location | Lat:33.783 Lon: 45.662 |
| Region | Kermanshah Province, 46 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 11 km of Sumar, Kermanshah Province | |
| 39 km South West of Nian, Kermanshah Province | |
| 46 km South West of Gilan-E-Gharb, Kermanshah Province | |
| 46 km South West of Teran, Ilam Province | |
| 51 km South West of Zarneh, Ilam Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 12 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 17 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 76 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 166197 | IIEES SC | SNGE | Z | 0.3 | 1 | 2021-11-10 03:37:51 | 2021-11-13 06:20:00 | n |
| 166198 | IIEES SC | SRSL | Z | 0.2 | 1 | 2021-11-10 03:37:58 | 2021-11-13 06:20:00 | n |
| 166199 | IIEES SC | GTMR | Z | 0.05 | 1 | 2021-11-10 03:38:09 | 2021-11-13 06:20:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | EPg | E | 2021-11-10 03:37:26 | -0.1 | y | 0 | 54 | 109 | ||
| IIEES SC | SNGE | Z | EPn | E | 2021-11-10 03:37:51 | 0 | y | 0 | 212 | 47 | ||
| IIEES SC | SRSL | Z | EPn | E | 2021-11-10 03:37:58 | -0.3 | y | 0 | 270 | 356 | ||
| IIEES SC | MAHB | Z | EPn | E | 2021-11-10 03:38:06 | -0.1 | y | 0 | 331 | 1 | ||
| IIEES SC | GTMR | Z | EPn | E | 2021-11-10 03:38:09 | 0.1 | y | 0 | 353 | 114 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2021-11-10 03:38:15 | 0 | y | 0 | 399 | 91 | ||
| IIEES SC | QABG | Z | EPn | E | 2021-11-10 03:38:17 | 0.1 | y | 0 | 418 | 59 | ||
| IIEES SC | AZR | Z | EPn | E | 2021-11-10 03:38:20 | 0.8 | y | 0 | 433 | 4 | ||
