Magnitude |
:3.1 |
| Date & Time (UTC) | 2021-11-12 00:54:28.7 |
| Date & Time (Local) | 1400/8/21 04:24:28.7 |
| Location | Lat:32.361 Lon: 49.349 |
| Region | Khoozestan Province, 23 km -East of Lali |
Nearest Cities |
|
| 19 km North of Qale-yekhvaju, Khoozestan Province | |
| 21 km North West of Paabshalal, Khoozestan Province | |
| 23 km East of Lali, Khoozestan Province | |
| 23 km North East of Jaefarabad, Khoozestan Province | |
| 37 km North East of Haft shahidan, Khoozestan Province | |
| Depth | 19 km |
| Agency | |

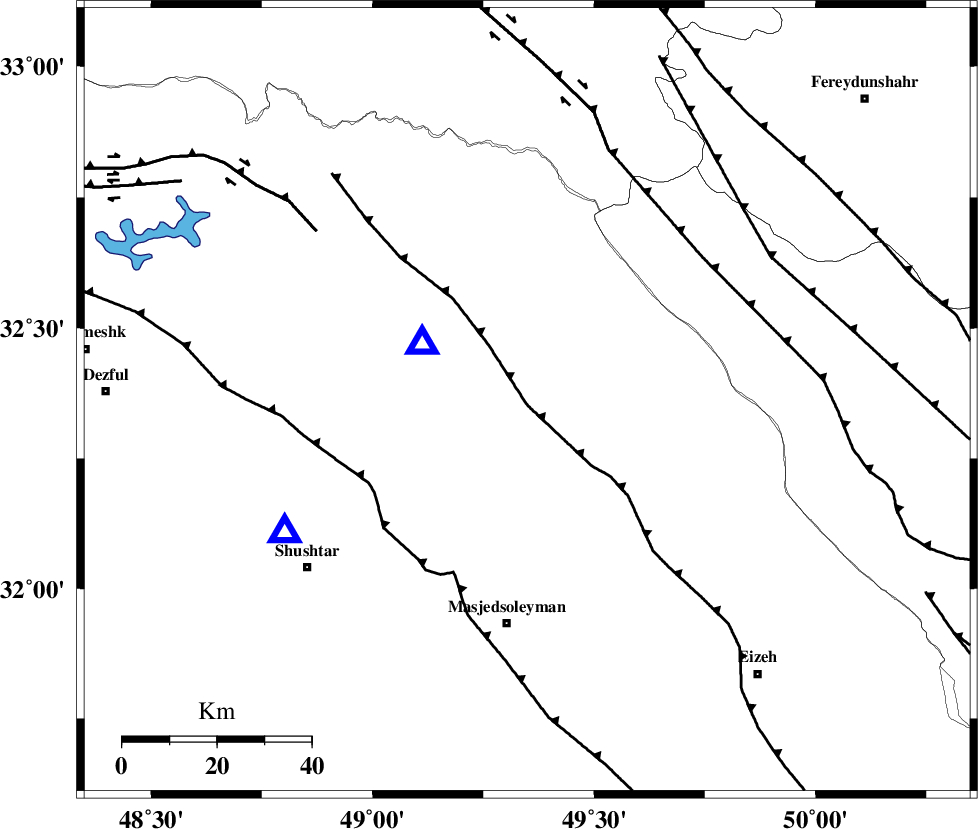

Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 1 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 38 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 48 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 14 |
| Error in Latitude | >1.8 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 2.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 166220 | IIEES SC | GTMR | Z | 7 | 1 | 2021-11-12 00:54:34 | 2021-11-13 07:15:00 | n |
| 166221 | IIEES SC | KHMZ | Z | 0.5 | 1 | 2021-11-12 00:54:54 | 2021-11-13 07:15:00 | n |
| 166222 | IIEES SC | ASAO | Z | 0.2 | 1 | 2021-11-12 00:55:08 | 2021-11-13 07:15:00 | n |
| 166223 | IIEES SC | KLNJ | Z | 0.3 | 1 | 2021-11-12 00:55:08 | 2021-11-13 07:15:00 | n |
| 166224 | IIEES SC | GHVR | Z | 0.3 | 1 | 2021-11-12 00:55:13 | 2021-11-13 07:15:00 | n |
| 166225 | IIEES SC | ILBA | Z | 0.1 | 1 | 2021-11-12 00:55:16 | 2021-11-13 07:15:00 | n |
| 166226 | IIEES SC | NASN | Z | 0.09 | 1 | 2021-11-12 00:55:17 | 2021-11-13 07:15:00 | n |
| 166227 | IIEES SC | AHRM | Z | 0.02 | 1 | 2021-11-12 00:55:28 | 2021-11-13 07:15:00 | n |
| 166228 | IIEES SC | CHTH | Z | 0.04 | 1 | 2021-11-12 00:55:28 | 2021-11-13 07:15:00 | n |
| 166229 | IIEES SC | YZKH | Z | 0.03 | 1 | 2021-11-12 00:55:37 | 2021-11-13 07:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | EPg | E | 2021-11-12 00:54:34 | 0 | y | 0 | 25 | 299 | ||
| IIEES SC | KHMZ | Z | EPg | E | 2021-11-12 00:54:54 | -0.4 | y | 0 | 163 | 21 | ||
| IIEES SC | ASAO | Z | EPn | E | 2021-11-12 00:55:08 | 0.8 | y | 0 | 251 | 15 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2021-11-12 00:55:08 | 0 | y | 0 | 260 | 125 | ||
| IIEES SC | GHVR | Z | EPn | E | 2021-11-12 00:55:13 | 0.9 | y | 0 | 294 | 37 | ||
| IIEES SC | ILBA | Z | EPn | E | 2021-11-12 00:55:16 | -0.2 | y | 0 | 325 | 296 | ||
| IIEES SC | NASN | Z | EPn | E | 2021-11-12 00:55:17 | 0.1 | y | 0 | 328 | 81 | ||
| IIEES SC | AHRM | Z | EPn | E | 2021-11-12 00:55:28 | -0.1 | y | 0 | 424 | 156 | ||
| IIEES SC | CHTH | Z | EPn | E | 2021-11-12 00:55:28 | -0.5 | y | 0 | 426 | 23 | ||
| IIEES SC | GZV | Z | EPn | E | 2021-11-12 00:55:32 | -0.2 | y | 0 | 454 | 10 | ||
| IIEES SC | YZKH | Z | EPn | E | 2021-11-12 00:55:37 | -0.3 | y | 0 | 493 | 90 | ||
| IIEES SC | GIDE | Z | EPn | E | 2021-11-12 00:55:39 | 0.3 | y | 0 | 508 | 5 | ||
| IIEES SC | SRSL | Z | EPn | E | 2021-11-12 00:55:45 | -0.2 | y | 0 | 559 | 320 | ||
| IIEES SC | GHIR | Z | EPn | E | 2021-11-12 00:55:37 | -9.3 | n | 4 | 571 | 142 | ||
