Magnitude |
:3.8 |
| Date & Time (UTC) | 2021-11-20 18:44:27.2 |
| Date & Time (Local) | 1400/8/29 22:14:27.2 |

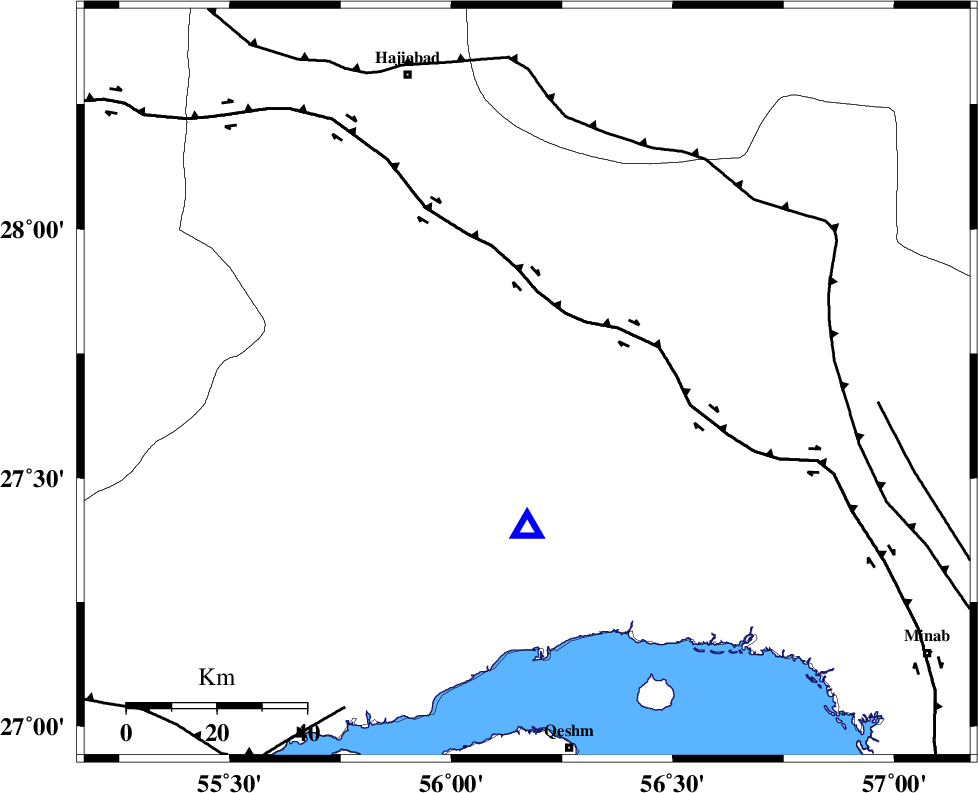

| Location | Lat:27.692 Lon: 56.171 |
| Region | Hormozgan Province, 58 km North-West of Bandar-e abbas |
Nearest Cities |
|
| 27 km North East of Fin, Hormozgan Province | |
| 37 km South of Fareqan, Hormozgan Province | |
| 58 km North West of Bandar-e abbas, Hormozgan Province | |
| 74 km South East of Hajiabad, Hormozgan Province | |
| 76 km South East of Darz, Fars Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 18 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 58 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 78 km | |
| Number of Phases | 16 |
| RMS | 0.3 |
| Number of Stations | 16 |
| Error in Latitude | >1.8 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 3.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 166710 | IIEES SC | BNDS | Z | 30 | 1 | 2021-11-20 18:44:33 | 2021-11-21 07:07:00 | n |
| 166711 | IIEES SC | KRBR | Z | 1 | 1 | 2021-11-20 18:45:08 | 2021-11-21 07:07:00 | n |
| 166712 | IIEES SC | LMD1 | Z | 1 | 1 | 2021-11-20 18:45:12 | 2021-11-21 07:07:00 | n |
| 166713 | IIEES SC | YZKH | Z | 0.1 | 1 | 2021-11-20 18:45:42 | 2021-11-21 07:07:00 | n |
| 166714 | IIEES SC | SRVN | Z | 0.03 | 1 | 2021-11-20 18:45:51 | 2021-11-21 07:07:00 | n |
| 166715 | IIEES SC | NASN | Z | 0.05 | 1 | 2021-11-20 18:45:55 | 2021-11-21 07:07:00 | n |
| 166716 | IIEES SC | TABS | Z | 0.08 | 1 | 2021-11-20 18:45:57 | 2021-11-21 07:07:00 | n |
| 166717 | IIEES SC | SHRT | Z | 0.03 | 1 | 2021-11-20 18:46:11 | 2021-11-21 07:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BNDS | Z | EPg | E | 2021-11-20 18:44:33 | 0 | y | 0 | 32 | 180 | ||
| IIEES SC | KRBR | Z | EPn | E | 2021-11-20 18:45:08 | 0.7 | y | 0 | 260 | 13 | ||
| IIEES SC | LMD1 | Z | EPn | E | 2021-11-20 18:45:12 | 0.1 | y | 0 | 300 | 263 | ||
| IIEES SC | GHIR | Z | EPn | E | 2021-11-20 18:45:14 | 0.2 | y | 0 | 320 | 282 | ||
| IIEES SC | YZKH | Z | EPn | E | 2021-11-20 18:45:42 | 0.4 | y | 0 | 543 | 344 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2021-11-20 18:45:46 | -0.7 | y | 0 | 577 | 310 | ||
| IIEES SC | SRVN | Z | EPn | E | 2021-11-20 18:45:51 | 0 | y | 0 | 616 | 93 | ||
| IIEES SC | NASN | Z | EPn | E | 2021-11-20 18:45:55 | -0.3 | y | 0 | 652 | 330 | ||
| IIEES SC | TABS | Z | EPn | E | 2021-11-20 18:45:57 | 0.1 | y | 0 | 667 | 8 | ||
| IIEES SC | SHRT | Z | EPn | E | 2021-11-20 18:46:11 | 1 | y | 0 | 769 | 31 | ||
| IIEES SC | GTMR | Z | EPn | E | 2021-11-20 18:46:20 | -1.6 | n | 4 | 862 | 308 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2021-11-20 18:46:25 | -0.9 | y | 0 | 896 | 318 | ||
| IIEES SC | TBJM | Z | EPn | E | 2021-11-20 18:46:30 | 0 | n | 4 | 928 | 25 | ||
| IIEES SC | ASAO | Z | EPn | E | 2021-11-20 18:46:33 | -0.4 | y | 0 | 960 | 322 | ||
| IIEES SC | GLO | Z | EPn | E | 2021-11-20 18:46:40 | 0.9 | y | 0 | 1002 | 347 | ||
| IIEES SC | CHTH | Z | EPn | E | 2021-11-20 18:46:42 | -0.7 | y | 0 | 1029 | 332 | ||
