Magnitude |
:3.5 |
| Date & Time (UTC) | 2021-12-02 18:06:32.3 |
| Date & Time (Local) | 1400/9/11 21:36:32.3 |

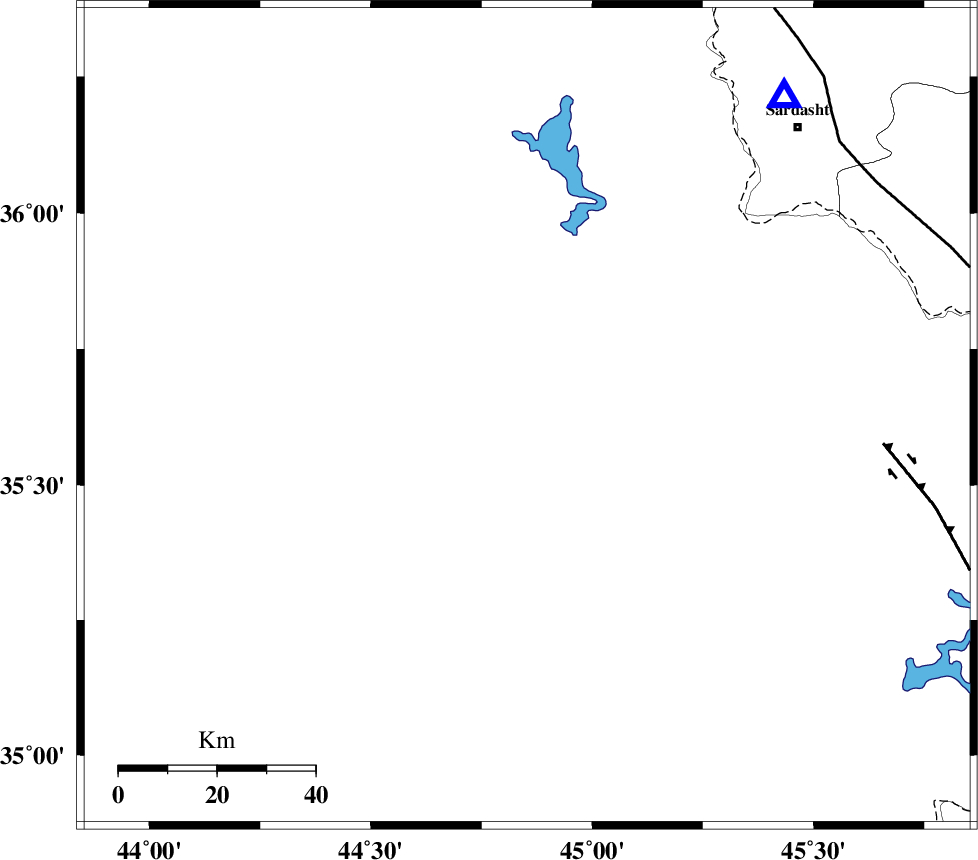

| Location | Lat:35.626 Lon: 44.853 |
| Region | Iraq, 54 km -West of Sulaymaniyah |
Nearest Cities |
|
| 54 km North West of Sulaymaniyah, Iraq Province | |
| 77 km South West of Bivaran-e sofla, Azarbaijan Gharbi Province | |
| 81 km South West of Sardasht, Azarbaijan Gharbi Province | |
| 85 km South West of Bersiv, Azarbaijan Gharbi Province | |
| 85 km South West of Bolhasan, Kurdistan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 73 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 85 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 126 km | |
| Number of Phases | 11 |
| RMS | 0.4 |
| Number of Stations | 11 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 10.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 167042 | IIEES SC | SRSL | Z | 2 | 1 | 2021-12-02 18:06:46 | 2021-12-04 06:08:00 | n |
| 167043 | IIEES SC | ILBA | Z | 0.2 | 1 | 2021-12-02 18:07:11 | 2021-12-04 06:08:00 | n |
| 167044 | IIEES SC | MRD | Z | 0.4 | 1 | 2021-12-02 18:07:24 | 2021-12-04 06:08:00 | n |
| 167045 | IIEES SC | GRMI | Z | 0.04 | 1 | 2021-12-02 18:07:36 | 2021-12-04 06:08:00 | n |
| 167046 | IIEES SC | GIDE | Z | 0.1 | 1 | 2021-12-02 18:07:38 | 2021-12-04 06:08:00 | n |
| 167047 | IIEES SC | GZV | Z | 0.07 | 1 | 2021-12-02 18:07:42 | 2021-12-04 06:08:00 | n |
| 167048 | IIEES SC | KHMZ | Z | 0.04 | 1 | 2021-12-02 18:07:45 | 2021-12-04 06:08:00 | n |
| 167049 | IIEES SC | GTMR | Z | 0.05 | 1 | 2021-12-02 18:07:45 | 2021-12-04 06:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SRSL | Z | EPg | E | 2021-12-02 18:06:46 | -0.6 | y | 0 | 84 | 39 | ||
| IIEES SC | AZR | Z | EPn | E | 2021-12-02 18:07:11 | -0.3 | y | 0 | 249 | 24 | ||
| IIEES SC | ILBA | Z | EPn | E | 2021-12-02 18:07:11 | -0.1 | y | 0 | 254 | 151 | ||
| IIEES SC | MRD | Z | EPn | E | 2021-12-02 18:07:24 | 0.1 | y | 0 | 351 | 12 | ||
| IIEES SC | MAKU | Z | EPn | E | 2021-12-02 18:07:32 | 0.4 | y | 0 | 414 | 358 | ||
| IIEES SC | QABG | Z | EPn | E | 2021-12-02 18:07:36 | 3.1 | n | 4 | 428 | 89 | ||
| IIEES SC | GRMI | Z | EPn | E | 2021-12-02 18:07:36 | 0.3 | y | 0 | 444 | 37 | ||
| IIEES SC | GIDE | Z | EPn | E | 2021-12-02 18:07:38 | -0.1 | y | 0 | 469 | 72 | ||
| IIEES SC | GZV | Z | EPn | E | 2021-12-02 18:07:42 | 0.4 | y | 0 | 491 | 80 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2021-12-02 18:07:45 | 0.7 | y | 0 | 513 | 114 | ||
| IIEES SC | GTMR | Z | EPn | E | 2021-12-02 18:07:45 | -0.8 | y | 0 | 526 | 132 | ||
