Magnitude |
:3.8 |
| Date & Time (UTC) | 2022-01-21 02:35:54.8 |
| Date & Time (Local) | 1400/11/1 06:05:54.8 |

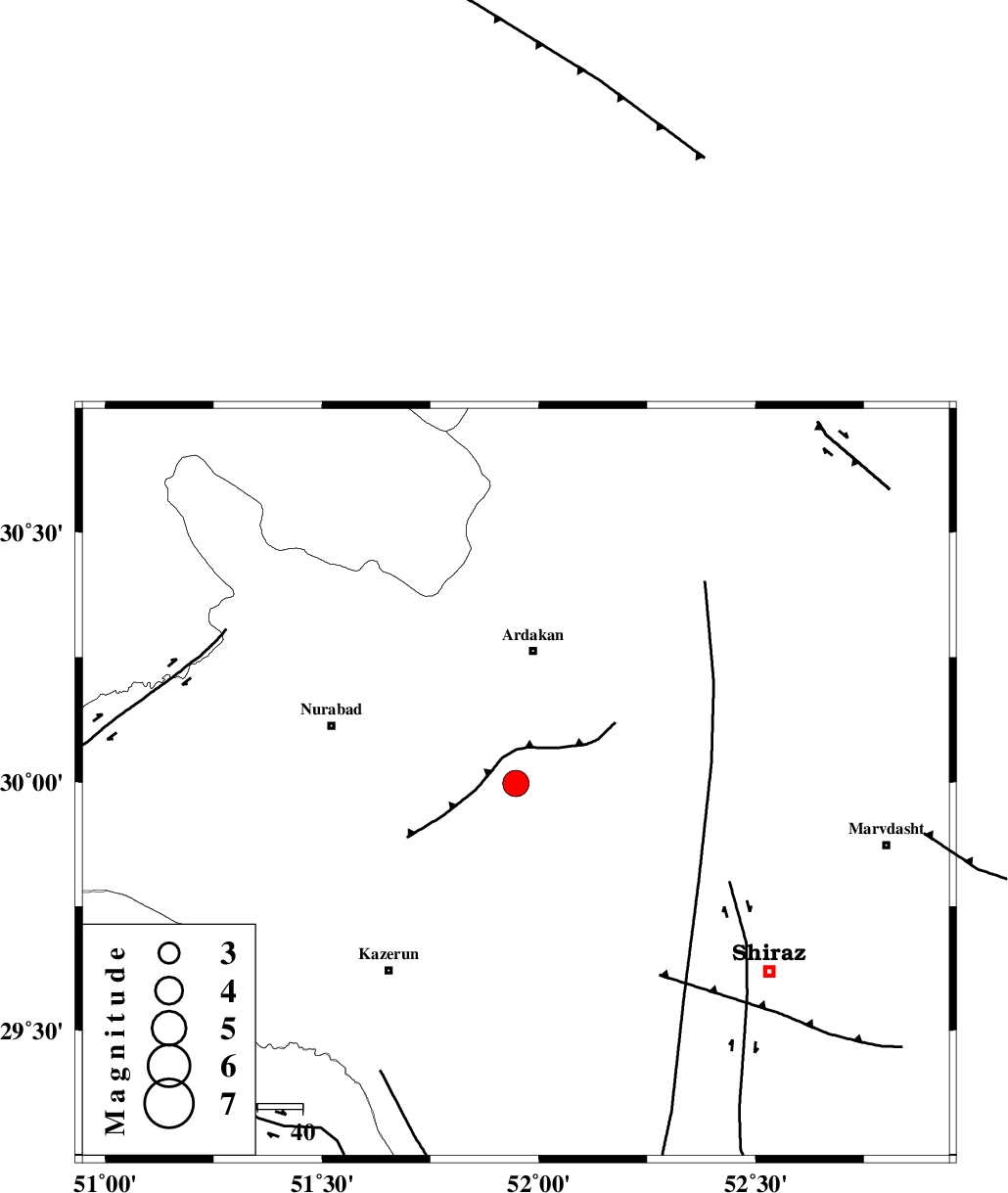

| Location | Lat:29.997 Lon: 51.947 |
| Region | Fars Province, 30 km South of Ardakan |
Nearest Cities |
|
| 26 km South of Bahrghan, Fars Province | |
| 30 km South of Ardakan, Fars Province | |
| 32 km North East of Nodan, Fars Province | |
| 38 km North East of Seyyed hasan, Fars Province | |
| 41 km East of Gachgaran, Fars Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| KAREBASS_F (Length: 98 km) , Distance to epicenter: 21 km | |
| HZF3 (Length: 197 km) , Distance to epicenter: 29 km | |
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 34 km | |
| Number of Phases | 13 |
| RMS | 0.5 |
| Number of Stations | 13 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 17.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 168371 | IIEES SC | KLNJ | Z | 4 | 1 | 2022-01-21 02:36:14 | 2022-01-22 07:02:00 | n |
| 168372 | IIEES SC | NASN | Z | 0.2 | 1 | 2022-01-21 02:36:42 | 2022-01-22 07:02:00 | n |
| 168373 | IIEES SC | YZKH | Z | 0.2 | 1 | 2022-01-21 02:36:48 | 2022-01-22 07:02:00 | n |
| 168374 | IIEES SC | GTMR | Z | 0.5 | 1 | 2022-01-21 02:36:51 | 2022-01-22 07:02:00 | n |
| 168375 | IIEES SC | KHMZ | Z | 0.2 | 1 | 2022-01-21 02:36:59 | 2022-01-22 07:02:00 | n |
| 168376 | IIEES SC | GHVR | Z | 0.2 | 1 | 2022-01-21 02:37:04 | 2022-01-22 07:02:00 | n |
| 168377 | IIEES SC | ASAO | Z | 0.2 | 1 | 2022-01-21 02:37:10 | 2022-01-22 07:02:00 | n |
| 168378 | IIEES SC | ILBA | Z | 0.07 | 1 | 2022-01-21 02:37:26 | 2022-01-22 07:02:00 | n |
| 168379 | IIEES SC | SNGE | Z | 0.02 | 1 | 2022-01-21 02:37:31 | 2022-01-22 07:02:00 | n |
| 168380 | IIEES SC | BSRN | Z | 0.04 | 1 | 2022-01-21 02:37:31 | 2022-01-22 07:02:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KLNJ | Z | EPg | E | 2022-01-21 02:36:14 | -0.4 | y | 0 | 117 | 343 | ||
| IIEES SC | GHIR | Z | EPn | E | 2022-01-21 02:36:29 | -0.1 | y | 0 | 215 | 152 | ||
| IIEES SC | NASN | Z | EPn | E | 2022-01-21 02:36:42 | -0.1 | y | 0 | 321 | 15 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-01-21 02:36:48 | 0 | y | 0 | 366 | 44 | ||
| IIEES SC | GTMR | Z | EPn | E | 2022-01-21 02:36:51 | 0.6 | y | 0 | 385 | 315 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-01-21 02:36:59 | 0.3 | y | 0 | 455 | 336 | ||
| IIEES SC | KRBR | Z | EPn | E | 2022-01-21 02:37:01 | 0.9 | y | 0 | 464 | 90 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-01-21 02:37:04 | -0.3 | y | 0 | 502 | 352 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-01-21 02:37:10 | 0.5 | y | 0 | 536 | 340 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-01-21 02:37:26 | -0.6 | y | 0 | 676 | 307 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-01-21 02:37:31 | -0.2 | y | 0 | 711 | 323 | ||
| IIEES SC | BSRN | Z | EPn | E | 2022-01-21 02:37:31 | -0.6 | y | 0 | 720 | 72 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-01-21 02:37:56 | -0.2 | y | 0 | 919 | 319 | ||
