Magnitude |
:3.6 |
| Date & Time (UTC) | 2022-03-11 08:17:30.2 |
| Date & Time (Local) | 1400/12/20 11:47:30.2 |

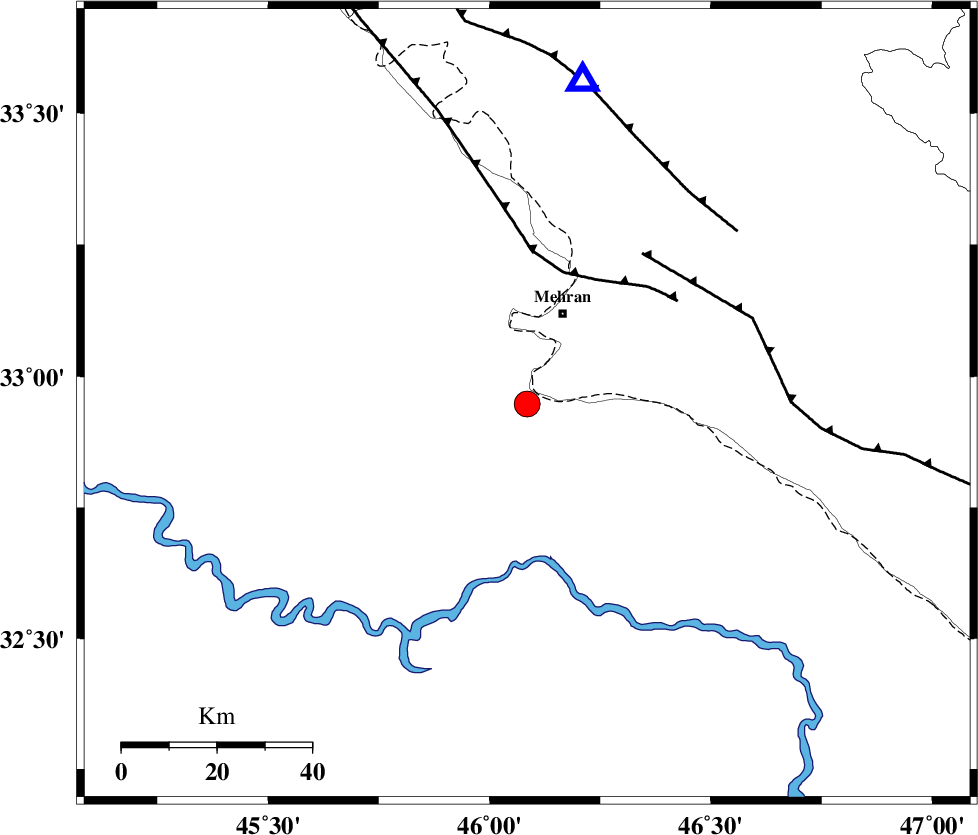

| Location | Lat:32.947 Lon: 46.085 |
| Region | Iraq, 21 km South of Mehran |
Nearest Cities |
|
| 21 km South of Mehran, Ilam Province | |
| 54 km South West of Galeh-yedarre-hemalakshahi, Ilam Province | |
| 55 km South West of Gonbad-e pirmohammad, Ilam Province | |
| 59 km South West of Salehabad, Ilam Province | |
| 66 km South West of Mehr, Ilam Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 29 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 40 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 56 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 2.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 169267 | IIEES SC | GTMR | Z | 0.3 | 1 | 2022-03-11 08:18:13 | 2022-03-13 04:53:00 | n |
| 169268 | IIEES SC | SRSL | Z | 0.2 | 1 | 2022-03-11 08:18:24 | 2022-03-13 04:53:00 | n |
| 169269 | IIEES SC | KHMZ | Z | 0.1 | 1 | 2022-03-11 08:18:24 | 2022-03-13 04:53:00 | n |
| 169270 | IIEES SC | ASAO | Z | 0.1 | 1 | 2022-03-11 08:18:28 | 2022-03-13 04:53:00 | n |
| 169271 | IIEES SC | GHVR | Z | 0.09 | 1 | 2022-03-11 08:18:41 | 2022-03-13 04:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | EPg | E | 2022-03-11 08:17:43 | -0.6 | y | 0 | 76 | 9 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-03-11 08:18:11 | 0.4 | y | 0 | 265 | 26 | ||
| IIEES SC | GTMR | Z | EPn | E | 2022-03-11 08:18:13 | -0.3 | y | 0 | 289 | 101 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-03-11 08:18:24 | 0.1 | y | 0 | 367 | 351 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-03-11 08:18:24 | -0.1 | y | 0 | 372 | 76 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-03-11 08:18:28 | -0.2 | y | 0 | 406 | 64 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-03-11 08:18:41 | 0.4 | y | 0 | 508 | 70 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-03-11 08:18:48 | 0.2 | y | 0 | 563 | 112 | ||
