Magnitude |
:3.1 |
| Date & Time (UTC) | 2022-04-21 15:08:05.3 |
| Date & Time (Local) | 1401/2/1 19:38:05.3 |

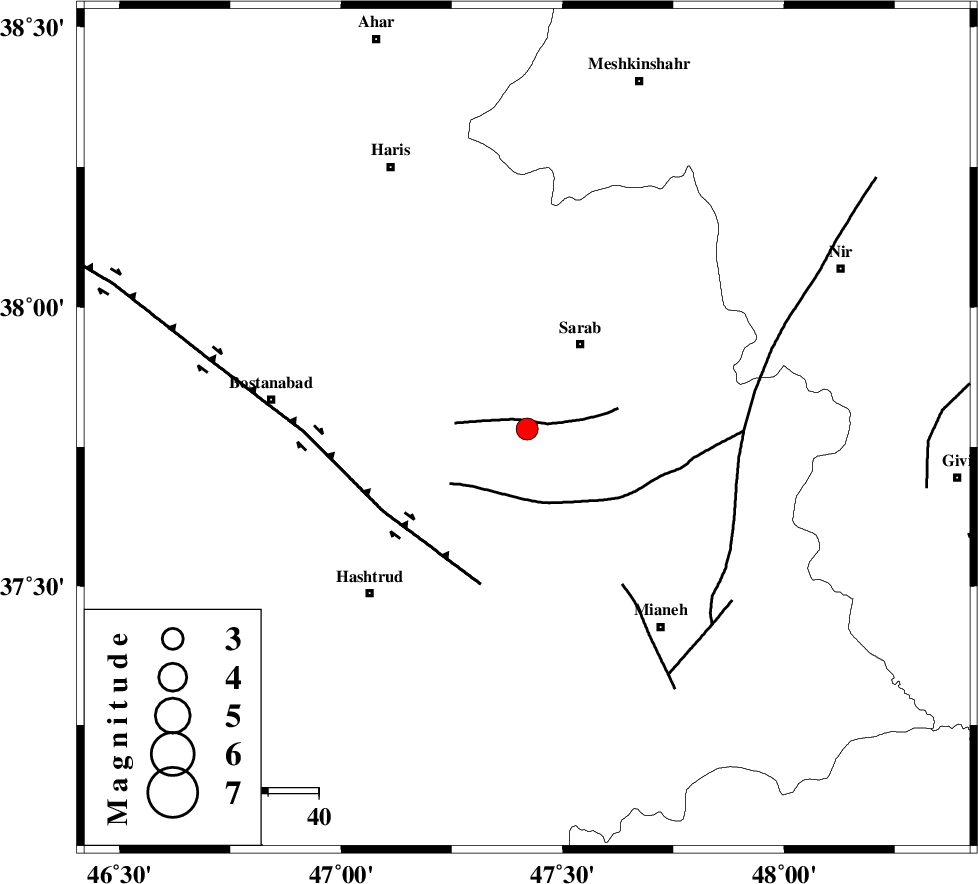

| Location | Lat:37.782 Lon: 47.42 |
| Region | Azarbaijan Sharghi Province, 20 km South-West of Sarab |
Nearest Cities |
|
| 11 km of Abarghan, Azarbaijan Sharghi Province | |
| 11 km West of Asbforushan, Azarbaijan Sharghi Province | |
| 20 km South West of Sarab, Azarbaijan Sharghi Province | |
| 20 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 21 km North of Qaribdust, Azarbaijan Sharghi Province | |
| Depth | 11 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 3 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 32 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 80 km | |
| Number of Phases | 12 |
| RMS | 0.6 |
| Number of Stations | 12 |
| Error in Latitude | >2 km |
| Error in Longitude | 2 km |
| Error in Depth | 10.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 169884 | IIEES SC | GRMI | Z | 0.8 | 1 | 2022-04-21 15:08:25 | 2022-04-24 05:52:00 | n |
| 169885 | IIEES SC | GRMI | Z | 0.8 | 1 | 2022-04-21 15:08:40 | 2022-04-24 05:52:00 | n |
| 169886 | IIEES SC | MRD | Z | 0.7 | 1 | 2022-04-21 15:08:35 | 2022-04-24 05:52:00 | n |
| 169887 | IIEES SC | MAHB | Z | 0.4 | 1 | 2022-04-21 15:08:35 | 2022-04-24 05:52:00 | n |
| 169888 | IIEES SC | SRSL | Z | 0.2 | 1 | 2022-04-21 15:08:45 | 2022-04-24 05:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | EPg | E | 2022-04-21 15:08:25 | -0.5 | y | 0 | 121 | 20 | ||
| IIEES SC | GRMI | Z | ESg | E | 2022-04-21 15:08:40 | 0.1 | y | 0 | 121 | 20 | ||
| IIEES SC | AZR | Z | EPg | E | 2022-04-21 15:08:26 | -0.7 | y | 0 | 127 | 265 | ||
| IIEES SC | ZNJK | Z | EPg | E | 2022-04-21 15:08:33 | 0.7 | y | 0 | 167 | 138 | ||
| IIEES SC | ZNJK | Z | ESg | E | 2022-04-21 15:08:52 | -0.4 | y | 0 | 167 | 138 | ||
| IIEES SC | MRD | Z | EPg | E | 2022-04-21 15:08:35 | 0.7 | y | 0 | 182 | 305 | ||
| IIEES SC | MAHB | Z | EPg | E | 2022-04-21 15:08:35 | -0.7 | y | 0 | 189 | 233 | ||
| IIEES SC | MAHB | Z | ESg | E | 2022-04-21 15:08:55 | -3.1 | n | 4 | 189 | 233 | ||
| IIEES SC | GIDE | Z | EPn | E | 2022-04-21 15:08:42 | 0 | y | 0 | 233 | 114 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-04-21 15:08:45 | 0.7 | y | 0 | 248 | 225 | ||
| IIEES SC | MAKU | Z | EPn | E | 2022-04-21 15:08:51 | 1.1 | n | 4 | 296 | 306 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-04-21 15:08:51 | 0.5 | y | 0 | 298 | 181 | ||
