Magnitude |
:3.4 |
| Date & Time (UTC) | 2022-03-23 22:38:17.7 |
| Date & Time (Local) | 1401/1/4 03:08:17.7 |
| Location | Lat:38.3 Lon: 45.805 |
| Region | Azarbaijan Sharghi Province, 15 km South of Marand |
Nearest Cities |
|
| 11 km of Kandlaj, Azarbaijan Sharghi Province | |
| 12 km North of Neematollah, Azarbaijan Sharghi Province | |
| 13 km North of Sis, Azarbaijan Sharghi Province | |
| 15 km South of Marand, Azarbaijan Sharghi Province | |
| 15 km North West of Sufiyan, Azarbaijan Sharghi Province | |
| Depth | 12 km |
| Agency | |

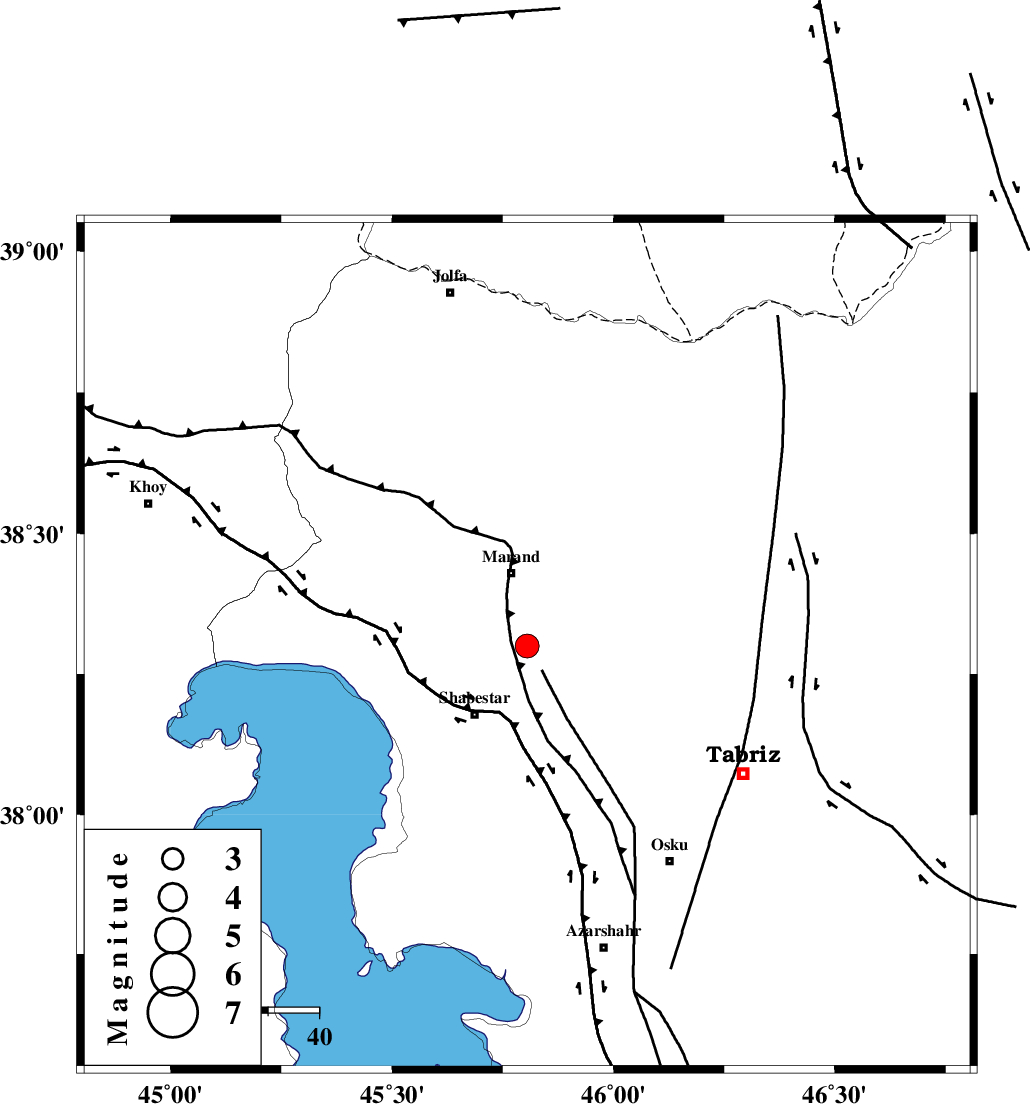

Faults within 150 km: |
|
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 9 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 13 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 28 km | |
| Number of Phases | 20 |
| RMS | 0.7 |
| Number of Stations | 20 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 2.2 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 181896 | IIEES SC | MRD | Z | 30 | 1 | 2022-03-23 22:38:26 | 2023-05-10 07:56:00 | n |
| 181897 | IIEES SC | MRD | Z | 30 | 1 | 2022-03-23 22:38:32 | 2023-05-10 07:56:00 | n |
| 181898 | IIEES SC | MAKU | Z | 1 | 1 | 2022-03-23 22:38:41 | 2023-05-10 07:56:00 | n |
| 181899 | IIEES SC | MAHB | Z | 1 | 1 | 2022-03-23 22:38:45 | 2023-05-10 07:56:00 | n |
| 181900 | IIEES SC | GRMI | Z | 0.5 | 1 | 2022-03-23 22:38:49 | 2023-05-10 07:56:00 | n |
| 181901 | IIEES SC | GNI | Z | 1 | 1 | 2022-03-23 22:38:54 | 2023-05-10 07:56:00 | n |
| 181902 | IIEES SC | SRSL | Z | 0.5 | 1 | 2022-03-23 22:38:55 | 2023-05-10 07:56:00 | n |
| 181903 | IIEES SC | ZNJK | Z | 0.1 | 1 | 2022-03-23 22:39:04 | 2023-05-10 07:56:00 | n |
| 181904 | IIEES SC | ILBA | Z | 0.03 | 1 | 2022-03-23 22:39:29 | 2023-05-10 07:56:00 | n |
| 181905 | IIEES SC | DAMV | Z | 0.02 | 1 | 2022-03-23 22:39:43 | 2023-05-10 07:56:00 | n |
| 181906 | IIEES SC | GTMR | Z | 0.02 | 1 | 2022-03-23 22:39:54 | 2023-05-10 07:56:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2022-03-23 22:38:26 | 0.3 | y | 0 | 47 | 349 | ||
| IIEES SC | MRD | Z | ESg | E | 2022-03-23 22:38:32 | -0.2 | y | 0 | 47 | 349 | ||
| IIEES SC | AZR | Z | EPg | E | 2022-03-23 22:38:30 | 0.3 | y | 0 | 71 | 167 | ||
| IIEES SC | AZR | Z | ESg | E | 2022-03-23 22:38:39 | 0.4 | y | 0 | 71 | 167 | ||
| IIEES SC | MAKU | Z | EPg | E | 2022-03-23 22:38:41 | -1.2 | y | 0 | 152 | 320 | ||
| IIEES SC | MAHB | Z | EPg | E | 2022-03-23 22:38:45 | -0.1 | y | 0 | 170 | 183 | ||
| IIEES SC | GRMI | Z | EPg | E | 2022-03-23 22:38:49 | 1 | y | 0 | 191 | 73 | ||
| IIEES SC | GNI | Z | EPn | E | 2022-03-23 22:38:54 | 0.5 | y | 0 | 225 | 336 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-03-23 22:38:55 | 0.3 | y | 0 | 234 | 188 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2022-03-23 22:39:04 | -0.6 | y | 0 | 312 | 125 | ||
| IIEES SC | GURO | Z | EPn | E | 2022-03-23 22:39:07 | 0.4 | y | 0 | 331 | 275 | ||
| IIEES SC | BGD | Z | EPn | E | 2022-03-23 22:39:13 | 0.8 | y | 0 | 380 | 330 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-03-23 22:39:19 | 6.7 | n | 4 | 382 | 159 | ||
| IIEES SC | GIDE | Z | EPn | E | 2022-03-23 22:39:18 | 5 | n | 4 | 386 | 113 | ||
| IIEES SC | HGHA | Z | EPn | E | 2022-03-23 22:39:15 | -2 | n | 4 | 414 | 139 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-03-23 22:39:29 | -0.6 | y | 0 | 520 | 176 | ||
| IIEES SC | DAMV | Z | EPn | E | 2022-03-23 22:39:43 | -0.1 | y | 0 | 624 | 118 | ||
| IIEES SC | GTMR | Z | EPn | E | 2022-03-23 22:39:54 | 0.7 | y | 0 | 713 | 155 | ||
| IIEES SC | ABGH | Z | EPn | E | 2022-03-23 22:40:05 | -1.4 | y | 0 | 814 | 102 | ||
| IIEES SC | MRVT | Z | EPn | E | 2022-03-23 22:40:17 | -0.6 | y | 0 | 906 | 95 | ||
