Magnitude |
:3.7 |
| Date & Time (UTC) | 2021-05-20 06:21:20.1 |
| Date & Time (Local) | 1400/2/30 10:51:20.1 |

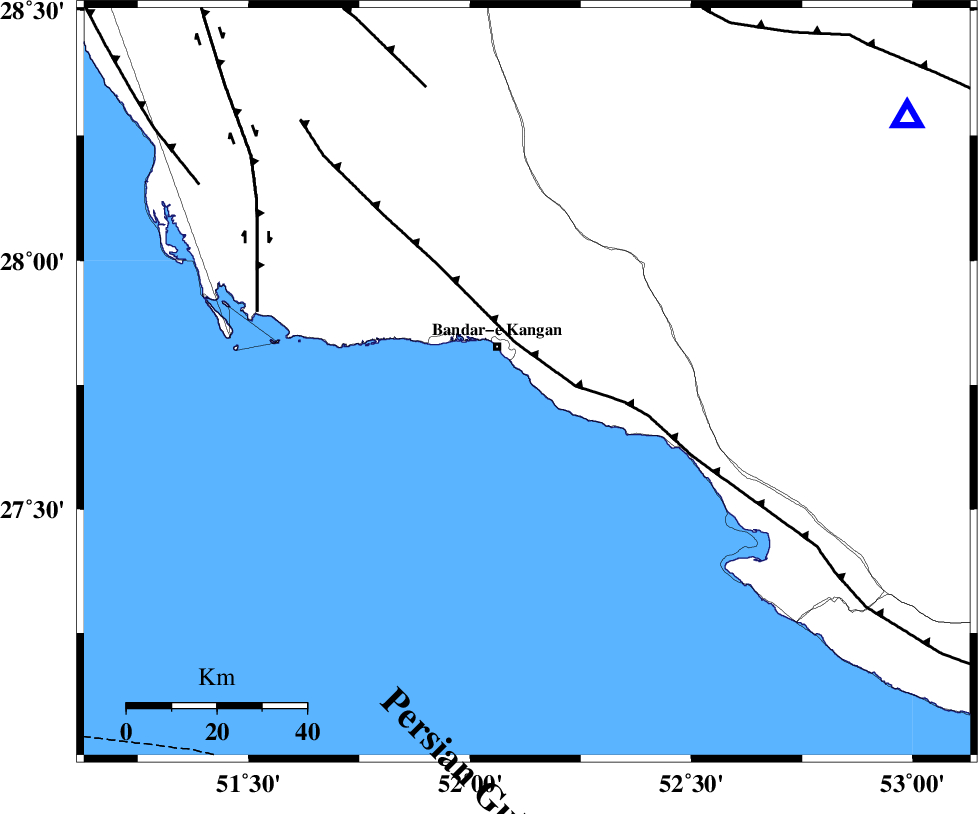

| Location | Lat:27.755 Lon: 52.129 |
| Region | Persian Gulf, 10 km of Bandar-e kangan |
Nearest Cities |
|
| 10 km of Bandar-e kangan, Bushehr Province | |
| 20 km West of Jam, Bushehr Province | |
| 23 km North West of Bandar-e taheri, Bushehr Province | |
| 33 km South of Riz, Bushehr Province | |
| 47 km South West of Dolatabad, Fars Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 9 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 62 km | |
| MFF5 (Length: 74 km) , Distance to epicenter: 70 km | |
| Number of Phases | 30 |
| RMS | 0.5 |
| Number of Stations | 30 |
| Error in Latitude | >1 km |
| Error in Longitude | 1 km |
| Error in Depth | 3.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 181995 | IIEES SC | GHIR | Z | 1 | 1 | 2021-05-20 06:21:38 | 2023-02-27 07:12:00 | n |
| 181996 | IIEES SC | KHRK | Z | 1 | 1 | 2021-05-20 06:21:57 | 2023-02-27 07:12:00 | n |
| 181997 | IIEES SC | KLNJ | Z | 0.3 | 1 | 2021-05-20 06:22:12 | 2023-02-27 07:12:00 | n |
| 181998 | IIEES SC | BNDS | Z | 0.2 | 1 | 2021-05-20 06:22:16 | 2023-02-27 07:12:00 | n |
| 181999 | IIEES SC | MEH | Z | 0.06 | 1 | 2021-05-20 06:22:27 | 2023-02-27 07:12:00 | n |
| 182000 | IIEES SC | UOSS | Z | 0.08 | 1 | 2021-05-20 06:23:22 | 2023-02-27 07:12:00 | n |
| 182001 | IIEES SC | UOSS | Z | 0.08 | 1 | 2021-05-20 06:22:31 | 2023-02-27 07:12:00 | n |
| 182002 | IIEES SC | KRBR | Z | 0.1 | 1 | 2021-05-20 06:22:32 | 2023-02-27 07:12:00 | n |
| 182003 | IIEES SC | NASN | Z | 0.04 | 1 | 2021-05-20 06:22:37 | 2023-02-27 07:12:00 | n |
| 182004 | IIEES SC | YZKH | Z | 0.04 | 1 | 2021-05-20 06:22:37 | 2023-02-27 07:12:00 | n |
| 182005 | IIEES SC | GTMR | Z | 0.09 | 1 | 2021-05-20 06:22:41 | 2023-02-27 07:12:00 | n |
| 182006 | IIEES SC | ASAO | Z | 0.03 | 1 | 2021-05-20 06:23:04 | 2023-02-27 07:12:00 | n |
| 182007 | IIEES SC | TABS | Z | 0.02 | 1 | 2021-05-20 06:23:07 | 2023-02-27 07:12:00 | n |
| 182008 | IIEES SC | RAYN | Z | 0.04 | 1 | 2021-05-20 06:23:08 | 2023-02-27 07:12:00 | n |
| 182009 | IIEES SC | BSRN | Z | 0.01 | 1 | 2021-05-20 06:23:09 | 2023-02-27 07:12:00 | n |
| 182010 | IIEES SC | ILBA | Z | 0.02 | 1 | 2021-05-20 06:23:13 | 2023-02-27 07:12:00 | n |
| 182011 | IIEES SC | DAMV | Z | 0.02 | 1 | 2021-05-20 06:23:15 | 2023-02-27 07:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GHIR | Z | EPg | E | 2021-05-20 06:21:38 | 1.2 | y | 0 | 103 | 55 | ||
| IIEES SC | GHIR | Z | ESg | E | 2021-05-20 06:21:53 | 3.1 | n | 4 | 103 | 55 | ||
| IIEES SC | LMD1 | Z | EPg | E | 2021-05-20 06:21:41 | 2.6 | n | 4 | 112 | 114 | ||
| IIEES SC | LMD1 | Z | ESg | E | 2021-05-20 06:21:56 | 4.1 | n | 4 | 112 | 114 | ||
| IIEES SC | AHRM | Z | EPg | E | 2021-05-20 06:21:45 | 0.9 | y | 0 | 148 | 326 | ||
| IIEES SC | AHRM | Z | ESg | E | 2021-05-20 06:22:06 | 5.2 | n | 4 | 148 | 326 | ||
| IIEES SC | KHRK | Z | EPn | E | 2021-05-20 06:21:57 | -0.4 | y | 0 | 243 | 313 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2021-05-20 06:22:12 | -0.2 | y | 0 | 364 | 352 | ||
| IIEES SC | BNDS | Z | EPn | E | 2021-05-20 06:22:16 | -0.6 | y | 0 | 401 | 96 | ||
| IIEES SC | MEH | Z | EPn | E | 2021-05-20 06:22:27 | 1.2 | y | 0 | 469 | 31 | ||
| IIEES SC | UOSS | Z | EPn | E | 2021-05-20 06:22:31 | 0.6 | y | 0 | 512 | 127 | ||
| IIEES SC | UOSS | Z | ES | E | 2021-05-20 06:23:22 | -0.4 | y | 0 | 512 | 127 | ||
| IIEES SC | KRBR | Z | EPn | E | 2021-05-20 06:22:32 | 0.5 | y | 0 | 515 | 61 | ||
| IIEES SC | JSSH | Z | EPn | E | 2021-05-20 06:22:37 | 0.2 | y | 0 | 561 | 111 | ||
| IIEES SC | NASN | Z | EPn | E | 2021-05-20 06:22:37 | -0.3 | y | 0 | 563 | 7 | ||
| IIEES SC | YZKH | Z | EPn | E | 2021-05-20 06:22:37 | -0.6 | y | 0 | 566 | 25 | ||
| IIEES SC | GTMR | Z | EPn | E | 2021-05-20 06:22:41 | 0.1 | y | 0 | 598 | 331 | ||
| IIEES SC | KBAM | Z | EPn | E | 2021-05-20 06:22:47 | 0.4 | y | 0 | 638 | 76 | ||
| IIEES SC | ASAO | Z | EPn | E | 2021-05-20 06:23:04 | -0.1 | y | 0 | 779 | 345 | ||
| IIEES SC | TABS | Z | EPn | E | 2021-05-20 06:23:07 | -0.8 | y | 0 | 810 | 36 | ||
| IIEES SC | RAYN | Z | EPn | E | 2021-05-20 06:23:08 | 0.1 | y | 0 | 814 | 235 | ||
| IIEES SC | BSRN | Z | EPn | E | 2021-05-20 06:23:09 | 0 | y | 0 | 822 | 55 | ||
| IIEES SC | ILBA | Z | EPn | E | 2021-05-20 06:23:13 | -0.8 | y | 0 | 863 | 319 | ||
| IIEES SC | CHBR | Z | EPn | E | 2021-05-20 06:23:14 | -0.7 | y | 0 | 865 | 106 | ||
| IIEES SC | DAMV | Z | EPn | E | 2021-05-20 06:23:15 | -0.7 | y | 0 | 873 | 359 | ||
| IIEES SC | SNGE | Z | EPn | E | 2021-05-20 06:23:23 | 0.5 | y | 0 | 932 | 331 | ||
| IIEES SC | DHR | Z | EPn | E | 2021-05-20 06:23:24 | -0.4 | y | 0 | 944 | 325 | ||
| IIEES SC | SHRO | Z | EPn | E | 2021-05-20 06:23:29 | 0 | y | 0 | 986 | 22 | ||
| IIEES SC | SRVN | Z | EPn | E | 2021-05-20 06:23:33 | -0.2 | y | 0 | 1015 | 92 | ||
| IIEES SC | SHRT | Z | EPn | E | 2021-05-20 06:23:33 | -0.7 | y | 0 | 1019 | 50 | ||
