Magnitude |
:3.6 |
| Date & Time (UTC) | 2023-08-15 16:25:20.9 |
| Date & Time (Local) | 1402/5/24 19:55:20.9 |

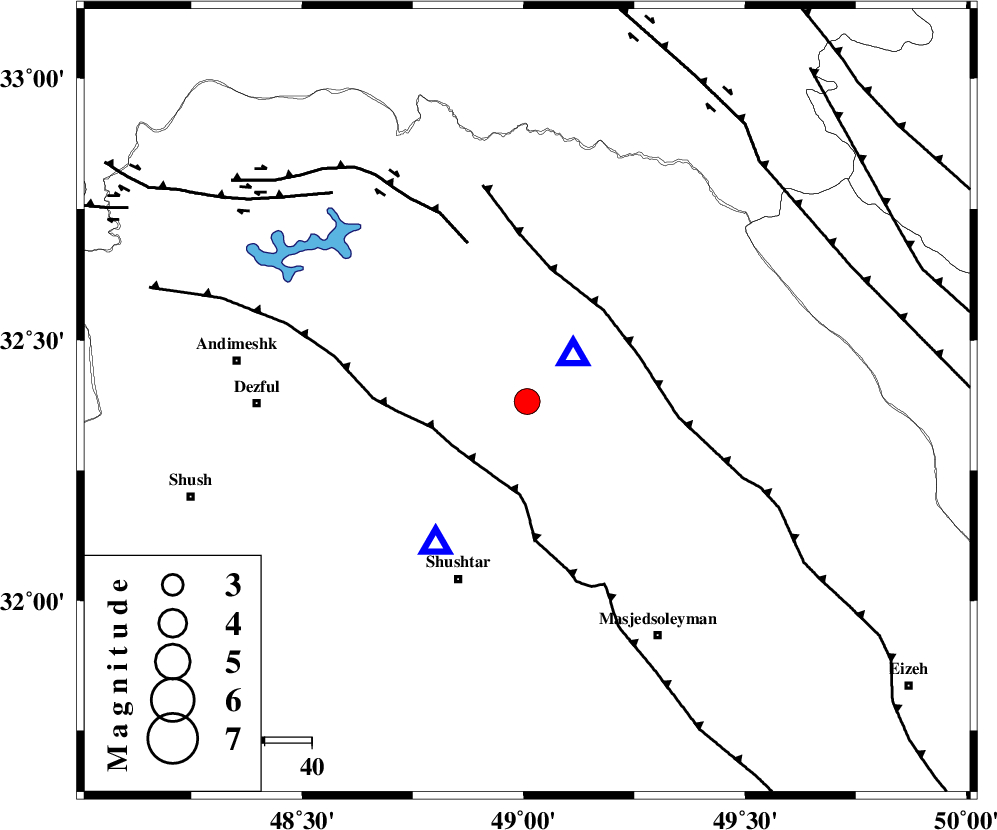

| Location | Lat:32.382 Lon: 49.008 |
| Region | Khoozestan Province, 9 km -West of Lali |
Nearest Cities |
|
| 9 km West of Lali, Khoozestan Province | |
| 16 km North West of Jaefarabad, Khoozestan Province | |
| 21 km South East of Sardasht, Khoozestan Province | |
| 24 km North East of Gatvand, Khoozestan Province | |
| 25 km North East of Samaleh, Khoozestan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 17 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 25 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 36 km | |
| Number of Phases | 18 |
| RMS | 0.5 |
| Number of Stations | 18 |
| Error in Latitude | >1.8 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 2.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 185041 | IIEES SC | GTMR | Z | 50 | 1 | 2023-08-15 16:25:24 | 2023-08-19 05:25:00 | n |
| 185042 | IIEES SC | ASAO | Z | 0.6 | 1 | 2023-08-15 16:26:01 | 2023-08-19 05:25:00 | n |
| 185043 | IIEES SC | KCHF | Z | 0.3 | 1 | 2023-08-15 16:26:03 | 2023-08-19 05:25:00 | n |
| 185044 | IIEES SC | KLNJ | Z | 0.5 | 1 | 2023-08-15 16:26:04 | 2023-08-19 05:25:00 | n |
| 185045 | IIEES SC | GHVR | Z | 0.5 | 1 | 2023-08-15 16:26:07 | 2023-08-19 05:25:00 | n |
| 185046 | IIEES SC | HGHA | Z | 0.3 | 1 | 2023-08-15 16:26:12 | 2023-08-19 05:25:00 | n |
| 185047 | IIEES SC | DHR | Z | 0.2 | 1 | 2023-08-15 16:26:12 | 2023-08-19 05:25:00 | n |
| 185048 | IIEES SC | NASN | Z | 0.1 | 1 | 2023-08-15 16:26:13 | 2023-08-19 05:25:00 | n |
| 185049 | IIEES SC | THKV | Z | 0.06 | 1 | 2023-08-15 16:26:22 | 2023-08-19 05:25:00 | n |
| 185050 | IIEES SC | TAFT | Z | 0.05 | 1 | 2023-08-15 16:26:29 | 2023-08-19 05:25:00 | n |
| 185051 | IIEES SC | YZKH | Z | 0.08 | 1 | 2023-08-15 16:26:34 | 2023-08-19 05:25:00 | n |
| 185052 | IIEES SC | SRSL | Z | 0.09 | 1 | 2023-08-15 16:26:34 | 2023-08-19 05:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | EPg | E | 2023-08-15 16:25:24 | 0.2 | y | 0 | 14 | 45 | ||
| IIEES SC | AHWZ | Z | EPg | E | 2023-08-15 16:25:41 | 0.5 | y | 0 | 122 | 196 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-08-15 16:26:01 | 0.7 | y | 0 | 258 | 21 | ||
| IIEES SC | KCHF | Z | EPn | E | 2023-08-15 16:26:03 | -0.5 | y | 0 | 279 | 319 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2023-08-15 16:26:04 | -0.4 | y | 0 | 288 | 122 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-08-15 16:26:02 | -3 | n | 4 | 296 | 298 | ||
| IIEES SC | GHVR | Z | EPn | E | 2023-08-15 16:26:07 | -0.4 | y | 0 | 312 | 42 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-08-15 16:26:12 | 0.8 | y | 0 | 345 | 358 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-08-15 16:26:12 | -0.2 | y | 0 | 354 | 317 | ||
| IIEES SC | NASN | Z | EPn | E | 2023-08-15 16:26:13 | -0.2 | y | 0 | 360 | 83 | ||
| IIEES SC | QABG | Z | EPn | E | 2023-08-15 16:26:15 | 0.2 | y | 0 | 373 | 8 | ||
| IIEES SC | THKV | Z | EPn | E | 2023-08-15 16:26:22 | -0.1 | y | 0 | 428 | 24 | ||
| IIEES SC | TAFT | Z | EPn | E | 2023-08-15 16:26:29 | -0.4 | y | 0 | 493 | 99 | ||
| IIEES SC | GIDE | Z | EPn | E | 2023-08-15 16:26:32 | 0 | y | 0 | 509 | 8 | ||
| IIEES SC | YZKH | Z | EPn | E | 2023-08-15 16:26:34 | -0.2 | y | 0 | 525 | 90 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-08-15 16:26:34 | -1 | y | 0 | 537 | 322 | ||
| IIEES SC | GHIR | Z | EPn | E | 2023-08-15 16:26:40 | -2.1 | n | 4 | 594 | 140 | ||
| IIEES SC | GLO | Z | EPn | E | 2023-08-15 16:26:49 | 1.1 | y | 0 | 637 | 44 | ||
