Magnitude |
:3.6 |
| Date & Time (UTC) | 2023-08-21 09:59:58.6 |
| Date & Time (Local) | 1402/5/30 13:29:58.6 |

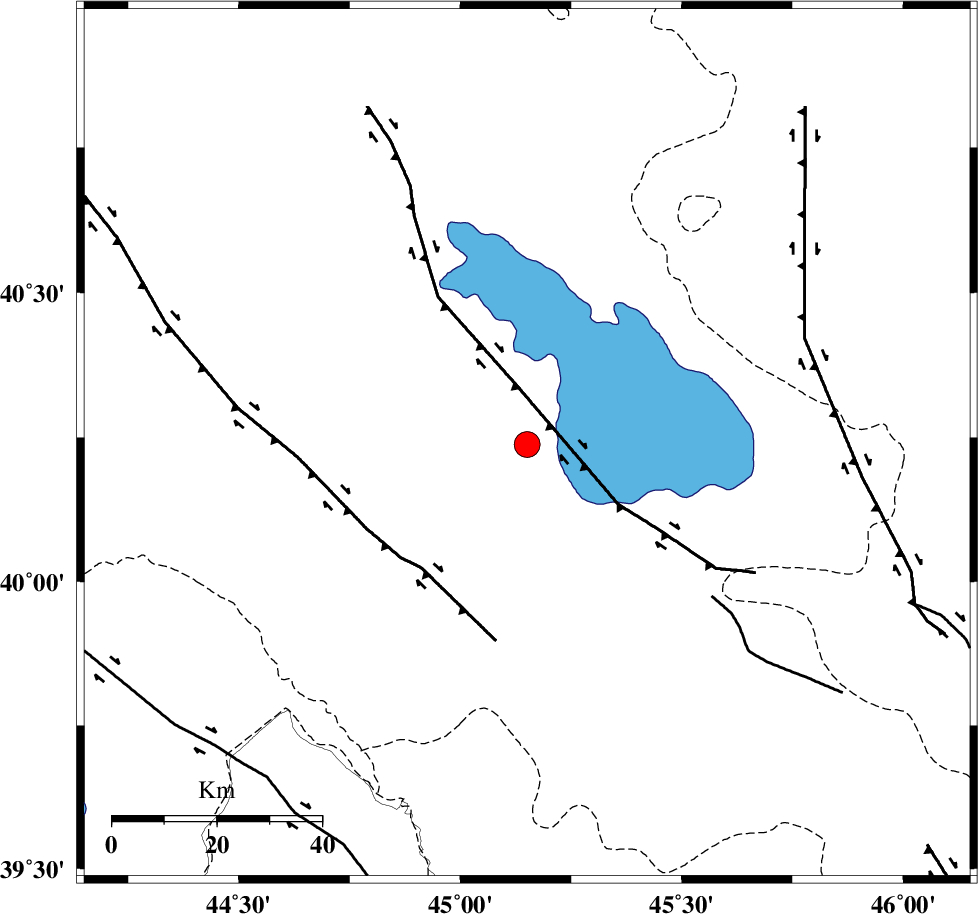

| Location | Lat:40.238 Lon: 45.151 |
| Region | Armenia, 55 km -East of Yerevan |
Nearest Cities |
|
| 55 km North East of Yerevan, Armenia Province | |
| 74 km North East of Qush, Azarbaijan Gharbi Province | |
| 99 km North of Paldasht, Azarbaijan Gharbi Province | |
| 107 km North East of Eshqabad, Azarbaijan Gharbi Province | |
| 110 km North East of Qareh tappeh, Azarbaijan Gharbi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 128 km | |
| Number of Phases | 17 |
| RMS | 0.6 |
| Number of Stations | 17 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 3.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 185233 | IIEES SC | GNI | Z | 30 | 1 | 2023-08-21 10:00:04 | 2023-08-22 03:52:00 | n |
| 185234 | IIEES SC | MAKU | Z | 2 | 1 | 2023-08-21 10:00:16 | 2023-08-22 03:52:00 | n |
| 185235 | IIEES SC | MRD | Z | 3 | 1 | 2023-08-21 10:00:27 | 2023-08-22 03:52:00 | n |
| 185236 | IIEES SC | AZR | Z | 2 | 1 | 2023-08-21 10:00:44 | 2023-08-22 03:52:00 | n |
| 185237 | IIEES SC | GURO | Z | 0.4 | 1 | 2023-08-21 10:00:48 | 2023-08-22 03:52:00 | n |
| 185238 | IIEES SC | SRSL | Z | 0.06 | 1 | 2023-08-21 10:01:01 | 2023-08-22 03:52:00 | n |
| 185239 | IIEES SC | DHR | Z | 0.04 | 1 | 2023-08-21 10:01:25 | 2023-08-22 03:52:00 | n |
| 185240 | IIEES SC | ILBA | Z | 0.01 | 1 | 2023-08-21 10:01:39 | 2023-08-22 03:52:00 | n |
| 185241 | IIEES SC | ASAO | Z | 0.02 | 1 | 2023-08-21 10:01:41 | 2023-08-22 03:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GNI | Z | EPg | E | 2023-08-21 10:00:04 | -0.6 | y | 0 | 36 | 254 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-08-21 10:00:16 | -0.1 | y | 0 | 106 | 202 | ||
| IIEES SC | MAKU | Z | ESg | E | 2023-08-21 10:00:32 | 2.6 | n | 4 | 106 | 202 | ||
| IIEES SC | MRD | Z | EPg | E | 2023-08-21 10:00:27 | -0.6 | y | 0 | 176 | 164 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-08-21 10:00:36 | -5.8 | n | 4 | 284 | 124 | ||
| IIEES SC | AZR | Z | EPn | E | 2023-08-21 10:00:44 | 0.9 | y | 0 | 293 | 166 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-08-21 10:00:48 | 0.9 | y | 0 | 328 | 235 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-08-21 10:00:58 | 3.6 | n | 4 | 388 | 173 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-08-21 10:01:01 | -0.7 | y | 0 | 448 | 177 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-08-21 10:01:19 | 9.8 | n | 4 | 502 | 142 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-08-21 10:01:30 | 6.7 | n | 4 | 620 | 148 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-08-21 10:01:25 | 0.5 | y | 0 | 624 | 170 | ||
| IIEES SC | QABG | Z | EPn | E | 2023-08-21 10:01:25 | -0.5 | y | 0 | 636 | 142 | ||
| IIEES SC | CHTH | Z | EPn | E | 2023-08-21 10:01:39 | 4.2 | n | 4 | 711 | 133 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-08-21 10:01:39 | 0.6 | y | 0 | 740 | 173 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-08-21 10:01:41 | -0.3 | y | 0 | 765 | 146 | ||
| IIEES SC | GLO | Z | EPn | E | 2023-08-21 10:01:54 | -0.1 | y | 0 | 864 | 119 | ||
