Magnitude |
:5 |
| Date & Time (UTC) | 2023-09-10 21:42:48.7 |
| Date & Time (Local) | 1402/6/20 01:12:48.7 |

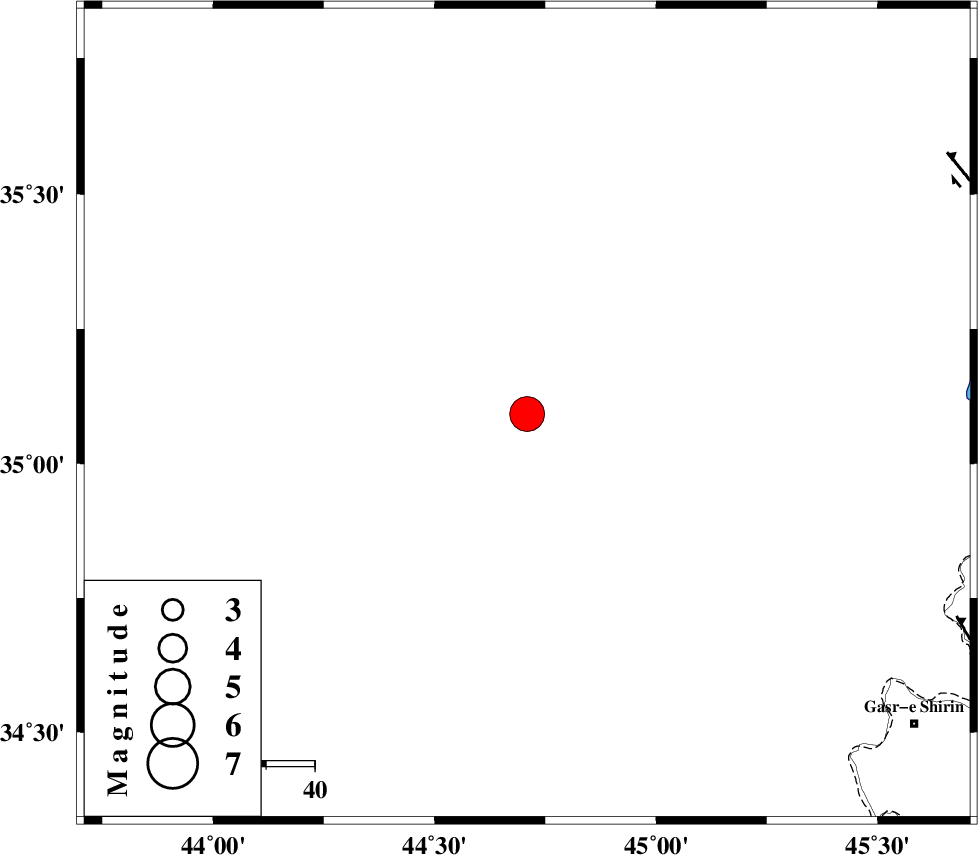

| Location | Lat:35.092 Lon: 44.709 |
| Region | Iraq, 84 km South-West of Sulaymaniyah |
Nearest Cities |
|
| 84 km South West of Sulaymaniyah, Iraq Province | |
| 100 km North West of Tappeh rash, Kermanshah Province | |
| 102 km North West of Qasr-E-Shirin, Kermanshah Province | |
| 104 km North West of Khosravi, Kermanshah Province | |
| 106 km North West of Aqabarar, Kermanshah Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 98 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 101 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 137 km | |
| Number of Phases | 19 |
| RMS | 0.4 |
| Number of Stations | 19 |
| Error in Latitude | >3 km |
| Error in Longitude | 3 km |
| Error in Depth | 7.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 186407 | IIEES SC | DHR | Z | 40 | 1 | 2023-09-10 21:43:15 | 2023-09-11 05:07:00 | n |
| 186408 | IIEES SC | MAHB | Z | 40 | 1 | 2023-09-10 21:43:22 | 2023-09-11 05:07:00 | n |
| 186409 | IIEES SC | KCHF | Z | 50 | 1 | 2023-09-10 21:43:25 | 2023-09-11 05:07:00 | n |
| 186410 | IIEES SC | HGHA | Z | 5 | 1 | 2023-09-10 21:43:44 | 2023-09-11 05:07:00 | n |
| 186411 | IIEES SC | ZNJK | Z | 0.9 | 1 | 2023-09-10 21:43:45 | 2023-09-11 05:07:00 | n |
| 186412 | IIEES SC | QABG | Z | 0.7 | 1 | 2023-09-10 21:43:52 | 2023-09-11 05:07:00 | n |
| 186413 | IIEES SC | GURO | Z | 4 | 1 | 2023-09-10 21:43:52 | 2023-09-11 05:07:00 | n |
| 186414 | IIEES SC | ASAO | Z | 3 | 1 | 2023-09-10 21:43:57 | 2023-09-11 05:07:00 | n |
| 186415 | IIEES SC | GTMR | Z | 4 | 1 | 2023-09-10 21:43:58 | 2023-09-11 05:07:00 | n |
| 186416 | IIEES SC | GHVR | Z | 1 | 1 | 2023-09-10 21:44:11 | 2023-09-11 05:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SRSL | Z | EPg | E | 2023-09-10 21:43:11 | -0.2 | y | 0 | 140 | 28 | ||
| IIEES SC | DHR | Z | EPg | E | 2023-09-10 21:43:15 | 0.1 | y | 0 | 159 | 106 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-09-10 21:43:22 | -0.2 | y | 0 | 206 | 26 | ||
| IIEES SC | KCHF | Z | EPn | E | 2023-09-10 21:43:25 | 0.2 | y | 0 | 232 | 113 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-09-10 21:43:26 | 0 | y | 0 | 240 | 90 | ||
| IIEES SC | AZR | Z | EPn | E | 2023-09-10 21:43:35 | 0.4 | y | 0 | 309 | 22 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-09-10 21:43:44 | 0.9 | y | 0 | 380 | 83 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-09-10 21:43:45 | -0.6 | y | 0 | 400 | 64 | ||
| IIEES SC | MRD | Z | EPn | E | 2023-09-10 21:43:48 | 0.3 | y | 0 | 412 | 12 | ||
| IIEES SC | QABG | Z | EPn | E | 2023-09-10 21:43:52 | -0.4 | y | 0 | 448 | 81 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-09-10 21:43:52 | -0.8 | y | 0 | 452 | 328 | ||
| IIEES SC | MAKU | Z | EPn | E | 2023-09-10 21:43:55 | 0.3 | y | 0 | 473 | 360 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-09-10 21:43:57 | 0 | y | 0 | 490 | 97 | ||
| IIEES SC | GTMR | Z | EPn | E | 2023-09-10 21:43:58 | -0.5 | y | 0 | 501 | 125 | ||
| IIEES SC | GHVR | Z | EPn | E | 2023-09-10 21:44:11 | 0.3 | y | 0 | 602 | 96 | ||
| IIEES SC | NASN | Z | EPn | E | 2023-09-10 21:44:30 | -4.3 | n | 4 | 791 | 109 | ||
| IIEES SC | TAFT | Z | EPn | E | 2023-09-10 21:44:51 | -4.1 | n | 4 | 956 | 113 | ||
| IIEES SC | MEH | Z | EPn | E | 2023-09-10 21:46:01 | 59 | n | 4 | 1010 | 114 | ||
| IIEES SC | GHIR | Z | EPn | E | 2023-09-10 21:45:07 | -4.5 | n | 4 | 1089 | 134 | ||
