Magnitude |
:3.4 |
| Date & Time (UTC) | 2023-09-12 20:21:02.3 |
| Date & Time (Local) | 1402/6/21 23:51:02.3 |

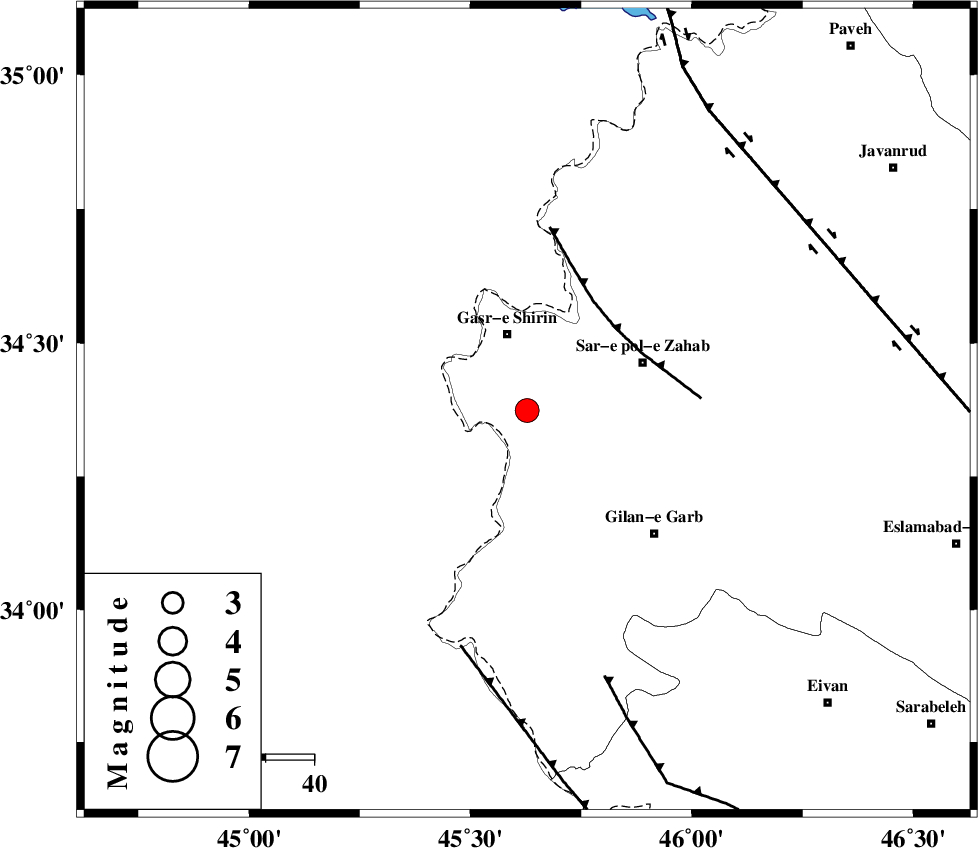

| Location | Lat:34.373 Lon: 45.628 |
| Region | Kermanshah Province, 16 km South of Qasr-E-Shirin |
Nearest Cities |
|
| 8 km of Seyyed sohrab, Kermanshah Province | |
| 14 km East of Khosravi, Kermanshah Province | |
| 16 km South of Qasr-E-Shirin, Kermanshah Province | |
| 19 km South West of Qareh belagh, Kermanshah Province | |
| 19 km South of Aqabarar, Kermanshah Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 25 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 51 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 58 km | |
| Number of Phases | 15 |
| RMS | 0.7 |
| Number of Stations | 15 |
| Error in Latitude | >4.3 km |
| Error in Longitude | 4.3 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 186538 | IIEES SC | DHR | Z | 4 | 1 | 2023-09-12 20:21:14 | 2023-09-13 05:13:00 | n |
| 186539 | IIEES SC | KCHF | Z | 2 | 1 | 2023-09-12 20:21:23 | 2023-09-13 05:13:00 | n |
| 186540 | IIEES SC | KCHF | Z | 2 | 1 | 2023-09-12 20:21:40 | 2023-09-13 05:13:00 | n |
| 186541 | IIEES SC | SRSL | Z | 1 | 1 | 2023-09-12 20:21:34 | 2023-09-13 05:13:00 | n |
| 186542 | IIEES SC | MAHB | Z | 0.5 | 1 | 2023-09-12 20:21:43 | 2023-09-13 05:13:00 | n |
| 186543 | IIEES SC | HGHA | Z | 0.2 | 1 | 2023-09-12 20:21:50 | 2023-09-13 05:13:00 | n |
| 186544 | IIEES SC | GTMR | Z | 0.1 | 1 | 2023-09-12 20:21:58 | 2023-09-13 05:13:00 | n |
| 186545 | IIEES SC | QABG | Z | 0.01 | 1 | 2023-09-12 20:21:59 | 2023-09-13 05:13:00 | n |
| 186546 | IIEES SC | ASAO | Z | 0.08 | 1 | 2023-09-12 20:22:01 | 2023-09-13 05:13:00 | n |
| 186547 | IIEES SC | MRD | Z | 0.06 | 1 | 2023-09-12 20:22:10 | 2023-09-13 05:13:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DHR | Z | EPg | E | 2023-09-12 20:21:14 | -1.4 | y | 0 | 78 | 63 | ||
| IIEES SC | DHR | Z | ESg | E | 2023-09-12 20:21:19 | -6.6 | n | 4 | 78 | 63 | ||
| IIEES SC | KCHF | Z | EPg | E | 2023-09-12 20:21:23 | -0.5 | y | 0 | 130 | 95 | ||
| IIEES SC | KCHF | Z | ESg | E | 2023-09-12 20:21:40 | 0 | y | 0 | 130 | 95 | ||
| IIEES SC | SNGE | Z | EPg | E | 2023-09-12 20:21:31 | -0.2 | y | 0 | 176 | 63 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-09-12 20:21:34 | -0.7 | y | 0 | 205 | 355 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-09-12 20:21:43 | -0.3 | y | 0 | 266 | 2 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-09-12 20:21:50 | 0.8 | y | 0 | 320 | 67 | ||
| IIEES SC | AZR | Z | EPn | E | 2023-09-12 20:21:57 | 1.3 | y | 0 | 368 | 5 | ||
| IIEES SC | GTMR | Z | EPn | E | 2023-09-12 20:21:58 | -0.3 | y | 0 | 387 | 123 | ||
| IIEES SC | QABG | Z | EPn | E | 2023-09-12 20:21:59 | 0.5 | y | 0 | 390 | 68 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-09-12 20:22:01 | 0.4 | y | 0 | 404 | 87 | ||
| IIEES SC | MRD | Z | EPn | E | 2023-09-12 20:22:10 | 0.3 | y | 0 | 482 | 1 | ||
| IIEES SC | GHIR | Z | EPn | E | 2023-09-12 20:23:07 | -3.8 | n | 4 | 973 | 134 | ||
| IIEES SC | BNDS | Z | EPn | E | 2023-09-12 20:23:43 | -4.5 | n | 4 | 1270 | 127 | ||
