Magnitude |
:3.3 |
| Date & Time (UTC) | 2023-09-17 23:31:16.5 |
| Date & Time (Local) | 1402/6/27 03:01:16.5 |
| Location | Lat:34.592 Lon: 45.859 |
| Region | Kermanshah Province, 15 km North of Sar-e pol-e zahab |
Nearest Cities |
|
| 6 km of Bazmirabad, Kermanshah Province | |
| 9 km North of Mirmiru, Kermanshah Province | |
| 14 km North of Qareh belagh, Kermanshah Province | |
| 14 km South of Gardehnu, Kermanshah Province | |
| 15 km North of Sar-e pol-e zahab, Kermanshah Province | |
| Depth | 7 km |
| Agency | |

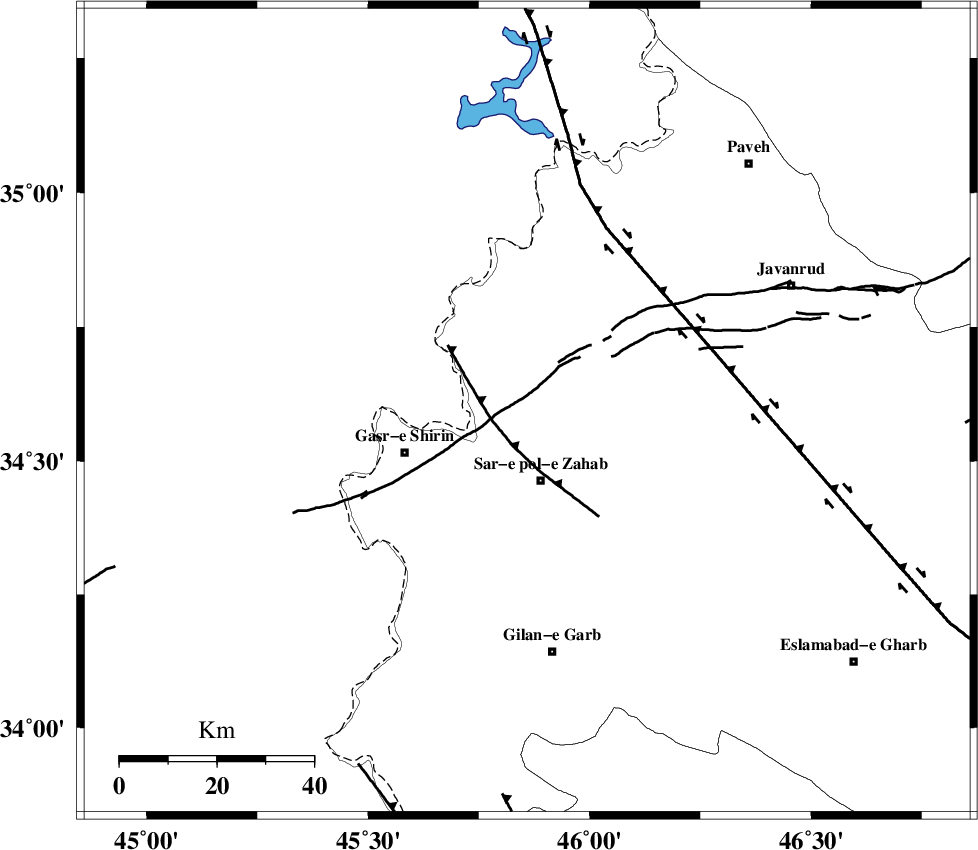

Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 8 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 38 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 80 km | |
| Number of Phases | 15 |
| RMS | 0.4 |
| Number of Stations | 15 |
| Error in Latitude | >5.4 km |
| Error in Longitude | 5.4 km |
| Error in Depth | 4.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 186548 | IIEES SC | DHR | Z | 2 | 1 | 2023-09-17 23:31:25 | 2023-09-18 05:21:00 | n |
| 186549 | IIEES SC | KCHF | Z | 1 | 1 | 2023-09-17 23:31:36 | 2023-09-18 05:21:00 | n |
| 186550 | IIEES SC | SRSL | Z | 1 | 1 | 2023-09-17 23:31:47 | 2023-09-18 05:21:00 | n |
| 186551 | IIEES SC | MAHB | Z | 0.5 | 1 | 2023-09-17 23:31:54 | 2023-09-18 05:21:00 | n |
| 186552 | IIEES SC | HGHA | Z | 0.2 | 1 | 2023-09-17 23:32:02 | 2023-09-18 05:21:00 | n |
| 186553 | IIEES SC | ASAO | Z | 0.09 | 1 | 2023-09-17 23:32:12 | 2023-09-18 05:21:00 | n |
| 186554 | IIEES SC | MRD | Z | 0.08 | 1 | 2023-09-17 23:32:21 | 2023-09-18 05:21:00 | n |
| 186555 | IIEES SC | GHVR | Z | 0.07 | 1 | 2023-09-17 23:32:27 | 2023-09-18 05:21:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DHR | Z | EPg | E | 2023-09-17 23:31:25 | -0.4 | y | 0 | 50 | 76 | ||
| IIEES SC | KCHF | Z | EPg | E | 2023-09-17 23:31:36 | -0.2 | y | 0 | 114 | 108 | ||
| IIEES SC | SNGE | Z | EPg | E | 2023-09-17 23:31:41 | 0.2 | y | 0 | 147 | 68 | ||
| IIEES SC | SRSL | Z | EPg | E | 2023-09-17 23:31:47 | 0.3 | y | 0 | 184 | 348 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-09-17 23:31:54 | -0.2 | y | 0 | 242 | 357 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-09-17 23:32:02 | 0.8 | y | 0 | 291 | 70 | ||
| IIEES SC | AZR | Z | EPn | E | 2023-09-17 23:32:09 | 2.2 | n | 4 | 342 | 2 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-09-17 23:32:07 | -0.1 | y | 0 | 344 | 48 | ||
| IIEES SC | QABG | Z | EPn | E | 2023-09-17 23:32:14 | 4.6 | n | 4 | 361 | 70 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-09-17 23:32:12 | -0.6 | y | 0 | 382 | 91 | ||
| IIEES SC | GTMR | Z | EPn | E | 2023-09-17 23:32:09 | -2.7 | n | 4 | 383 | 128 | ||
| IIEES SC | MRD | Z | EPn | E | 2023-09-17 23:32:21 | -0.2 | y | 0 | 458 | 358 | ||
| IIEES SC | GHVR | Z | EPn | E | 2023-09-17 23:32:27 | 0.9 | y | 0 | 495 | 91 | ||
| IIEES SC | DHK1 | Z | EPn | E | 2023-09-17 23:32:20 | -13.6 | n | 4 | 554 | 211 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-09-17 23:32:32 | -2.2 | n | 4 | 557 | 322 | ||
