Magnitude |
:3.5 |
| Date & Time (UTC) | 2023-09-19 14:05:08.1 |
| Date & Time (Local) | 1402/6/28 17:35:08.1 |

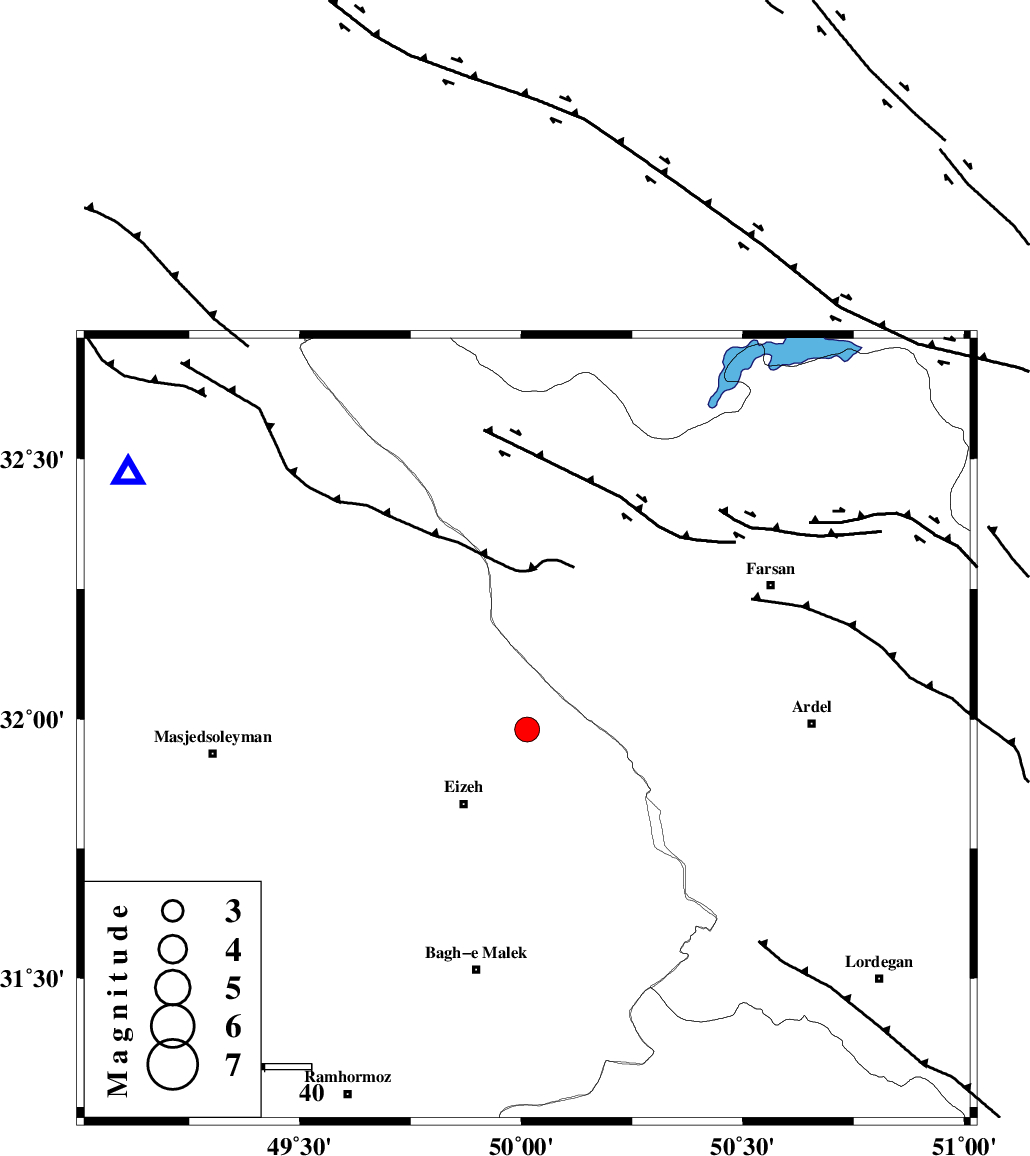

| Location | Lat:31.98 Lon: 50.013 |
| Region | Khoozestan Province, 21 km North-East of Izeh |
Nearest Cities |
|
| 18 km East of Torshak, Khoozestan Province | |
| 21 km North East of Izeh, Khoozestan Province | |
| 23 km North East of Rasvand, Khoozestan Province | |
| 31 km North East of Chenarestan, Khoozestan Province | |
| 36 km North West of Dehdez, Khoozestan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 20 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 22 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 23 km | |
| Number of Phases | 18 |
| RMS | 0.3 |
| Number of Stations | 18 |
| Error in Latitude | >1.5 km |
| Error in Longitude | 1.5 km |
| Error in Depth | 8.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 186615 | IIEES SC | GTMR | Z | 3 | 1 | 2023-09-19 14:05:25 | 2023-09-20 04:57:00 | n |
| 186616 | IIEES SC | ASAO | Z | 0.4 | 1 | 2023-09-19 14:05:52 | 2023-09-20 04:57:00 | n |
| 186617 | IIEES SC | GHVR | Z | 0.4 | 1 | 2023-09-19 14:05:53 | 2023-09-20 04:57:00 | n |
| 186618 | IIEES SC | KCHF | Z | 0.2 | 1 | 2023-09-19 14:06:02 | 2023-09-20 04:57:00 | n |
| 186619 | IIEES SC | TAFT | Z | 0.08 | 1 | 2023-09-19 14:06:05 | 2023-09-20 04:57:00 | n |
| 186620 | IIEES SC | SNGE | Z | 0.04 | 1 | 2023-09-19 14:06:08 | 2023-09-20 04:57:00 | n |
| 186621 | IIEES SC | YZKH | Z | 0.09 | 1 | 2023-09-19 14:06:10 | 2023-09-20 04:57:00 | n |
| 186622 | IIEES SC | GHIR | Z | 0.02 | 1 | 2023-09-19 14:06:18 | 2023-09-20 04:57:00 | n |
| 186623 | IIEES SC | TABS | Z | 0.03 | 1 | 2023-09-19 14:06:41 | 2023-09-20 04:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | EPg | E | 2023-09-19 14:05:25 | 0.1 | y | 0 | 101 | 303 | ||
| IIEES SC | GTMR | Z | ESg | E | 2023-09-19 14:05:37 | -0.3 | n | 4 | 101 | 303 | ||
| IIEES SC | AHWZ | Z | EPg | E | 2023-09-19 14:05:36 | 4.2 | n | 4 | 148 | 241 | ||
| IIEES SC | NASN | Z | EPn | E | 2023-09-19 14:05:50 | -0.5 | y | 0 | 278 | 71 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-09-19 14:05:52 | 0.6 | y | 0 | 285 | 0 | ||
| IIEES SC | GHVR | Z | EPn | E | 2023-09-19 14:05:53 | 0.3 | y | 0 | 300 | 23 | ||
| IIEES SC | KCHF | Z | EPn | E | 2023-09-19 14:06:02 | -0.4 | y | 0 | 376 | 313 | ||
| IIEES SC | TAFT | Z | EPn | E | 2023-09-19 14:06:05 | -0.1 | y | 0 | 395 | 94 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-09-19 14:06:09 | 3.2 | n | 4 | 404 | 345 | ||
| IIEES SC | QABG | Z | EPn | E | 2023-09-19 14:06:07 | -0.2 | y | 0 | 416 | 355 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-09-19 14:06:08 | -0.1 | y | 0 | 425 | 324 | ||
| IIEES SC | YZKH | Z | EPn | E | 2023-09-19 14:06:10 | 0.6 | y | 0 | 434 | 84 | ||
| IIEES SC | MEH | Z | EPn | E | 2023-09-19 14:06:11 | 0 | y | 0 | 441 | 99 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-09-19 14:06:12 | 0.1 | y | 0 | 453 | 312 | ||
| IIEES SC | GHIR | Z | EPn | E | 2023-09-19 14:06:18 | 0.1 | y | 0 | 500 | 145 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-09-19 14:06:34 | -0.6 | y | 0 | 632 | 318 | ||
| IIEES SC | TABS | Z | EPn | E | 2023-09-19 14:06:41 | -0.7 | y | 0 | 691 | 74 | ||
| IIEES SC | SHRO | Z | EPn | E | 2023-09-19 14:06:34 | -9.8 | n | 4 | 712 | 51 | ||
