Magnitude |
:4.3 |
| Date & Time (UTC) | 2023-09-21 04:02:36.4 |
| Date & Time (Local) | 1402/6/30 07:32:36.4 |

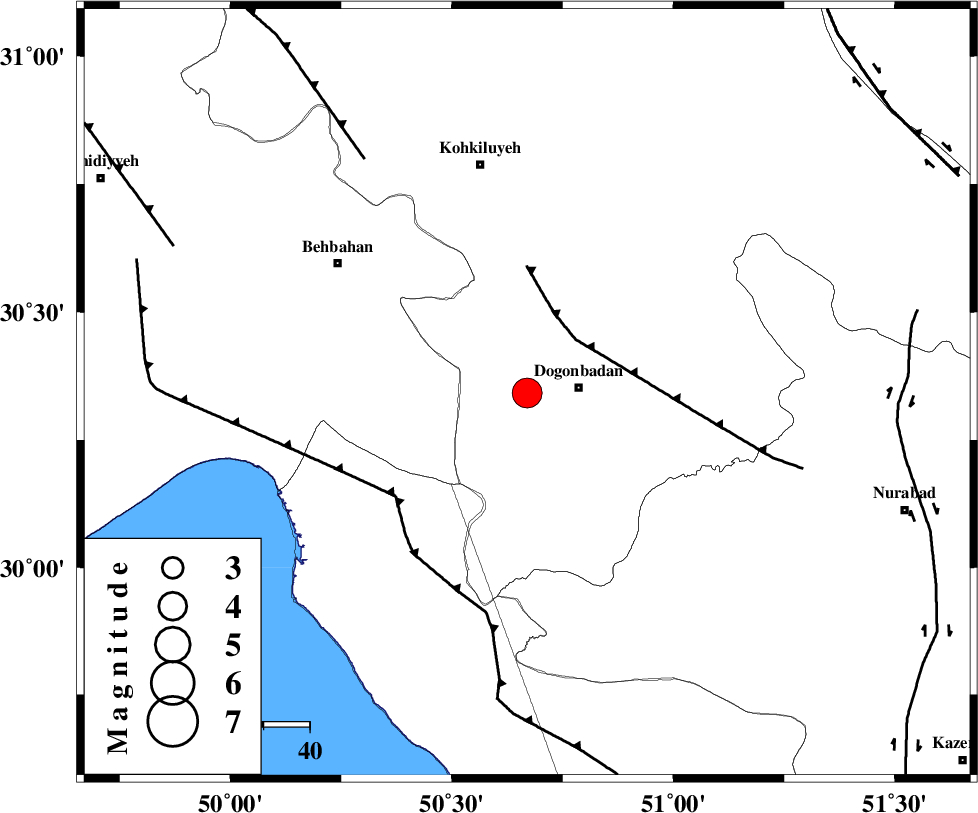

| Location | Lat:30.342 Lon: 50.67 |
| Region | Kohkiluieh va boyerahmad Province, 11 km -West of Dogonbadan |
Nearest Cities |
|
| 11 km West of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 38 km South West of Abdehgah, Kohkiluieh va boyerahmad Province | |
| 43 km North East of Sardasht, Khoozestan Province | |
| 45 km North East of Siyahmakan-e bozorg, Bushehr Province | |
| 47 km West of Basht, Kohkiluieh va boyerahmad Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 16 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 36 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 36 km | |
| Number of Phases | 42 |
| RMS | 0.5 |
| Number of Stations | 42 |
| Error in Latitude | >1 km |
| Error in Longitude | 1 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 186715 | IIEES SC | AHWZ | Z | 10 | 1 | 2023-09-21 04:03:12 | 2023-09-23 05:06:00 | n |
| 186716 | IIEES SC | AHWZ | Z | 10 | 1 | 2023-09-21 04:03:38 | 2023-09-23 05:06:00 | n |
| 186717 | IIEES SC | GTMR | Z | 4 | 1 | 2023-09-21 04:03:18 | 2023-09-23 05:06:00 | n |
| 186718 | IIEES SC | BSR2 | Z | 7 | 1 | 2023-09-21 04:03:21 | 2023-09-23 05:06:00 | n |
| 186719 | IIEES SC | NASN | Z | 0.4 | 1 | 2023-09-21 04:03:26 | 2023-09-23 05:06:00 | n |
| 186720 | IIEES SC | TAFT | Z | 0.6 | 1 | 2023-09-21 04:03:30 | 2023-09-23 05:06:00 | n |
| 186721 | IIEES SC | YZKH | Z | 0.4 | 1 | 2023-09-21 04:03:38 | 2023-09-23 05:06:00 | n |
| 186722 | IIEES SC | GHVR | Z | 1 | 1 | 2023-09-21 04:03:41 | 2023-09-23 05:06:00 | n |
| 186723 | IIEES SC | ASAO | Z | 0.8 | 1 | 2023-09-21 04:03:43 | 2023-09-23 05:06:00 | n |
| 186724 | IIEES SC | KCHF | Z | 0.4 | 1 | 2023-09-21 04:03:53 | 2023-09-23 05:06:00 | n |
| 186725 | IIEES SC | ILBA | Z | 0.3 | 1 | 2023-09-21 04:03:53 | 2023-09-23 05:06:00 | n |
| 186726 | IIEES SC | HGHA | Z | 0.3 | 1 | 2023-09-21 04:03:59 | 2023-09-23 05:06:00 | n |
| 186727 | IIEES SC | QABG | Z | 0.07 | 1 | 2023-09-21 04:03:59 | 2023-09-23 05:06:00 | n |
| 186728 | IIEES SC | THKV | Z | 0.1 | 1 | 2023-09-21 04:04:00 | 2023-09-23 05:06:00 | n |
| 186729 | IIEES SC | BNDS | Z | 0.1 | 1 | 2023-09-21 04:04:01 | 2023-09-23 05:06:00 | n |
| 186730 | IIEES SC | DHR | Z | 0.6 | 1 | 2023-09-21 04:04:02 | 2023-09-23 05:06:00 | n |
| 186731 | IIEES SC | TABS | Z | 0.1 | 1 | 2023-09-21 04:04:12 | 2023-09-23 05:06:00 | n |
| 186732 | IIEES SC | GIDE | Z | 0.05 | 1 | 2023-09-21 04:04:15 | 2023-09-23 05:06:00 | n |
| 186733 | IIEES SC | KBAM | Z | 0.1 | 1 | 2023-09-21 04:04:19 | 2023-09-23 05:06:00 | n |
| 186734 | IIEES SC | ABGH | Z | 0.02 | 1 | 2023-09-21 04:04:24 | 2023-09-23 05:06:00 | n |
| 186735 | IIEES SC | SRSL | Z | 0.2 | 1 | 2023-09-21 04:04:24 | 2023-09-23 05:06:00 | n |
| 186736 | IIEES SC | BSRN | Z | 0.09 | 1 | 2023-09-21 04:04:26 | 2023-09-23 05:06:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KHRK | Z | EPg | E | 2023-09-21 04:03:09 | 11.8 | n | 4 | 125 | 196 | ||
| IIEES SC | AHWZ | Z | EPn | E | 2023-09-21 04:03:12 | 0.7 | y | 0 | 223 | 299 | ||
| IIEES SC | AHWZ | Z | ES | E | 2023-09-21 04:03:38 | 0.3 | y | 0 | 223 | 299 | ||
| IIEES SC | GTMR | Z | EPn | E | 2023-09-21 04:03:18 | -0.3 | y | 0 | 279 | 328 | ||
| IIEES SC | BSR2 | Z | EPn | E | 2023-09-21 04:03:21 | 0.7 | y | 0 | 294 | 269 | ||
| IIEES SC | GHIR | Z | EPn | E | 2023-09-21 04:03:24 | 0.8 | y | 0 | 320 | 135 | ||
| IIEES SC | NASN | Z | EPn | E | 2023-09-21 04:03:26 | -0.4 | y | 0 | 340 | 37 | ||
| IIEES SC | TAFT | Z | EPn | E | 2023-09-21 04:03:30 | 0.6 | y | 0 | 368 | 65 | ||
| IIEES SC | MEH | Z | EPn | E | 2023-09-21 04:03:34 | 0.7 | y | 0 | 395 | 73 | ||
| IIEES SC | YZKH | Z | EPn | E | 2023-09-21 04:03:38 | -0.1 | y | 0 | 437 | 59 | ||
| IIEES SC | GHVR | Z | EPn | E | 2023-09-21 04:03:41 | 0 | y | 0 | 462 | 7 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-09-21 04:03:43 | 0.3 | y | 0 | 470 | 353 | ||
| IIEES SC | KCHF | Z | EPn | E | 2023-09-21 04:03:53 | -0.2 | y | 0 | 554 | 322 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-09-21 04:03:53 | 0.2 | y | 0 | 557 | 311 | ||
| IIEES SC | KRBR | Z | EPn | E | 2023-09-21 04:03:42 | -15 | n | 4 | 588 | 94 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-09-21 04:03:59 | 1.5 | y | 0 | 595 | 343 | ||
| IIEES SC | QABG | Z | EPn | E | 2023-09-21 04:03:59 | 0 | y | 0 | 604 | 350 | ||
| IIEES SC | THKV | Z | EPn | E | 2023-09-21 04:04:00 | -0.4 | y | 0 | 618 | 2 | ||
| IIEES SC | BNDS | Z | EPn | E | 2023-09-21 04:04:01 | -0.5 | y | 0 | 628 | 121 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-09-21 04:04:02 | -0.2 | y | 0 | 629 | 320 | ||
| IIEES SC | ANJ | Z | EPn | E | 2023-09-21 04:04:03 | -0.8 | y | 0 | 644 | 28 | ||
| IIEES SC | TABS | Z | EPn | E | 2023-09-21 04:04:12 | -0.5 | y | 0 | 711 | 59 | ||
| IIEES SC | GIDE | Z | EPn | E | 2023-09-21 04:04:15 | 0.3 | y | 0 | 734 | 354 | ||
| IIEES SC | GLO | Z | EPn | E | 2023-09-21 04:04:16 | 0 | y | 0 | 744 | 23 | ||
| IIEES SC | KBAM | Z | EPn | E | 2023-09-21 04:04:19 | 0.5 | y | 0 | 765 | 100 | ||
| IIEES SC | SHRO | Z | EPn | E | 2023-09-21 04:04:13 | -10.9 | n | 4 | 802 | 38 | ||
| IIEES SC | ABGH | Z | EPn | E | 2023-09-21 04:04:24 | 0.3 | y | 0 | 806 | 28 | ||
| IIEES SC | UOSS | Z | EPn | E | 2023-09-21 04:04:19 | -5.2 | n | 4 | 810 | 138 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-09-21 04:04:24 | -0.6 | y | 0 | 814 | 323 | ||
| IIEES SC | JSSH | Z | EPn | E | 2023-09-21 04:04:26 | 0.4 | y | 0 | 823 | 127 | ||
| IIEES SC | BSRN | Z | EPn | E | 2023-09-21 04:04:26 | -0.7 | y | 0 | 826 | 77 | ||
| IIEES SC | KKHK | Z | EPn | E | 2023-09-21 04:04:30 | -0.7 | y | 0 | 861 | 61 | ||
| IIEES SC | RAYN | Z | EPn | E | 2023-09-21 04:04:37 | -0.3 | y | 0 | 913 | 214 | ||
| IIEES SC | SBZV | Z | EPn | E | 2023-09-21 04:04:39 | -0.5 | y | 0 | 931 | 44 | ||
| IIEES SC | MRVT | Z | EPn | E | 2023-09-21 04:04:42 | -0.6 | y | 0 | 954 | 32 | ||
| IIEES SC | SHRT | Z | EPn | E | 2023-09-21 04:04:46 | 0.2 | y | 0 | 980 | 68 | ||
| IIEES SC | BJRD | Z | EPn | E | 2023-09-21 04:04:47 | -4.8 | n | 4 | 1026 | 37 | ||
| IIEES SC | TBJM | Z | EPn | E | 2023-09-21 04:04:55 | -0.4 | y | 0 | 1057 | 59 | ||
| IIEES SC | IRSR | Z | EPn | E | 2023-09-21 04:04:55 | -1.3 | y | 0 | 1064 | 111 | ||
| IIEES SC | JRKH | Z | EPn | E | 2023-09-21 04:05:00 | -0.2 | y | 0 | 1094 | 56 | ||
| IIEES SC | KAGH | Z | EPn | E | 2023-09-21 04:05:04 | -0.5 | y | 0 | 1130 | 50 | ||
| IIEES SC | SRVN | Z | EPn | E | 2023-09-21 04:05:12 | 0.5 | y | 0 | 1190 | 106 | ||
