Magnitude |
:3 |
| Date & Time (UTC) | 2023-09-21 17:08:10.9 |
| Date & Time (Local) | 1402/6/30 20:38:10.9 |
| Location | Lat:30.583 Lon: 57.521 |
| Region | Kerman Province, 54 km North-East of Kerman |
Nearest Cities |
|
| 25 km North East of Dehlulu, Kerman Province | |
| 26 km North West of Shahdad, Kerman Province | |
| 36 km North West of Estehkam, Kerman Province | |
| 38 km East of Harjand, Kerman Province | |
| 43 km North of Sirch, Kerman Province | |
| Depth | 12 km |
| Agency | |

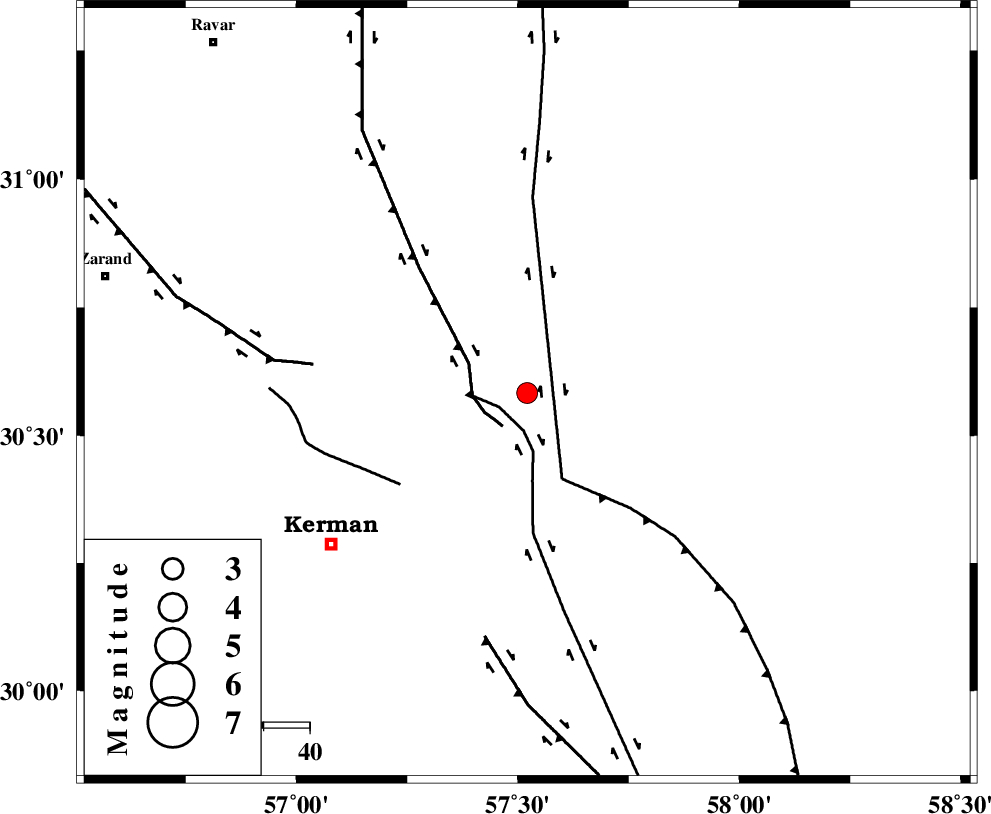

Faults within 150 km: |
|
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 7 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 9 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 20 km | |
| Number of Phases | 16 |
| RMS | 0.5 |
| Number of Stations | 16 |
| Error in Latitude | >1.5 km |
| Error in Longitude | 1.5 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 186766 | IIEES SC | KBAM | Z | 0.6 | 1 | 2023-09-21 17:08:40 | 2023-09-23 05:48:00 | n |
| 186767 | IIEES SC | KBAM | Z | 0.6 | 1 | 2023-09-21 17:09:03 | 2023-09-23 05:48:00 | n |
| 186768 | IIEES SC | BSRN | Z | 0.2 | 1 | 2023-09-21 17:09:11 | 2023-09-23 05:48:00 | n |
| 186769 | IIEES SC | BSRN | Z | 0.2 | 1 | 2023-09-21 17:08:45 | 2023-09-23 05:48:00 | n |
| 186770 | IIEES SC | TABS | Z | 0.1 | 1 | 2023-09-21 17:09:02 | 2023-09-23 05:48:00 | n |
| 186771 | IIEES SC | YZKH | Z | 0.06 | 1 | 2023-09-21 17:09:01 | 2023-09-23 05:48:00 | n |
| 186772 | IIEES SC | TAFT | Z | 0.06 | 1 | 2023-09-21 17:09:01 | 2023-09-23 05:48:00 | n |
| 186773 | IIEES SC | BNDS | Z | 0.01 | 1 | 2023-09-21 17:09:05 | 2023-09-23 05:48:00 | n |
| 186774 | IIEES SC | SHRT | Z | 0.03 | 1 | 2023-09-21 17:09:12 | 2023-09-23 05:48:00 | n |
| 186775 | IIEES SC | TBJM | Z | 0.02 | 1 | 2023-09-21 17:09:31 | 2023-09-23 05:48:00 | n |
| 186776 | IIEES SC | SRVN | Z | 0.01 | 1 | 2023-09-21 17:09:30 | 2023-09-23 05:48:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KRBR | Z | EPg | E | 2023-09-21 17:08:10 | -17.3 | n | 4 | 99 | 228 | ||
| IIEES SC | KBAM | Z | EPg | E | 2023-09-21 17:08:40 | -0.1 | y | 0 | 184 | 151 | ||
| IIEES SC | KBAM | Z | ESg | E | 2023-09-21 17:09:03 | 0.6 | y | 0 | 184 | 151 | ||
| IIEES SC | BSRN | Z | EPn | E | 2023-09-21 17:08:45 | -0.7 | y | 0 | 216 | 45 | ||
| IIEES SC | BSRN | Z | ES | E | 2023-09-21 17:09:11 | 0.3 | y | 0 | 216 | 45 | ||
| IIEES SC | MEH | Z | EPn | E | 2023-09-21 17:08:55 | 0.2 | y | 0 | 292 | 288 | ||
| IIEES SC | TABS | Z | EPn | E | 2023-09-21 17:09:02 | 0.9 | y | 0 | 342 | 354 | ||
| IIEES SC | YZKH | Z | EPn | E | 2023-09-21 17:09:01 | 0.2 | y | 0 | 343 | 306 | ||
| IIEES SC | TAFT | Z | EPn | E | 2023-09-21 17:09:01 | -0.2 | y | 0 | 344 | 292 | ||
| IIEES SC | BNDS | Z | EPn | E | 2023-09-21 17:09:05 | -0.1 | y | 0 | 377 | 200 | ||
| IIEES SC | KKHK | Z | EPn | E | 2023-09-21 17:09:08 | -0.8 | y | 0 | 408 | 15 | ||
| IIEES SC | SHRT | Z | EPn | E | 2023-09-21 17:09:12 | 0.2 | y | 0 | 429 | 38 | ||
| IIEES SC | GHIR | Z | EPn | E | 2023-09-21 17:09:22 | -0.1 | y | 0 | 508 | 240 | ||
| IIEES SC | TBJM | Z | EPn | E | 2023-09-21 17:09:31 | -0.1 | y | 0 | 582 | 27 | ||
| IIEES SC | SRVN | Z | EPn | E | 2023-09-21 17:09:30 | -1.6 | y | 0 | 592 | 127 | ||
| IIEES SC | SHRO | Z | EPn | E | 2023-09-21 17:09:25 | -9.8 | n | 4 | 618 | 347 | ||
