Magnitude |
:3 |
| Date & Time (UTC) | 2023-10-04 21:41:00.7 |
| Date & Time (Local) | 1402/7/13 01:11:00.7 |

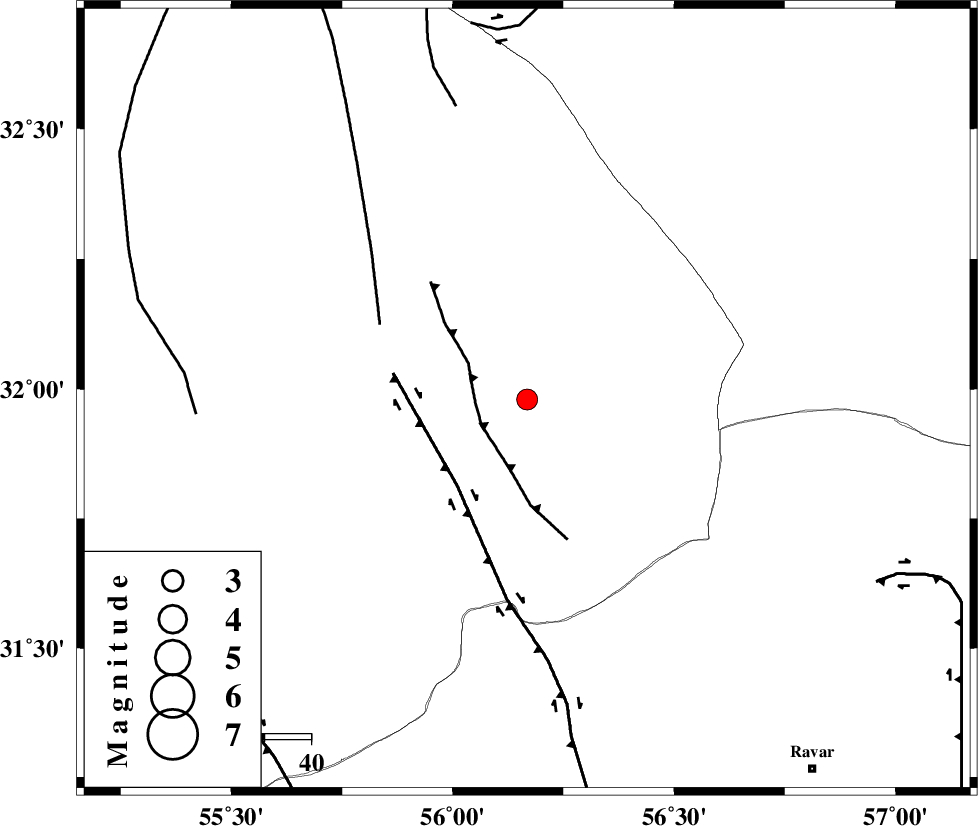

| Location | Lat:31.98 Lon: 56.168 |
| Region | Yazd Province, 84 km North-East of Bafq |
Nearest Cities |
|
| 18 km North East of Behabad, Yazd Province | |
| 29 km North of Benestan, Yazd Province | |
| 35 km North of Asfih, Yazd Province | |
| 45 km North East of Kushk, Yazd Province | |
| 59 km North East of Basab, Yazd Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 11 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 24 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 35 km | |
| Number of Phases | 15 |
| RMS | 0.2 |
| Number of Stations | 15 |
| Error in Latitude | >0.8 km |
| Error in Longitude | 0.8 km |
| Error in Depth | 3.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 187224 | IIEES SC | YZKH | Z | 0.4 | 1 | 2023-10-04 21:41:26 | 2023-10-07 05:26:00 | n |
| 187225 | IIEES SC | TAFT | Z | 0.2 | 1 | 2023-10-04 21:41:31 | 2023-10-07 05:26:00 | n |
| 187226 | IIEES SC | BSRN | Z | 0.07 | 1 | 2023-10-04 21:41:43 | 2023-10-07 05:26:00 | n |
| 187227 | IIEES SC | NASN | Z | 0.03 | 1 | 2023-10-04 21:41:49 | 2023-10-07 05:26:00 | n |
| 187228 | IIEES SC | SHRT | Z | 0.03 | 1 | 2023-10-04 21:42:01 | 2023-10-07 05:26:00 | n |
| 187229 | IIEES SC | TBJM | Z | 0.04 | 1 | 2023-10-04 21:42:14 | 2023-10-07 05:26:00 | n |
| 187230 | IIEES SC | MRVT | Z | 0.01 | 1 | 2023-10-04 21:42:27 | 2023-10-07 05:26:00 | n |
| 187231 | IIEES SC | ASAO | Z | 0.01 | 1 | 2023-10-04 21:42:28 | 2023-10-07 05:26:00 | n |
| 187232 | IIEES SC | BJRD | Z | 0.008 | 1 | 2023-10-04 21:42:28 | 2023-10-07 05:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | YZKH | Z | EPg | E | 2023-10-04 21:41:26 | -0.2 | y | 0 | 156 | 287 | ||
| IIEES SC | MEH | Z | EPg | E | 2023-10-04 21:41:27 | -0.1 | y | 0 | 161 | 246 | ||
| IIEES SC | TAFT | Z | EPg | E | 2023-10-04 21:41:31 | 0 | y | 0 | 191 | 261 | ||
| IIEES SC | TABS | Z | EPn | E | 2023-10-04 21:41:34 | 0.2 | y | 0 | 205 | 26 | ||
| IIEES SC | KRBR | Z | EPn | E | 2023-10-04 21:41:16 | -21.2 | n | 4 | 229 | 166 | ||
| IIEES SC | BSRN | Z | EPn | E | 2023-10-04 21:41:43 | -0.2 | y | 0 | 280 | 90 | ||
| IIEES SC | NASN | Z | EPn | E | 2023-10-04 21:41:49 | 0 | y | 0 | 329 | 286 | ||
| IIEES SC | SHRT | Z | EPn | E | 2023-10-04 21:42:01 | 0.1 | y | 0 | 428 | 64 | ||
| IIEES SC | SBZV | Z | EPn | E | 2023-10-04 21:42:12 | 0.7 | y | 0 | 507 | 15 | ||
| IIEES SC | GHIR | Z | EPn | E | 2023-10-04 21:42:12 | 0.1 | y | 0 | 512 | 217 | ||
| IIEES SC | TBJM | Z | EPn | E | 2023-10-04 21:42:14 | 0.2 | y | 0 | 531 | 47 | ||
| IIEES SC | JRKH | Z | EPn | E | 2023-10-04 21:42:32 | 11 | n | 4 | 582 | 42 | ||
| IIEES SC | MRVT | Z | EPn | E | 2023-10-04 21:42:27 | 0.1 | y | 0 | 630 | 359 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-10-04 21:42:28 | -0.1 | y | 0 | 639 | 296 | ||
| IIEES SC | BJRD | Z | EPn | E | 2023-10-04 21:42:28 | -0.3 | y | 0 | 645 | 10 | ||
