Magnitude |
:4 |
| Date & Time (UTC) | 2023-10-05 20:31:33.1 |
| Date & Time (Local) | 1402/7/14 00:01:33.1 |

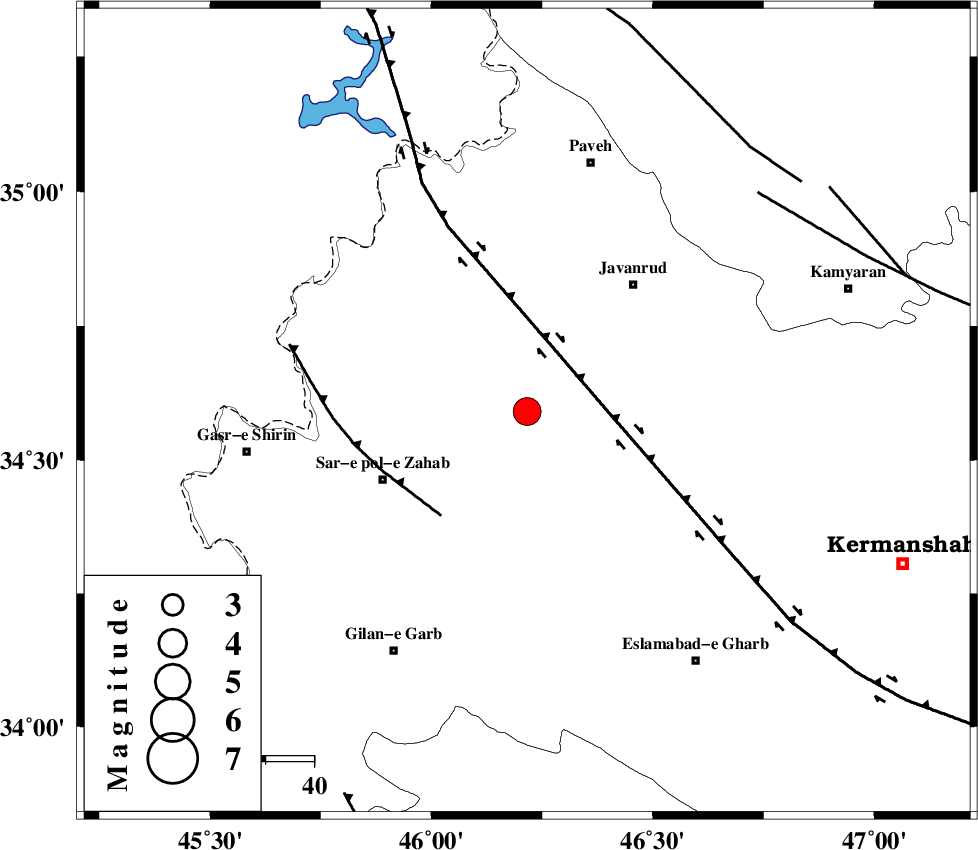

| Location | Lat:34.59 Lon: 46.216 |
| Region | Kermanshah Province, 33 km North-East of Sar-e pol-e zahab |
Nearest Cities |
|
| 14 km of Mirabad, Kermanshah Province | |
| 14 km North West of Zavleh olia, Kermanshah Province | |
| 16 km South of Qolqoleh, Kermanshah Province | |
| 22 km North East of Rijab, Kermanshah Province | |
| 26 km West of Dolatabad, Kermanshah Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 18 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 28 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 66 km | |
| Number of Phases | 16 |
| RMS | 0.7 |
| Number of Stations | 16 |
| Error in Latitude | >1.8 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 1.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 187273 | IIEES SC | DHR | Z | 200 | 1 | 2023-10-05 20:31:36 | 2023-10-07 07:28:00 | n |
| 187274 | IIEES SC | DHR | Z | 200 | 1 | 2023-10-05 20:31:39 | 2023-10-07 07:28:00 | n |
| 187275 | IIEES SC | SRSL | Z | 6 | 1 | 2023-10-05 20:32:04 | 2023-10-07 07:28:00 | n |
| 187276 | IIEES SC | SRSL | Z | 6 | 1 | 2023-10-05 20:32:28 | 2023-10-07 07:28:00 | n |
| 187277 | IIEES SC | MAHB | Z | 3 | 1 | 2023-10-05 20:32:12 | 2023-10-07 07:28:00 | n |
| 187278 | IIEES SC | ASAO | Z | 0.3 | 1 | 2023-10-05 20:32:25 | 2023-10-07 07:28:00 | n |
| 187279 | IIEES SC | GTMR | Z | 0.4 | 1 | 2023-10-05 20:32:24 | 2023-10-07 07:28:00 | n |
| 187280 | IIEES SC | MRD | Z | 0.3 | 1 | 2023-10-05 20:32:38 | 2023-10-07 07:28:00 | n |
| 187281 | IIEES SC | GHVR | Z | 0.3 | 1 | 2023-10-05 20:32:39 | 2023-10-07 07:28:00 | n |
| 187282 | IIEES SC | GURO | Z | 0.09 | 1 | 2023-10-05 20:32:51 | 2023-10-07 07:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DHR | Z | EPg | E | 2023-10-05 20:31:36 | -1 | y | 0 | 20 | 52 | ||
| IIEES SC | DHR | Z | ESg | E | 2023-10-05 20:31:39 | -0.7 | y | 0 | 20 | 52 | ||
| IIEES SC | SRSL | Z | EPg | E | 2023-10-05 20:32:04 | -0.6 | y | 0 | 194 | 338 | ||
| IIEES SC | SRSL | Z | ESg | E | 2023-10-05 20:32:28 | 0.6 | y | 0 | 194 | 338 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-10-05 20:32:12 | 0.3 | y | 0 | 246 | 349 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-10-05 20:32:15 | 1.6 | n | 4 | 261 | 68 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-10-05 20:32:21 | 0.4 | y | 0 | 321 | 44 | ||
| IIEES SC | QABG | Z | EPn | E | 2023-10-05 20:32:23 | 0.5 | y | 0 | 331 | 68 | ||
| IIEES SC | AZR | Z | EPn | E | 2023-10-05 20:32:24 | 0.3 | y | 0 | 343 | 356 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-10-05 20:32:25 | 0.8 | y | 0 | 350 | 91 | ||
| IIEES SC | GTMR | Z | EPn | E | 2023-10-05 20:32:24 | -1 | y | 0 | 357 | 131 | ||
| IIEES SC | GIDE | Z | EPn | E | 2023-10-05 20:32:37 | 4.1 | n | 4 | 417 | 52 | ||
| IIEES SC | MRD | Z | EPn | E | 2023-10-05 20:32:38 | 0.2 | y | 0 | 460 | 354 | ||
| IIEES SC | GHVR | Z | EPn | E | 2023-10-05 20:32:39 | 0.9 | y | 0 | 462 | 92 | ||
| IIEES SC | MAKU | Z | EPn | E | 2023-10-05 20:32:49 | 0.2 | y | 0 | 546 | 346 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-10-05 20:32:51 | -1.1 | y | 0 | 577 | 320 | ||
