Magnitude |
:3.2 |
| Date & Time (UTC) | 2023-10-15 12:23:20.3 |
| Date & Time (Local) | 1402/7/23 15:53:20.3 |

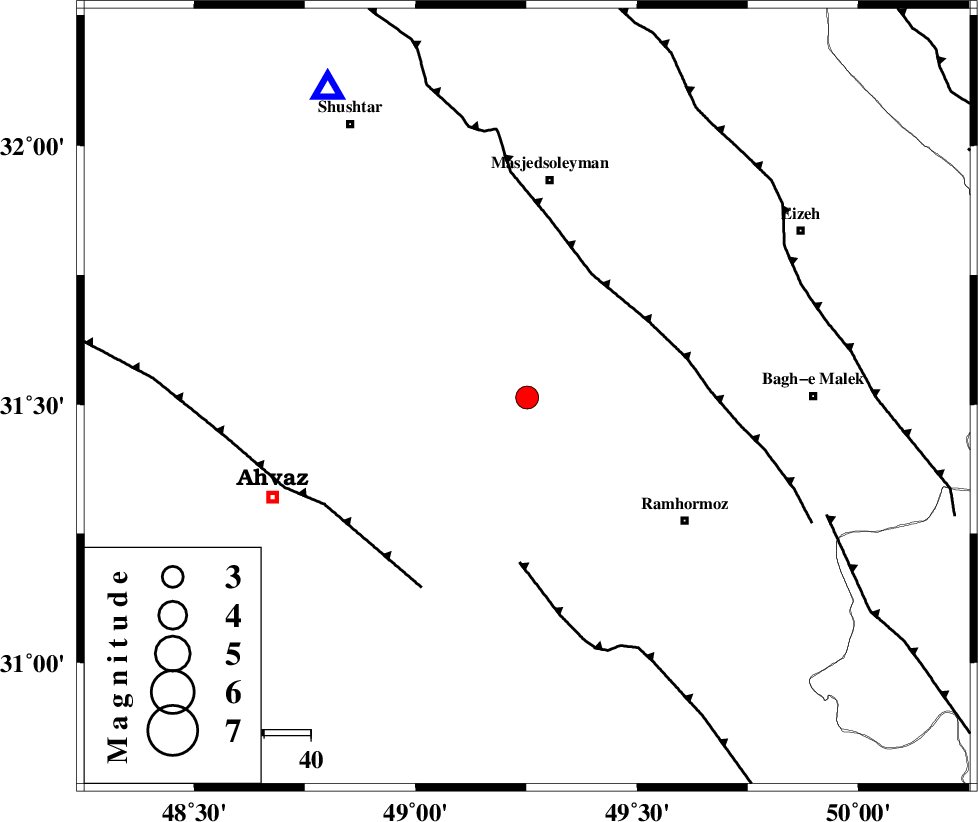

| Location | Lat:31.514 Lon: 49.252 |
| Region | Khoozestan Province, 47 km South of Masjed Soleyman |
Nearest Cities |
|
| 13 km West of Gazin, Khoozestan Province | |
| 27 km North West of Haftgol, Khoozestan Province | |
| 28 km West of Jaru, Khoozestan Province | |
| 31 km East of Talieh, Khoozestan Province | |
| 32 km North West of Marbacheh, Khoozestan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 30 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 36 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 47 km | |
| Number of Phases | 18 |
| RMS | 0.3 |
| Number of Stations | 18 |
| Error in Latitude | >1.2 km |
| Error in Longitude | 1.2 km |
| Error in Depth | 6.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 187870 | IIEES SC | AHWZ | Z | 3 | 1 | 2023-10-15 12:23:30 | 2023-10-16 05:07:00 | n |
| 187871 | IIEES SC | GTMR | Z | 1 | 1 | 2023-10-15 12:23:38 | 2023-10-16 05:07:00 | n |
| 187872 | IIEES SC | BSR2 | Z | 0.6 | 1 | 2023-10-15 12:23:53 | 2023-10-16 05:07:00 | n |
| 187873 | IIEES SC | ASAO | Z | 0.09 | 1 | 2023-10-15 12:24:11 | 2023-10-16 05:07:00 | n |
| 187874 | IIEES SC | ILBA | Z | 0.05 | 1 | 2023-10-15 12:24:14 | 2023-10-16 05:07:00 | n |
| 187875 | IIEES SC | GHVR | Z | 0.1 | 1 | 2023-10-15 12:24:15 | 2023-10-16 05:07:00 | n |
| 187876 | IIEES SC | DHR | Z | 0.09 | 1 | 2023-10-15 12:24:22 | 2023-10-16 05:07:00 | n |
| 187877 | IIEES SC | GHIR | Z | 0.01 | 1 | 2023-10-15 12:24:31 | 2023-10-16 05:07:00 | n |
| 187878 | IIEES SC | YZKH | Z | 0.02 | 1 | 2023-10-15 12:24:32 | 2023-10-16 05:07:00 | n |
| 187879 | IIEES SC | CHTH | Z | 0.02 | 1 | 2023-10-15 12:24:32 | 2023-10-16 05:07:00 | n |
| 187880 | IIEES SC | SRSL | Z | 0.04 | 1 | 2023-10-15 12:24:46 | 2023-10-16 05:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AHWZ | Z | EPg | E | 2023-10-15 12:23:30 | -0.2 | y | 0 | 61 | 251 | ||
| IIEES SC | GTMR | Z | EPg | E | 2023-10-15 12:23:38 | 0.4 | y | 0 | 107 | 353 | ||
| IIEES SC | GTMR | Z | ESg | E | 2023-10-15 12:23:59 | 8.1 | n | 4 | 107 | 353 | ||
| IIEES SC | BSR2 | Z | EPn | E | 2023-10-15 12:23:53 | 0.2 | y | 0 | 207 | 229 | ||
| IIEES SC | KHRK | Z | EPn | E | 2023-10-15 12:24:01 | 0.2 | y | 0 | 270 | 158 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-10-15 12:24:11 | 0.1 | y | 0 | 344 | 12 | ||
| IIEES SC | NASN | Z | EPn | E | 2023-10-15 12:24:13 | -0.1 | y | 0 | 364 | 67 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-10-15 12:24:14 | 0.2 | y | 0 | 370 | 309 | ||
| IIEES SC | GHVR | Z | EPn | E | 2023-10-15 12:24:15 | 0.3 | y | 0 | 378 | 30 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-10-15 12:24:23 | 0.3 | y | 0 | 442 | 355 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-10-15 12:24:22 | -0.6 | y | 0 | 443 | 323 | ||
| IIEES SC | QABG | Z | EPn | E | 2023-10-15 12:24:26 | -0.1 | y | 0 | 466 | 4 | ||
| IIEES SC | TAFT | Z | EPn | E | 2023-10-15 12:24:23 | -3.3 | n | 4 | 467 | 87 | ||
| IIEES SC | GHIR | Z | EPn | E | 2023-10-15 12:24:31 | -0.1 | y | 0 | 508 | 135 | ||
| IIEES SC | YZKH | Z | EPn | E | 2023-10-15 12:24:32 | -0.2 | y | 0 | 514 | 79 | ||
| IIEES SC | CHTH | Z | EPn | E | 2023-10-15 12:24:32 | -0.5 | y | 0 | 517 | 20 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-10-15 12:24:46 | -0.4 | y | 0 | 630 | 326 | ||
| IIEES SC | TABS | Z | EPn | E | 2023-10-15 12:25:03 | -1.2 | y | 0 | 776 | 72 | ||
