مشخصات زلزله

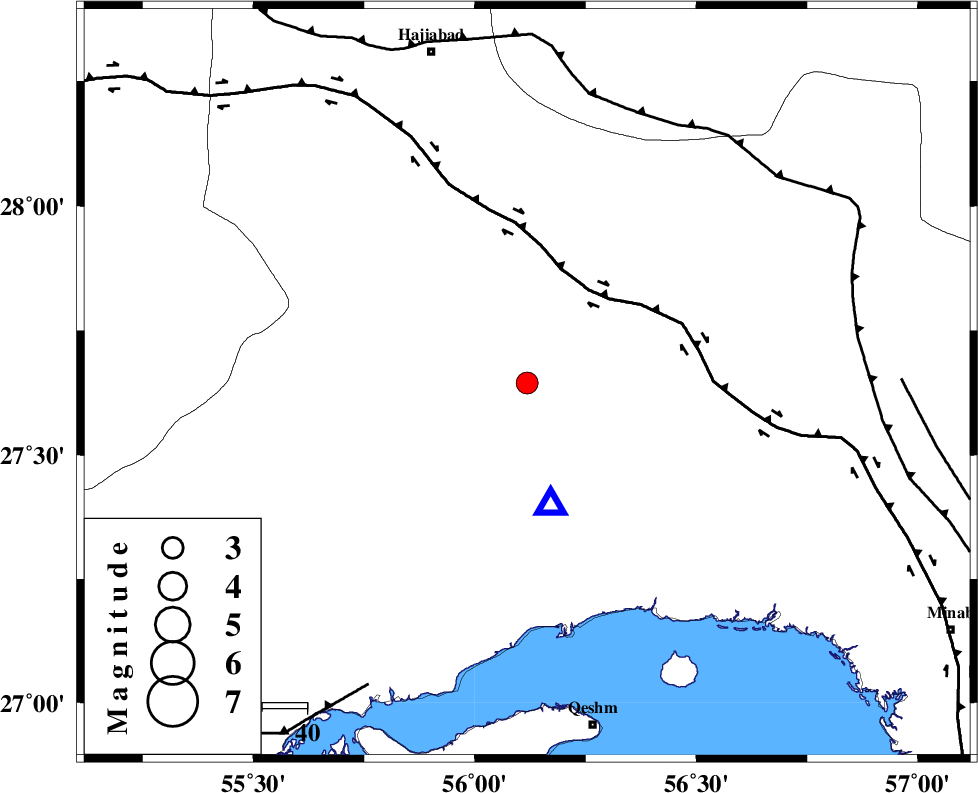

 Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
:3.1
Date & Time (UTC) 2023-10-28 19:57:30.3
Date & Time (Local) 1402/8/6  23:27:30.3
Location Lat:27.645 Lon: 56.118
Region Hormozgan Province, 54 km North-West of Bandar-e abbas
Nearest Cities
21 km North East of Fin, Hormozgan Province
43 km South West of Fareqan, Hormozgan Province
54 km North West of Bandar-e abbas, Hormozgan Province
73 km South East of Darz, Fars Province
77 km South East of Hajiabad, Hormozgan Province
Depth 12 km
Agency
Faults within 150 km:
HZF2 (Length: 437 km) , Distance to epicenter: 25 km
MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 65 km
MFF1 (Length: 180 km) , Distance to epicenter: 76 km
Number of Phases 13
RMS 0.2
Number of Stations 13
Error in Latitude >1.1 km
Error in Longitude 1.1 km
Error in Depth 301.5 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
188519IIEES SCKBAMZ 0.112023-10-28 19:58:132023-10-29 05:52:00n
188520IIEES SCUOSSZ 0.0512023-10-28 19:58:152023-10-29 05:52:00n
188521IIEES SCTAFTZ 0.0412023-10-28 19:58:402023-10-29 05:52:00n
188522IIEES SCYZKHZ 0.0112023-10-28 19:58:462023-10-29 05:52:00n
188523IIEES SCBSRNZ 0.0212023-10-28 19:58:482023-10-29 05:52:00n
188524IIEES SCKLNJZ 0.0212023-10-28 19:58:492023-10-29 05:52:00n
188525IIEES SCSRVNZ 0.00812023-10-28 19:58:552023-10-29 05:52:00n
188526IIEES SCNASNZ 0.0112023-10-28 19:58:592023-10-29 05:52:00n
188527IIEES SCANARZ 0.00912023-10-28 19:58:592023-10-29 05:52:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCKRBRZ EPn E2023-10-28 19:58:02-8.9n426614
IIEES SCKBAMZ EPn E2023-10-28 19:58:130y028254
IIEES SCUOSSZ EPn E2023-10-28 19:58:150.1y0299178
IIEES SCMEHZ EPn E2023-10-28 19:58:330.8y0440341
IIEES SCTAFTZ EPn E2023-10-28 19:58:400.7y0490337
IIEES SCZHSFZ EPn E2023-10-28 19:58:40-0.3y050464
IIEES SCYZKHZ EPn E2023-10-28 19:58:460.4y0546344
IIEES SCBSRNZ EPn E2023-10-28 19:58:480.1y056031
IIEES SCKLNJZ EPn E2023-10-28 19:58:49-0.4y0576310
IIEES SCSRVNZ EPn E2023-10-28 19:58:550.1y062192
IIEES SCNASNZ EPn E2023-10-28 19:58:59-0.1y0654331
IIEES SCANARZ EPn E2023-10-28 19:58:59-0.1y0656340
IIEES SCTABSZ EPn E2023-10-28 19:59:042.7n46728
