Magnitude |
:3.1 |
| Date & Time (UTC) | 2023-11-10 18:05:43.9 |
| Date & Time (Local) | 1402/8/19 21:35:43.9 |

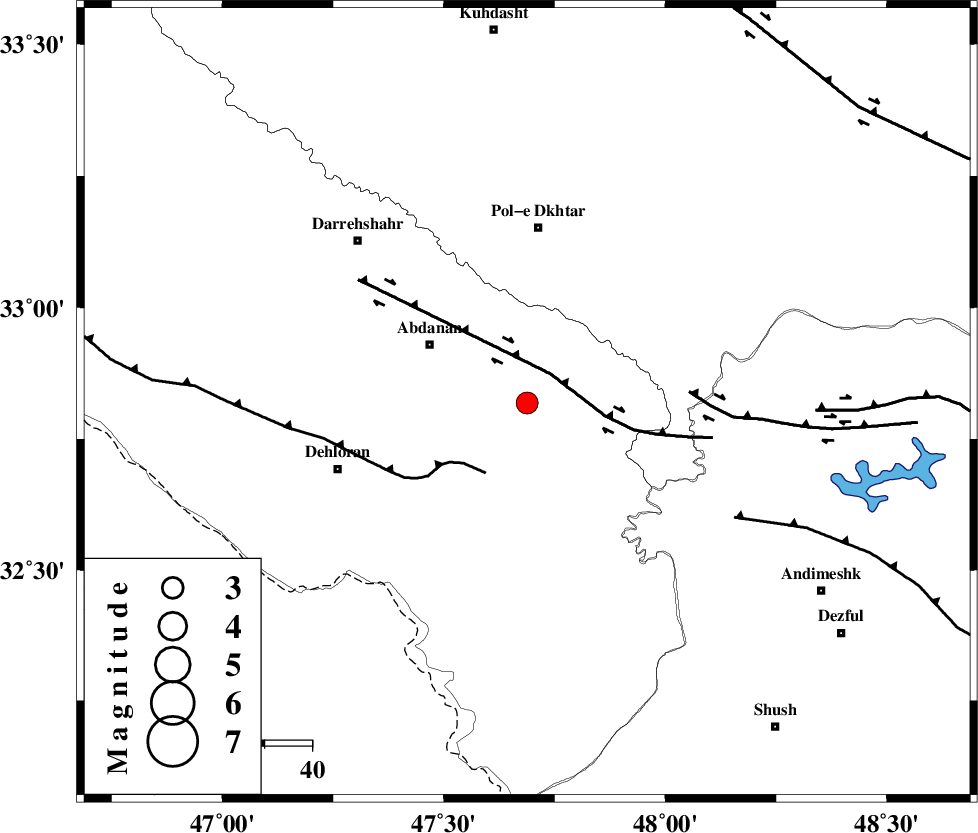

| Location | Lat:32.819 Lon: 47.688 |
| Region | Ilam Province, 24 km South-East of Abdanan |
Nearest Cities |
|
| 14 km East of Sarabbagh, Ilam Province | |
| 24 km South East of Abdanan, Ilam Province | |
| 31 km South of Sarab hammam, Lorestan Province | |
| 37 km South of Pol-e dokhtar, Lorestan Province | |
| 42 km North East of Dehloran, Ilam Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 8 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 17 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 34 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 7 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 3.8 km |
| Error in Depth | 10.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 188971 | IIEES SC | ASAO | Z | 0.1 | 1 | 2023-11-10 18:06:28 | 2023-11-11 07:42:00 | n |
| 188972 | IIEES SC | SRSL | Z | 0.05 | 1 | 2023-11-10 18:06:44 | 2023-11-11 07:42:00 | n |
| 188973 | IIEES SC | NASN | Z | 0.02 | 1 | 2023-11-10 18:06:51 | 2023-11-11 07:42:00 | n |
| 188974 | IIEES SC | YZKH | Z | 0.009 | 1 | 2023-11-10 18:07:12 | 2023-11-11 07:42:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | EPg | E | 2023-11-10 18:06:10 | 0.1 | y | 0 | 164 | 303 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-11-10 18:06:28 | 0.7 | y | 0 | 289 | 49 | ||
| IIEES SC | GHVR | Z | EPn | E | 2023-11-10 18:06:38 | 0.1 | y | 0 | 378 | 61 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-11-10 18:06:44 | -0.3 | y | 0 | 430 | 331 | ||
| IIEES SC | CHTH | Z | EPn | E | 2023-11-10 18:06:56 | 6.8 | n | 4 | 466 | 43 | ||
| IIEES SC | NASN | Z | EPn | E | 2023-11-10 18:06:51 | -0.3 | y | 0 | 480 | 90 | ||
| IIEES SC | YZKH | Z | EPn | E | 2023-11-10 18:07:12 | 0 | y | 0 | 650 | 94 | ||
