Magnitude |
:3.3 |
| Date & Time (UTC) | 2023-11-23 17:27:29.0 |
| Date & Time (Local) | 1402/9/2 20:57:29.0 |
| Location | Lat:31.854 Lon: 50.847 |
| Region | Chaharmahal Bakhtiari Province, 24 km South-East of Ardel |
Nearest Cities |
|
| 14 km East of Naghan, Chaharmahal Bakhtiari Province | |
| 21 km West of Baladaji, Chaharmahal Bakhtiari Province | |
| 21 km South of Shalamzar, Chaharmahal Bakhtiari Province | |
| 24 km South East of Ardel, Chaharmahal Bakhtiari Province | |
| 24 km East of Dupelan, Chaharmahal Bakhtiari Province | |
| Depth | 16 km |
| Agency | |

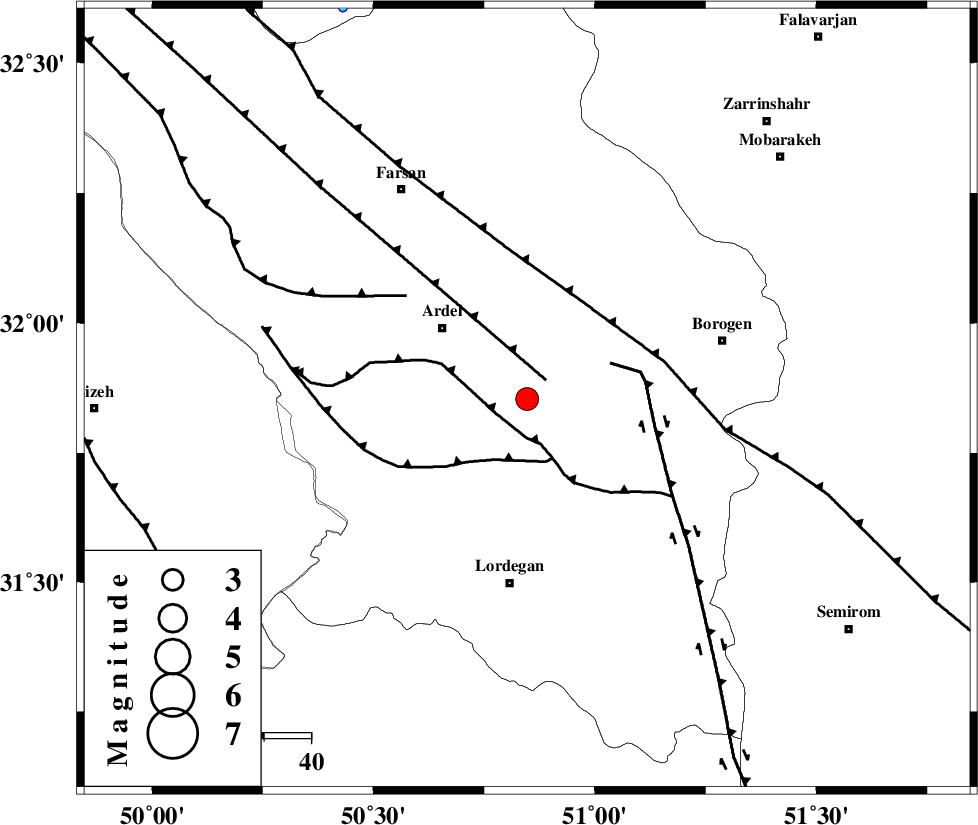

Faults within 150 km: |
|
| ARDAL_F (Length: 170 km) , Distance to epicenter: 6 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 7 km | |
| SABZKUH_F (Length: 67 km) , Distance to epicenter: 14 km | |
| Number of Phases | 13 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 9.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 189341 | IIEES SC | KLNJ | Z | 1 | 1 | 2023-11-23 17:27:48 | 2023-11-25 07:07:00 | n |
| 189342 | IIEES SC | GHVR | Z | 0.2 | 1 | 2023-11-23 17:28:13 | 2023-11-25 07:07:00 | n |
| 189343 | IIEES SC | ASAO | Z | 0.2 | 1 | 2023-11-23 17:28:15 | 2023-11-25 07:07:00 | n |
| 189344 | IIEES SC | TAFT | Z | 0.07 | 1 | 2023-11-23 17:28:16 | 2023-11-25 07:07:00 | n |
| 189345 | IIEES SC | YZKH | Z | 0.06 | 1 | 2023-11-23 17:28:20 | 2023-11-25 07:07:00 | n |
| 189346 | IIEES SC | HGHA | Z | 0.1 | 1 | 2023-11-23 17:28:33 | 2023-11-25 07:07:00 | n |
| 189347 | IIEES SC | GHIR | Z | 0.02 | 1 | 2023-11-23 17:28:32 | 2023-11-25 07:07:00 | n |
| 189348 | IIEES SC | ILBA | Z | 0.04 | 1 | 2023-11-23 17:28:35 | 2023-11-25 07:07:00 | n |
| 189349 | IIEES SC | DHR | Z | 0.07 | 1 | 2023-11-23 17:28:41 | 2023-11-25 07:07:00 | n |
| 189350 | IIEES SC | TABS | Z | 0.03 | 1 | 2023-11-23 17:28:52 | 2023-11-25 07:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KLNJ | Z | EPg | E | 2023-11-23 17:27:48 | 0.1 | y | 0 | 118 | 143 | ||
| IIEES SC | NASN | Z | EPn | E | 2023-11-23 17:28:00 | -2.7 | n | 4 | 212 | 60 | ||
| IIEES SC | GHVR | Z | EPn | E | 2023-11-23 17:28:13 | 0.6 | y | 0 | 294 | 7 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-11-23 17:28:15 | 0.3 | y | 0 | 308 | 346 | ||
| IIEES SC | TAFT | Z | EPn | E | 2023-11-23 17:28:16 | 0.6 | y | 0 | 315 | 93 | ||
| IIEES SC | YZKH | Z | EPn | E | 2023-11-23 17:28:20 | -0.3 | y | 0 | 358 | 80 | ||
| IIEES SC | MEH | Z | EPn | E | 2023-11-23 17:28:21 | -0.5 | y | 0 | 361 | 98 | ||
| IIEES SC | QABG | Z | EPn | E | 2023-11-23 17:28:31 | -0.3 | y | 0 | 443 | 345 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-11-23 17:28:33 | 1.2 | y | 0 | 443 | 335 | ||
| IIEES SC | GHIR | Z | EPn | E | 2023-11-23 17:28:32 | 0.2 | y | 0 | 446 | 152 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-11-23 17:28:35 | -0.2 | y | 0 | 477 | 294 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-11-23 17:28:41 | -0.4 | y | 0 | 522 | 307 | ||
| IIEES SC | TABS | Z | EPn | E | 2023-11-23 17:28:52 | -0.7 | y | 0 | 621 | 71 | ||
