Magnitude |
:3.5 |
Date & Time (UTC) | 2023-12-12 12:31:37.6 |
Date & Time (Local) | 1402/9/21 16:01:37.6 |

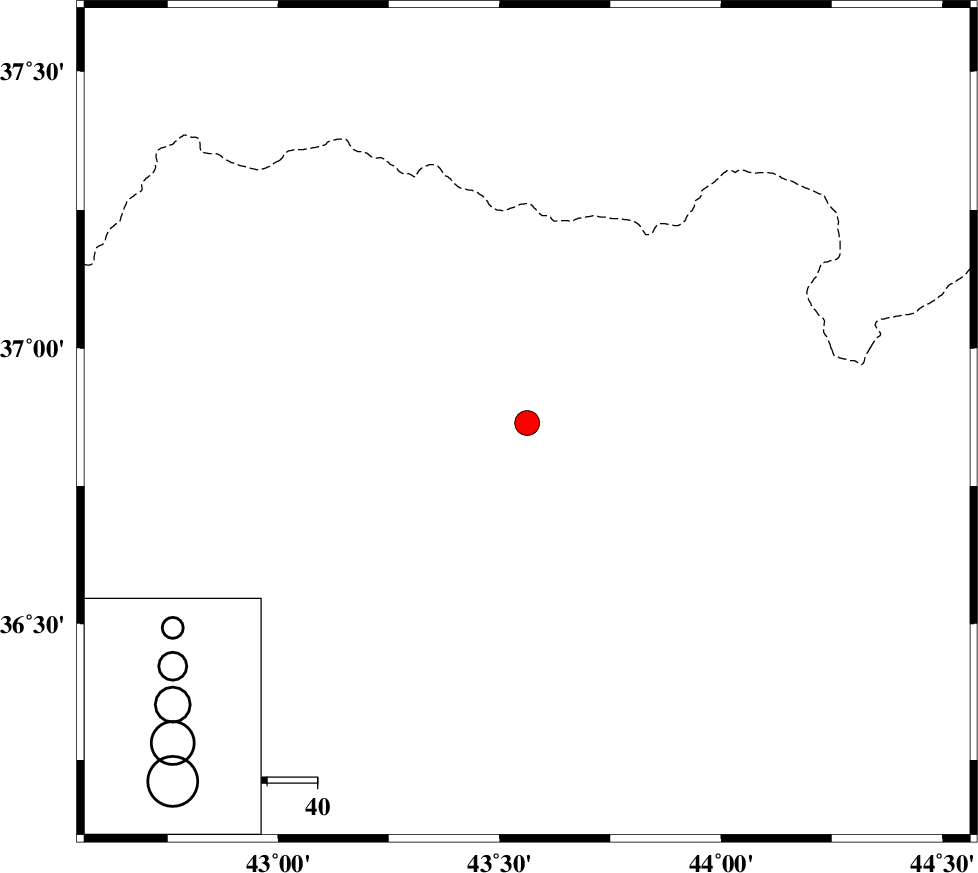

Location | Lat:36.864 Lon: 43.562 |
Region | Iraq |
Nearest Cities |
|
127 km South West of Ziveh, Azarbaijan Gharbi Province | |
128 km South West of Razhan, Azarbaijan Gharbi Province | |
130 km South West of Silvaneh, Azarbaijan Gharbi Province | |
135 km South West of Movana, Azarbaijan Gharbi Province | |
135 km South West of Sarv, Azarbaijan Gharbi Province | |
Depth | 12 km |
Agency | |
Faults within 150 km: |
|
PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 129 km | |
Number of Phases | 11 |
RMS | 0.2 |
Number of Stations | 11 |
Error in Latitude | >1.9 km |
Error in Longitude | 1.9 km |
Error in Depth | 7.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
189652 | IIEES SC | SRSL | Z | 2 | 1 | 2023-12-12 12:32:07 | 2023-12-13 05:32:00 | n |
189653 | IIEES SC | MAHB | Z | 1 | 1 | 2023-12-12 12:32:09 | 2023-12-13 05:32:00 | n |
189654 | IIEES SC | GURO | Z | 0.5 | 1 | 2023-12-12 12:32:14 | 2023-12-13 05:32:00 | n |
189655 | IIEES SC | MRD | Z | 0.4 | 1 | 2023-12-12 12:32:20 | 2023-12-13 05:32:00 | n |
189656 | IIEES SC | DHR | Z | 0.5 | 1 | 2023-12-12 12:32:29 | 2023-12-13 05:32:00 | n |
189657 | IIEES SC | GRMI | Z | 0.05 | 1 | 2023-12-12 12:32:39 | 2023-12-13 05:32:00 | n |
189658 | IIEES SC | ZNJK | Z | 0.05 | 1 | 2023-12-12 12:32:42 | 2023-12-13 05:32:00 | n |
189659 | IIEES SC | ASAO | Z | 0.04 | 1 | 2023-12-12 12:33:05 | 2023-12-13 05:32:00 | n |
Phase | ||||||||||||
Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
IIEES SC | SRSL | Z | EPg | E | 2023-12-12 12:32:07 | 0 | y | 0 | 183 | 113 | ||
IIEES SC | MAHB | Z | EPg | E | 2023-12-12 12:32:09 | 0.3 | y | 0 | 192 | 93 | ||
IIEES SC | GURO | Z | EPn | E | 2023-12-12 12:32:14 | 0 | y | 0 | 231 | 324 | ||
IIEES SC | MRD | Z | EPn | E | 2023-12-12 12:32:20 | 0.1 | y | 0 | 279 | 43 | ||
IIEES SC | DHR | Z | EPn | E | 2023-12-12 12:32:29 | 0.2 | y | 0 | 350 | 133 | ||
IIEES SC | GRMI | Z | EPn | E | 2023-12-12 12:32:39 | -0.7 | y | 0 | 438 | 60 | ||
IIEES SC | ZNJK | Z | EPn | E | 2023-12-12 12:32:42 | -0.5 | y | 0 | 458 | 93 | ||
IIEES SC | HGHA | Z | EPn | E | 2023-12-12 12:32:47 | 0.1 | n | 4 | 500 | 108 | ||
IIEES SC | ARPR | Z | EPn | E | 2023-12-12 12:32:59 | 9.4 | n | 4 | 522 | 298 | ||
IIEES SC | QABG | Z | EPn | E | 2023-12-12 12:32:54 | -0.5 | y | 0 | 556 | 103 | ||
IIEES SC | ASAO | Z | EPn | E | 2023-12-12 12:33:05 | 0.3 | y | 0 | 639 | 114 |
