Magnitude |
:3.8 |
| Date & Time (UTC) | 2024-02-20 19:44:11.2 |
| Date & Time (Local) | 1402/12/1 23:14:11.2 |

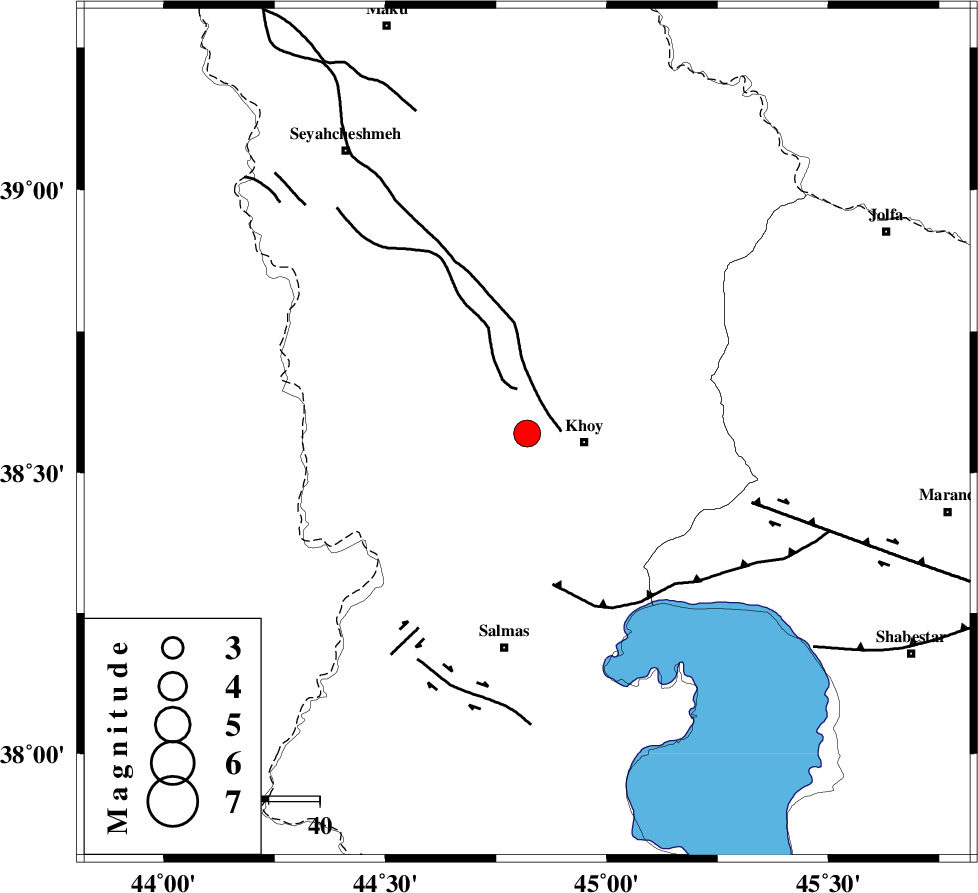

| Location | Lat:38.569 Lon: 44.82 |
| Region | Azarbaijan Gharbi Province, 11 km -West of Khoy |
Nearest Cities |
|
| 3 km North of Beyk sofla, Azarbaijan Gharbi Province | |
| 11 km North West of Khoy, Azarbaijan Gharbi Province | |
| 15 km West of Dizaj, Azarbaijan Gharbi Province | |
| 16 km North West of Quruq, Azarbaijan Gharbi Province | |
| 18 km North West of Saeedabad, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 7 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 30 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 44 km | |
| Number of Phases | 17 |
| RMS | 0.4 |
| Number of Stations | 17 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 12.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 191058 | IIEES SC | MRD | Z | 20 | 1 | 2024-02-20 19:44:25 | 2024-02-21 06:10:00 | n |
| 191059 | IIEES SC | GNI | Z | 5 | 1 | 2024-02-20 19:44:40 | 2024-02-21 06:10:00 | n |
| 191060 | IIEES SC | MAHB | Z | 1 | 1 | 2024-02-20 19:44:45 | 2024-02-21 06:10:00 | n |
| 191061 | IIEES SC | GURO | Z | 0.5 | 1 | 2024-02-20 19:44:49 | 2024-02-21 06:10:00 | n |
| 191062 | IIEES SC | SRSL | Z | 0.6 | 1 | 2024-02-20 19:44:53 | 2024-02-21 06:10:00 | n |
| 191063 | IIEES SC | DHR | Z | 0.2 | 1 | 2024-02-20 19:45:16 | 2024-02-21 06:10:00 | n |
| 191064 | IIEES SC | ILBA | Z | 0.06 | 1 | 2024-02-20 19:45:28 | 2024-02-21 06:10:00 | n |
| 191065 | IIEES SC | ASAO | Z | 0.03 | 1 | 2024-02-20 19:45:39 | 2024-02-21 06:10:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2024-02-20 19:44:25 | 0.2 | y | 0 | 78 | 78 | ||
| IIEES SC | MAKU | Z | EPg | E | 2024-02-20 19:44:26 | -0.2 | y | 0 | 88 | 352 | ||
| IIEES SC | AZR | Z | EPg | E | 2024-02-20 19:44:34 | -0.2 | y | 0 | 142 | 134 | ||
| IIEES SC | GNI | Z | EPg | E | 2024-02-20 19:44:40 | 0.2 | y | 0 | 175 | 358 | ||
| IIEES SC | MAHB | Z | EPn | E | 2024-02-20 19:44:45 | -0.6 | y | 0 | 215 | 159 | ||
| IIEES SC | GURO | Z | EPn | E | 2024-02-20 19:44:49 | -0.1 | y | 0 | 243 | 270 | ||
| IIEES SC | SRSL | Z | EPn | E | 2024-02-20 19:44:53 | 0.9 | y | 0 | 267 | 168 | ||
| IIEES SC | GRMI | Z | EPn | E | 2024-02-20 19:45:05 | 12.5 | n | 4 | 269 | 84 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2024-02-20 19:44:53 | -15.3 | n | 4 | 401 | 122 | ||
| IIEES SC | DHR | Z | EPn | E | 2024-02-20 19:45:16 | 0.9 | y | 0 | 452 | 162 | ||
| IIEES SC | GIDE | Z | EPn | E | 2024-02-20 19:45:30 | 11.5 | n | 4 | 478 | 112 | ||
| IIEES SC | HGHA | Z | EPn | E | 2024-02-20 19:45:23 | 2.1 | n | 4 | 496 | 134 | ||
| IIEES SC | KCHF | Z | EPn | E | 2024-02-20 19:45:35 | 11.8 | n | 4 | 516 | 157 | ||
| IIEES SC | QABG | Z | EPn | E | 2024-02-20 19:45:25 | 0.8 | y | 0 | 529 | 127 | ||
| IIEES SC | ILBA | Z | EPn | E | 2024-02-20 19:45:28 | -0.4 | y | 0 | 563 | 167 | ||
| IIEES SC | ASAO | Z | EPn | E | 2024-02-20 19:45:39 | -0.6 | y | 0 | 645 | 134 | ||
| IIEES SC | ABGH | Z | EPn | E | 2024-02-20 19:46:10 | -0.8 | y | 0 | 904 | 103 | ||
