Magnitude |
:3.5 |
| Date & Time (UTC) | 2024-03-21 20:49:20.5 |
| Date & Time (Local) | 1403/1/3 00:19:20.5 |

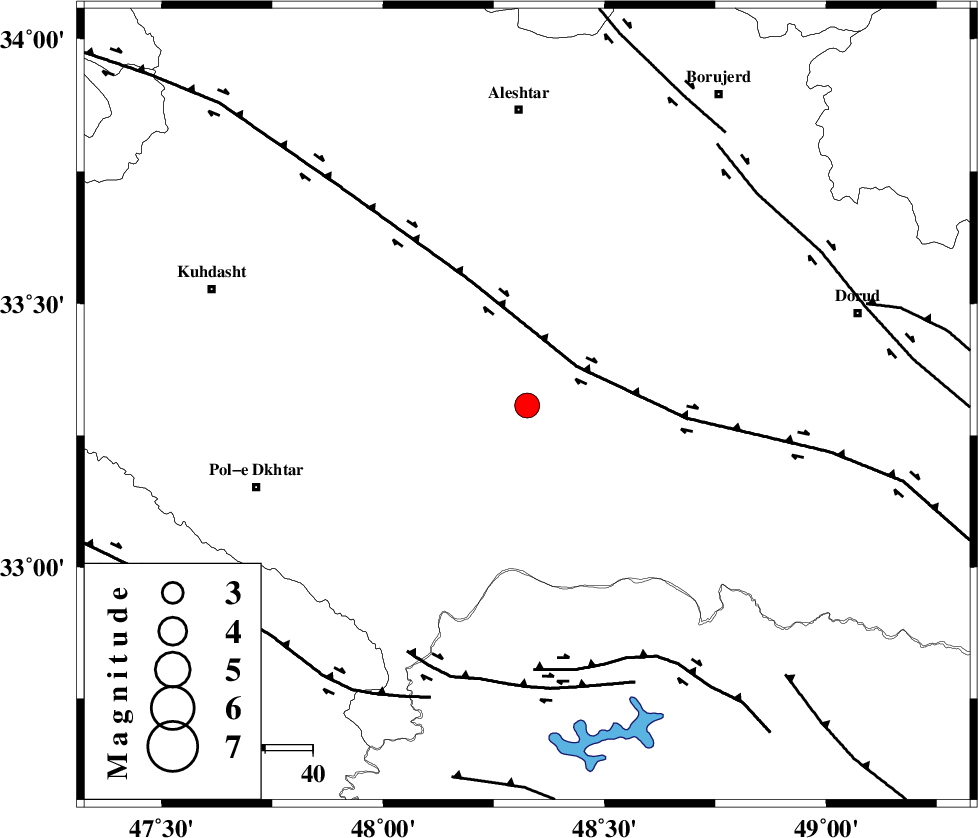

| Location | Lat:33.307 Lon: 48.325 |
| Region | Lorestan Province, 20 km South of Khorramabad |
Nearest Cities |
|
| 9 km of Daraei, Lorestan Province | |
| 15 km East of Shoorab-e sofla, Lorestan Province | |
| 16 km South of Badrabad-e sofla, Lorestan Province | |
| 20 km South West of Kamalvand-e gholamali, Lorestan Province | |
| 20 km South of Khorramabad, Lorestan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 13 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 56 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 58 km | |
| Number of Phases | 16 |
| RMS | 0.3 |
| Number of Stations | 16 |
| Error in Latitude | >1.7 km |
| Error in Longitude | 1.7 km |
| Error in Depth | 8.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 191743 | IIEES SC | KCHF | Z | 2 | 1 | 2024-03-21 20:49:46 | 2024-03-27 04:18:00 | n |
| 191744 | IIEES SC | ILBA | Z | 0.4 | 1 | 2024-03-21 20:49:53 | 2024-03-27 04:18:00 | n |
| 191745 | IIEES SC | ASAO | Z | 1 | 1 | 2024-03-21 20:49:53 | 2024-03-27 04:18:00 | n |
| 191746 | IIEES SC | DHR | Z | 1 | 1 | 2024-03-21 20:49:57 | 2024-03-27 04:18:00 | n |
| 191747 | IIEES SC | HGHA | Z | 2 | 1 | 2024-03-21 20:49:59 | 2024-03-27 04:18:00 | n |
| 191748 | IIEES SC | CHTH | Z | 0.1 | 1 | 2024-03-21 20:50:16 | 2024-03-27 04:18:00 | n |
| 191749 | IIEES SC | KLNJ | Z | 0.1 | 1 | 2024-03-21 20:50:18 | 2024-03-27 04:18:00 | n |
| 191750 | IIEES SC | SRSL | Z | 0.2 | 1 | 2024-03-21 20:50:20 | 2024-03-27 04:18:00 | n |
| 191751 | IIEES SC | NASN | Z | 0.07 | 1 | 2024-03-21 20:50:21 | 2024-03-27 04:18:00 | n |
| 191752 | IIEES SC | ANAR | Z | 0.02 | 1 | 2024-03-21 20:50:30 | 2024-03-27 04:18:00 | n |
| 191753 | IIEES SC | TAFT | Z | 0.02 | 1 | 2024-03-21 20:50:39 | 2024-03-27 04:18:00 | n |
| 191754 | IIEES SC | YZKH | Z | 0.03 | 1 | 2024-03-21 20:50:42 | 2024-03-27 04:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KCHF | Z | EPg | E | 2024-03-21 20:49:46 | -0.9 | y | 0 | 160 | 312 | ||
| IIEES SC | ILBA | Z | EPn | E | 2024-03-21 20:49:53 | 0.2 | y | 0 | 200 | 280 | ||
| IIEES SC | ASAO | Z | EPn | E | 2024-03-21 20:49:53 | -1 | y | 0 | 209 | 49 | ||
| IIEES SC | DHR | Z | EPn | E | 2024-03-21 20:49:57 | -0.5 | y | 0 | 236 | 311 | ||
| IIEES SC | HGHA | Z | EPn | E | 2024-03-21 20:49:59 | 0.3 | y | 0 | 247 | 11 | ||
| IIEES SC | QABG | Z | EPn | E | 2024-03-21 20:50:05 | 0.5 | y | 0 | 290 | 23 | ||
| IIEES SC | GHVR | Z | EPn | E | 2024-03-21 20:50:07 | 1.9 | n | 4 | 300 | 64 | ||
| IIEES SC | CHTH | Z | EPn | E | 2024-03-21 20:50:16 | -0.1 | y | 0 | 386 | 42 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2024-03-21 20:50:18 | 0 | y | 0 | 400 | 130 | ||
| IIEES SC | SRSL | Z | EPn | E | 2024-03-21 20:50:20 | 0 | y | 0 | 417 | 321 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-03-21 20:50:21 | 0.6 | y | 0 | 422 | 98 | ||
| IIEES SC | ANAR | Z | EPn | E | 2024-03-21 20:50:30 | -0.2 | y | 0 | 504 | 91 | ||
| IIEES SC | TAFT | Z | EPn | E | 2024-03-21 20:50:39 | -0.3 | y | 0 | 577 | 108 | ||
| IIEES SC | YZKH | Z | EPn | E | 2024-03-21 20:50:42 | -0.4 | y | 0 | 595 | 100 | ||
| IIEES SC | GRMI | Z | EPn | E | 2024-03-21 20:50:52 | 8 | n | 4 | 612 | 356 | ||
| IIEES SC | MEH | Z | EPn | E | 2024-03-21 20:50:46 | 0.2 | y | 0 | 629 | 110 | ||
