Magnitude |
:3.4 |
| Date & Time (UTC) | 2024-04-28 06:41:13.1 |
| Date & Time (Local) | 1403/2/9 10:11:13.1 |

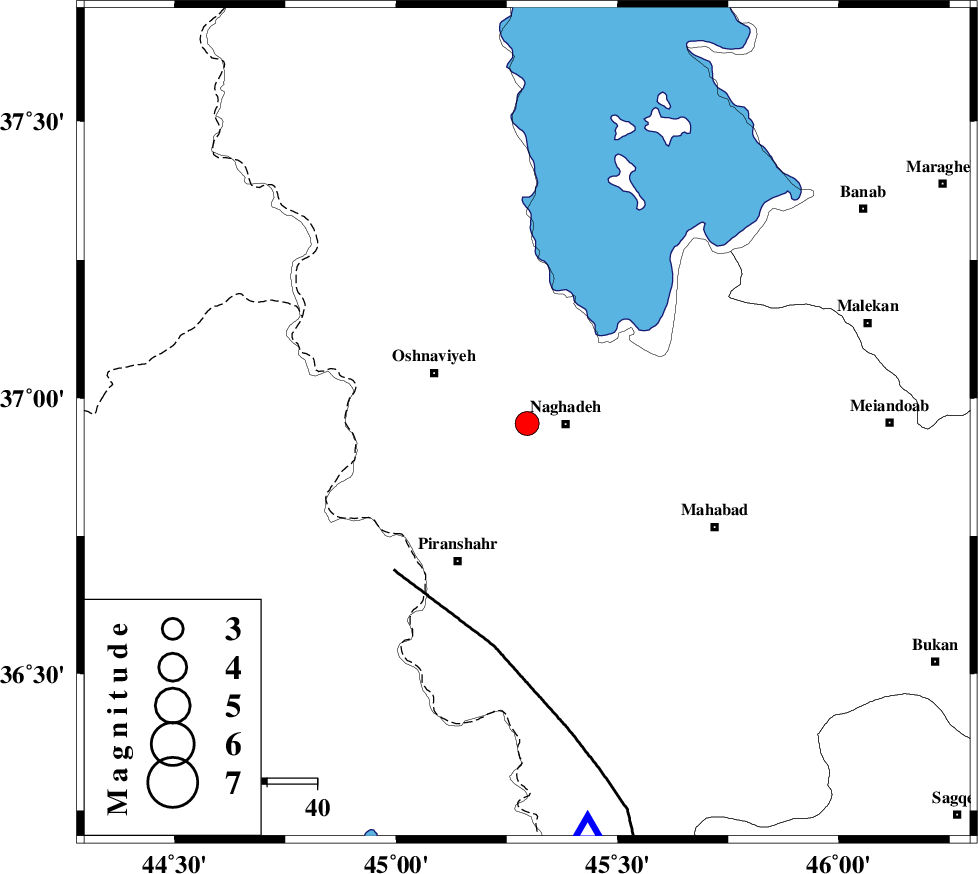

| Location | Lat:36.954 Lon: 45.296 |
| Region | Azarbaijan Gharbi Province, 8 km of Naqadeh |
Nearest Cities |
|
| 4 km of Mirabad, Azarbaijan Gharbi Province | |
| 8 km North of Naqadeh, Azarbaijan Gharbi Province | |
| 14 km East of Nalus, Azarbaijan Gharbi Province | |
| 16 km North West of Beygom qaleh, Azarbaijan Gharbi Province | |
| 16 km North of Darikeh, Azarbaijan Gharbi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 40 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 129 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 138 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 14 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 3.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 192601 | IIEES SC | MAHB | Z | 30 | 1 | 2024-04-28 06:41:20 | 2024-04-29 05:39:00 | n |
| 192602 | IIEES SC | SRSL | Z | 3 | 1 | 2024-04-28 06:41:26 | 2024-04-29 05:39:00 | n |
| 192603 | IIEES SC | MRD | Z | 0.8 | 1 | 2024-04-28 06:41:45 | 2024-04-29 05:39:00 | n |
| 192604 | IIEES SC | DHR | Z | 0.7 | 1 | 2024-04-28 06:41:55 | 2024-04-29 05:39:00 | n |
| 192605 | IIEES SC | KCHF | Z | 0.3 | 1 | 2024-04-28 06:42:03 | 2024-04-29 05:39:00 | n |
| 192606 | IIEES SC | ILBA | Z | 0.07 | 1 | 2024-04-28 06:42:08 | 2024-04-29 05:39:00 | n |
| 192607 | IIEES SC | ASAO | Z | 0.03 | 1 | 2024-04-28 06:42:25 | 2024-04-29 05:39:00 | n |
| 192608 | IIEES SC | CHTH | Z | 0.02 | 1 | 2024-04-28 06:42:28 | 2024-04-29 05:39:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MAHB | Z | EPg | E | 2024-04-28 06:41:20 | -0.8 | y | 0 | 42 | 120 | ||
| IIEES SC | SRSL | Z | EPg | E | 2024-04-28 06:41:26 | -1 | y | 0 | 83 | 171 | ||
| IIEES SC | AZR | Z | EPg | E | 2024-04-28 06:41:30 | -0.1 | y | 0 | 101 | 37 | ||
| IIEES SC | MRD | Z | EPg | E | 2024-04-28 06:41:45 | 0 | y | 0 | 198 | 10 | ||
| IIEES SC | DHR | Z | EPn | E | 2024-04-28 06:41:55 | 0.8 | y | 0 | 269 | 158 | ||
| IIEES SC | MAKU | Z | EPn | E | 2024-04-28 06:42:00 | 4.9 | n | 4 | 272 | 349 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2024-04-28 06:41:29 | -30.2 | n | 4 | 304 | 96 | ||
| IIEES SC | GRMI | Z | EPn | E | 2024-04-28 06:42:08 | 9 | n | 4 | 308 | 48 | ||
| IIEES SC | KCHF | Z | EPn | E | 2024-04-28 06:42:03 | 0.4 | y | 0 | 337 | 152 | ||
| IIEES SC | HGHA | Z | EPn | E | 2024-04-28 06:42:12 | 6.5 | n | 4 | 359 | 117 | ||
| IIEES SC | ILBA | Z | EPn | E | 2024-04-28 06:42:08 | 0 | y | 0 | 379 | 167 | ||
| IIEES SC | QABG | Z | EPn | E | 2024-04-28 06:42:12 | 0.1 | y | 0 | 409 | 110 | ||
| IIEES SC | ASAO | Z | EPn | E | 2024-04-28 06:42:25 | 1.1 | y | 0 | 504 | 122 | ||
| IIEES SC | CHTH | Z | EPn | E | 2024-04-28 06:42:28 | 0.3 | y | 0 | 536 | 103 | ||
