Magnitude |
:3.5 |
| Date & Time (UTC) | 2024-05-20 06:35:41.7 |
| Date & Time (Local) | 1403/2/31 10:05:41.7 |

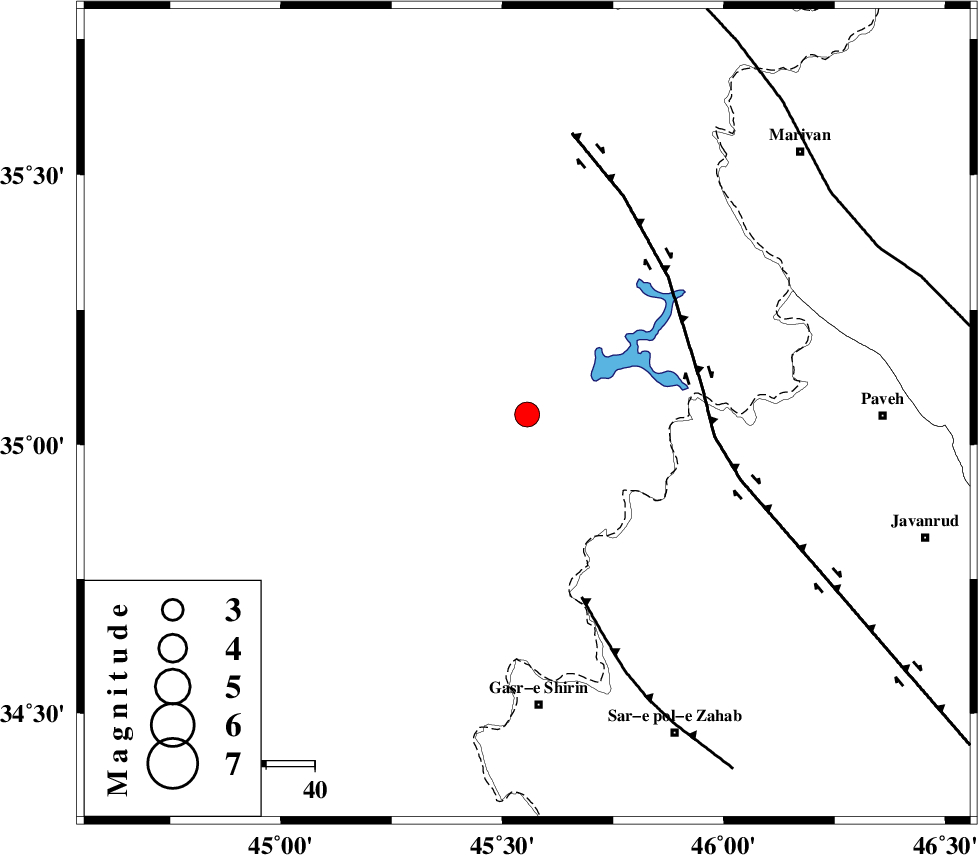

| Location | Lat:35.056 Lon: 45.556 |
| Region | Iraq, 60 km North of Qasr-E-Shirin |
Nearest Cities |
|
| 36 km West of Markhil, Kermanshah Province | |
| 37 km North West of Tappeh rash, Kermanshah Province | |
| 41 km North West of Tazehabad, Kermanshah Province | |
| 44 km North West of Dehsheykh, Kermanshah Province | |
| 44 km North West of Gardehnu, Kermanshah Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 36 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 39 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 77 km | |
| Number of Phases | 10 |
| RMS | 0.6 |
| Number of Stations | 10 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 192977 | IIEES SC | DHR | Z | 5 | 1 | 2024-05-20 06:35:55 | 2024-05-20 10:06:00 | n |
| 192978 | IIEES SC | SRSL | Z | 1 | 1 | 2024-05-20 06:36:02 | 2024-05-20 10:06:00 | n |
| 192979 | IIEES SC | KCHF | Z | 2 | 1 | 2024-05-20 06:36:08 | 2024-05-20 10:06:00 | n |
| 192980 | IIEES SC | ILBA | Z | 0.8 | 1 | 2024-05-20 06:36:09 | 2024-05-20 10:06:00 | n |
| 192981 | IIEES SC | MAHB | Z | 2 | 1 | 2024-05-20 06:36:12 | 2024-05-20 10:06:00 | n |
| 192982 | IIEES SC | HGHA | Z | 0.3 | 1 | 2024-05-20 06:36:28 | 2024-05-20 10:06:00 | n |
| 192983 | IIEES SC | MRD | Z | 0.1 | 1 | 2024-05-20 06:36:41 | 2024-05-20 10:06:00 | n |
| 192984 | IIEES SC | ASAO | Z | 0.09 | 1 | 2024-05-20 06:36:41 | 2024-05-20 10:06:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DHR | Z | EPg | E | 2024-05-20 06:35:55 | -1.1 | y | 0 | 86 | 118 | ||
| IIEES SC | SRSL | Z | EPg | E | 2024-05-20 06:36:02 | -0.5 | y | 0 | 129 | 355 | ||
| IIEES SC | KCHF | Z | EPg | E | 2024-05-20 06:36:08 | 0.4 | y | 0 | 161 | 123 | ||
| IIEES SC | ILBA | Z | EPg | E | 2024-05-20 06:36:09 | 0.1 | y | 0 | 170 | 159 | ||
| IIEES SC | MAHB | Z | EPg | E | 2024-05-20 06:36:12 | -0.2 | y | 0 | 190 | 4 | ||
| IIEES SC | HGHA | Z | EPn | E | 2024-05-20 06:36:28 | 0.8 | y | 0 | 304 | 81 | ||
| IIEES SC | QABG | Z | EPn | E | 2024-05-20 06:36:35 | -0.5 | y | 0 | 373 | 79 | ||
| IIEES SC | MRD | Z | EPn | E | 2024-05-20 06:36:41 | 0.8 | y | 0 | 406 | 2 | ||
| IIEES SC | ASAO | Z | EPn | E | 2024-05-20 06:36:41 | 0.4 | y | 0 | 413 | 98 | ||
| IIEES SC | GRMI | Z | EPn | E | 2024-05-20 06:36:54 | 7.2 | n | 4 | 466 | 27 | ||
