Magnitude |
:3.4 |
| Date & Time (UTC) | 2024-05-20 19:31:13.4 |
| Date & Time (Local) | 1403/2/31 23:01:13.4 |
| Location | Lat:31.552 Lon: 50.691 |
| Region | Chaharmahal Bakhtiari Province, 13 km -West of Lordegan |
Nearest Cities |
|
| 13 km North West of Lordegan, Chaharmahal Bakhtiari Province | |
| 13 km West of Armand-e olia, Chaharmahal Bakhtiari Province | |
| 25 km North West of Sardasht, Chaharmahal Bakhtiari Province | |
| 26 km South East of Sarkhun, Chaharmahal Bakhtiari Province | |
| 30 km North of Pataveh, Kohkiluieh va boyerahmad Province | |
| Depth | 10 km |
| Agency | |

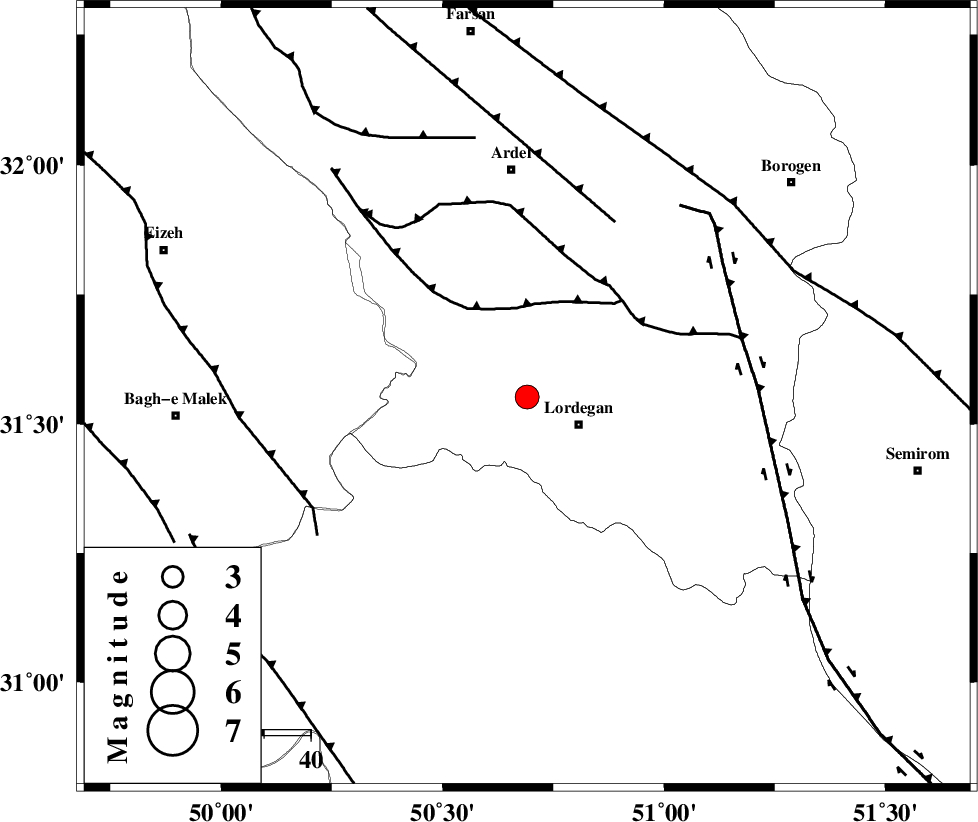

Faults within 150 km: |
|
| SABZKUH_F (Length: 67 km) , Distance to epicenter: 19 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 29 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 42 km | |
| Number of Phases | 26 |
| RMS | 0.5 |
| Number of Stations | 26 |
| Error in Latitude | >1.5 km |
| Error in Longitude | 1.5 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 192985 | IIEES SC | KLNJ | Z | 3 | 1 | 2024-05-20 19:31:30 | 2024-05-21 06:44:00 | n |
| 192986 | IIEES SC | NASN | Z | 0.2 | 1 | 2024-05-20 19:31:51 | 2024-05-21 06:44:00 | n |
| 192987 | IIEES SC | GHVR | Z | 0.3 | 1 | 2024-05-20 19:32:02 | 2024-05-21 06:44:00 | n |
| 192988 | IIEES SC | TAFT | Z | 0.1 | 1 | 2024-05-20 19:32:02 | 2024-05-21 06:44:00 | n |
| 192989 | IIEES SC | ASAO | Z | 0.4 | 1 | 2024-05-20 19:32:04 | 2024-05-21 06:44:00 | n |
| 192990 | IIEES SC | ANAR | Z | 0.09 | 1 | 2024-05-20 19:32:03 | 2024-05-21 06:44:00 | n |
| 192991 | IIEES SC | MEH | Z | 0.04 | 1 | 2024-05-20 19:32:08 | 2024-05-21 06:44:00 | n |
| 192992 | IIEES SC | YZKH | Z | 0.1 | 1 | 2024-05-20 19:32:09 | 2024-05-21 06:44:00 | n |
| 192993 | IIEES SC | GHIR | Z | 0.03 | 1 | 2024-05-20 19:32:14 | 2024-05-21 06:44:00 | n |
| 192994 | IIEES SC | KCHF | Z | 0.1 | 1 | 2024-05-20 19:32:18 | 2024-05-21 06:44:00 | n |
| 192995 | IIEES SC | QABG | Z | 0.02 | 1 | 2024-05-20 19:32:20 | 2024-05-21 06:44:00 | n |
| 192996 | IIEES SC | ILBA | Z | 0.06 | 1 | 2024-05-20 19:32:20 | 2024-05-21 06:44:00 | n |
| 192997 | IIEES SC | DHR | Z | 0.1 | 1 | 2024-05-20 19:32:27 | 2024-05-21 06:44:00 | n |
| 192998 | IIEES SC | ABGH | Z | 0.02 | 1 | 2024-05-20 19:32:47 | 2024-05-21 06:44:00 | n |
| 192999 | IIEES SC | MRVT | Z | 0.009 | 1 | 2024-05-20 19:33:06 | 2024-05-21 06:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KLNJ | Z | EPg | E | 2024-05-20 19:31:30 | -0.6 | y | 0 | 105 | 125 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-05-20 19:31:51 | -1 | y | 0 | 243 | 55 | ||
| IIEES SC | GHVR | Z | EPn | E | 2024-05-20 19:32:02 | 0.2 | y | 0 | 329 | 9 | ||
| IIEES SC | TAFT | Z | EPn | E | 2024-05-20 19:32:02 | 0 | y | 0 | 331 | 87 | ||
| IIEES SC | ASAO | Z | EPn | E | 2024-05-20 19:32:04 | 0.4 | y | 0 | 338 | 349 | ||
| IIEES SC | ANAR | Z | EPn | E | 2024-05-20 19:32:03 | -0.2 | y | 0 | 339 | 58 | ||
| IIEES SC | MEH | Z | EPn | E | 2024-05-20 19:32:08 | 0.6 | y | 0 | 373 | 93 | ||
| IIEES SC | YZKH | Z | EPn | E | 2024-05-20 19:32:09 | 0.5 | y | 0 | 380 | 76 | ||
| IIEES SC | GHIR | Z | EPn | E | 2024-05-20 19:32:14 | 0.6 | y | 0 | 424 | 149 | ||
| IIEES SC | KCHF | Z | EPn | E | 2024-05-20 19:32:18 | 0.5 | y | 0 | 456 | 311 | ||
| IIEES SC | DAMV | Z | EPn | E | 2024-05-20 19:31:59 | -20.2 | n | 4 | 468 | 15 | ||
| IIEES SC | HGHA | Z | EPn | E | 2024-05-20 19:32:20 | 0 | y | 0 | 469 | 339 | ||
| IIEES SC | QABG | Z | EPn | E | 2024-05-20 19:32:20 | -0.3 | y | 0 | 472 | 347 | ||
| IIEES SC | ILBA | Z | EPn | E | 2024-05-20 19:32:20 | -0.7 | y | 0 | 480 | 299 | ||
| IIEES SC | DHR | Z | EPn | E | 2024-05-20 19:32:27 | -0.3 | y | 0 | 532 | 311 | ||
| IIEES SC | GIDE | Z | EPn | E | 2024-05-20 19:32:27 | -9.3 | n | 4 | 601 | 352 | ||
| IIEES SC | KRBR | Z | EPn | E | 2024-05-20 19:32:30 | -6.8 | n | 4 | 607 | 107 | ||
| IIEES SC | GLO | Z | EPn | E | 2024-05-20 19:32:39 | 0.2 | y | 0 | 621 | 28 | ||
| IIEES SC | TABS | Z | EPn | E | 2024-05-20 19:32:42 | 0.4 | y | 0 | 647 | 69 | ||
| IIEES SC | ABGH | Z | EPn | E | 2024-05-20 19:32:47 | -0.1 | y | 0 | 689 | 33 | ||
| IIEES SC | SHRO | Z | EPn | E | 2024-05-20 19:32:50 | 2.2 | n | 4 | 698 | 45 | ||
| IIEES SC | SRSL | Z | EPn | E | 2024-05-20 19:32:50 | 0.2 | y | 0 | 710 | 317 | ||
| IIEES SC | MRVT | Z | EPn | E | 2024-05-20 19:33:06 | 0.8 | y | 0 | 839 | 36 | ||
| IIEES SC | JSSH | Z | EPn | E | 2024-05-20 19:33:13 | -0.4 | y | 0 | 905 | 134 | ||
| IIEES SC | UOSS | Z | EPn | E | 2024-05-20 19:33:14 | -0.2 | y | 0 | 910 | 144 | ||
| IIEES SC | BJRD | Z | EPn | E | 2024-05-20 19:33:15 | -0.4 | y | 0 | 919 | 42 | ||
