Magnitude |
:3.2 |
| Date & Time (UTC) | 2020-09-02 11:21:22.6 |
| Date & Time (Local) | 1399/6/12 15:51:22.6 |

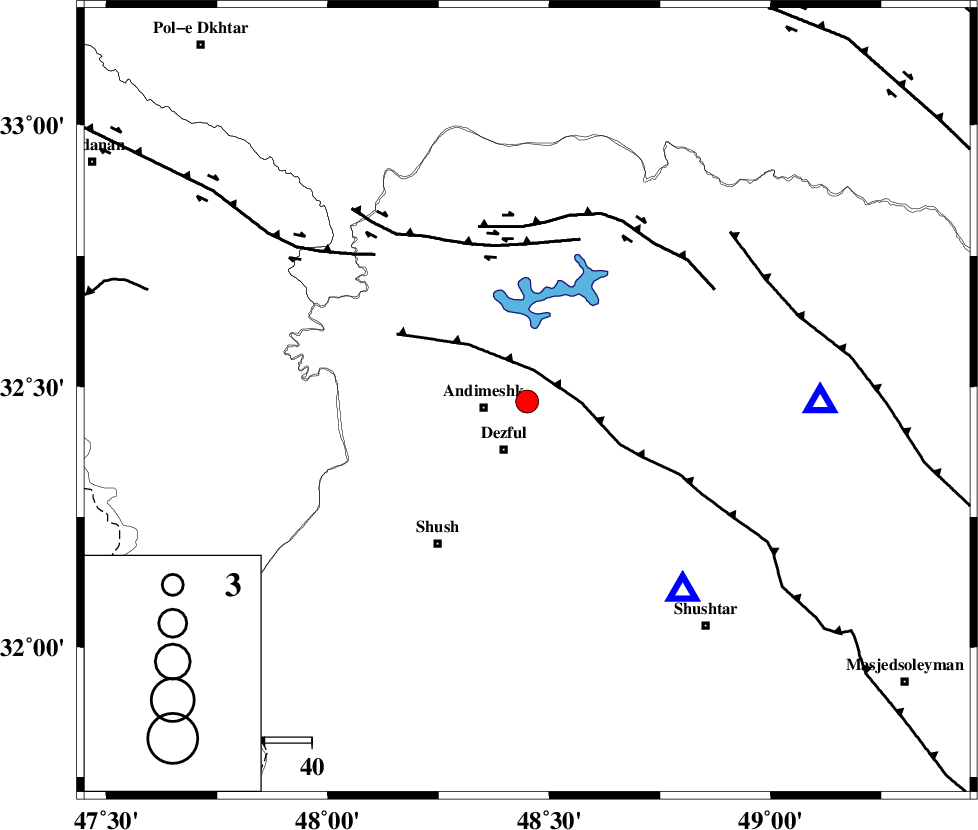

| Location | Lat:32.472 Lon: 48.45 |
| Region | Khoozestan Province, 9 km of Andimeshk |
Nearest Cities |
|
| 9 km North of Andimeshk, Khoozestan Province | |
| 11 km North of Dezful, Khoozestan Province | |
| 20 km North of Shamsabad, Khoozestan Province | |
| 22 km North West of Mahur berenji, Khoozestan Province | |
| 30 km South East of Hoseinieh, Khoozestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 7 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 33 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 37 km | |
| Number of Phases | 10 |
| RMS | 0.5 |
| Number of Stations | 10 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 6.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 193142 | IIEES SC | GTMR | Z | 2 | 1 | 2020-09-02 11:21:33 | 2024-05-28 09:08:00 | n |
| 193143 | IIEES SC | KHMZ | Z | 0.2 | 1 | 2020-09-02 11:21:55 | 2024-05-28 09:08:00 | n |
| 193144 | IIEES SC | ILBA | Z | 0.2 | 1 | 2020-09-02 11:22:01 | 2024-05-28 09:08:00 | n |
| 193145 | IIEES SC | ASAO | Z | 0.2 | 1 | 2020-09-02 11:22:05 | 2024-05-28 09:08:00 | n |
| 193146 | IIEES SC | DAMV | Z | 0.05 | 1 | 2020-09-02 11:22:29 | 2024-05-28 09:08:00 | n |
| 193147 | IIEES SC | AHRM | Z | 0.04 | 1 | 2020-09-02 11:22:31 | 2024-05-28 09:08:00 | n |
| 193148 | IIEES SC | SRSL | Z | 0.08 | 1 | 2020-09-02 11:22:32 | 2024-05-28 09:08:00 | n |
| 193149 | IIEES SC | GRMI | Z | 0.009 | 1 | 2020-09-02 11:22:57 | 2024-05-28 09:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | EPg | E | 2020-09-02 11:21:33 | -0.5 | y | 0 | 62 | 90 | ||
| IIEES SC | KHMZ | Z | EPg | E | 2020-09-02 11:21:55 | 0.1 | y | 0 | 199 | 45 | ||
| IIEES SC | ILBA | Z | EPn | E | 2020-09-02 11:22:01 | 0.4 | y | 0 | 245 | 301 | ||
| IIEES SC | ASAO | Z | EPn | E | 2020-09-02 11:22:05 | 0.7 | y | 0 | 273 | 32 | ||
| IIEES SC | DAMV | Z | EPn | E | 2020-09-02 11:22:29 | -0.6 | y | 0 | 478 | 43 | ||
| IIEES SC | AHRM | Z | EPn | E | 2020-09-02 11:22:31 | 0.4 | y | 0 | 484 | 146 | ||
| IIEES SC | SRSL | Z | EPn | E | 2020-09-02 11:22:32 | -0.3 | y | 0 | 499 | 326 | ||
| IIEES SC | GIDE | Z | EPn | E | 2020-09-02 11:22:29 | -4.6 | n | 4 | 510 | 14 | ||
| IIEES SC | GRMI | Z | EPn | E | 2020-09-02 11:22:57 | -0.6 | y | 0 | 705 | 356 | ||
| IIEES SC | MRVT | Z | EPn | E | 2020-09-02 11:23:05 | -18 | n | 4 | 904 | 50 | ||
