Magnitude |
:4.9 |
| Date & Time (UTC) | 2024-05-30 01:07:45.4 |
| Date & Time (Local) | 1403/3/10 04:37:45.4 |

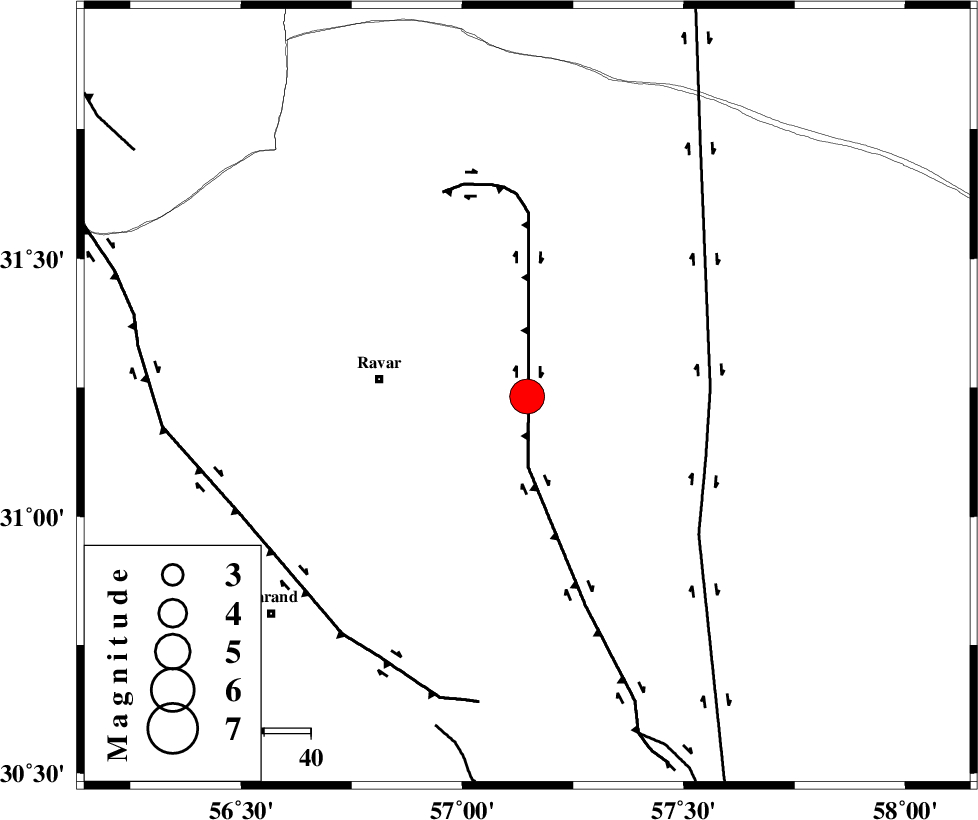

| Location | Lat:31.233 Lon: 57.146 |
| Region | Kerman Province, 32 km -East of Ravar |
Nearest Cities |
|
| 32 km East of Ravar, Kerman Province | |
| 35 km East of Dehali, Kerman Province | |
| 55 km North East of Hejdak, Kerman Province | |
| 55 km North East of Ahmadi, Kerman Province | |
| 55 km North East of Hatkan, Kerman Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 15 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 39 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 65 km | |
| Number of Phases | 34 |
| RMS | 0.4 |
| Number of Stations | 34 |
| Error in Latitude | >0.8 km |
| Error in Longitude | 0.8 km |
| Error in Depth | 384 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 193193 | IIEES SC | BSRN | Z | 10 | 1 | 2024-05-30 01:08:18 | 2024-06-01 06:53:00 | n |
| 193194 | IIEES SC | YZKH | Z | 20 | 1 | 2024-05-30 01:08:26 | 2024-06-01 06:53:00 | n |
| 193195 | IIEES SC | TAFT | Z | 30 | 1 | 2024-05-30 01:08:29 | 2024-06-01 06:53:00 | n |
| 193196 | IIEES SC | ZHSF | Z | 2 | 1 | 2024-05-30 01:08:41 | 2024-06-01 06:53:00 | n |
| 193197 | IIEES SC | SHRT | Z | 1 | 1 | 2024-05-30 01:08:42 | 2024-06-01 06:53:00 | n |
| 193198 | IIEES SC | NASN | Z | 4 | 1 | 2024-05-30 01:08:48 | 2024-06-01 06:53:00 | n |
| 193199 | IIEES SC | GHIR | Z | 0.4 | 1 | 2024-05-30 01:08:57 | 2024-06-01 06:53:00 | n |
| 193200 | IIEES SC | TBJM | Z | 2 | 1 | 2024-05-30 01:08:59 | 2024-06-01 06:53:00 | n |
| 193201 | IIEES SC | SHRO | Z | 1 | 1 | 2024-05-30 01:09:00 | 2024-06-01 06:53:00 | n |
| 193202 | IIEES SC | LMD1 | Z | 2 | 1 | 2024-05-30 01:09:04 | 2024-06-01 06:53:00 | n |
| 193203 | IIEES SC | JSSH | Z | 1 | 1 | 2024-05-30 01:09:05 | 2024-06-01 06:53:00 | n |
| 193204 | IIEES SC | IRSR | Z | 0.2 | 1 | 2024-05-30 01:09:07 | 2024-06-01 06:53:00 | n |
| 193205 | IIEES SC | JRKH | Z | 1 | 1 | 2024-05-30 01:09:07 | 2024-06-01 06:53:00 | n |
| 193206 | IIEES SC | GHVR | Z | 2 | 1 | 2024-05-30 01:09:14 | 2024-06-01 06:53:00 | n |
| 193207 | IIEES SC | SRVN | Z | 0.4 | 1 | 2024-05-30 01:09:15 | 2024-06-01 06:53:00 | n |
| 193208 | IIEES SC | UOSS | Z | 0.2 | 1 | 2024-05-30 01:09:20 | 2024-06-01 06:53:00 | n |
| 193209 | IIEES SC | BJRD | Z | 0.2 | 1 | 2024-05-30 01:09:22 | 2024-06-01 06:53:00 | n |
| 193210 | IIEES SC | MRVT | Z | 0.5 | 1 | 2024-05-30 01:09:22 | 2024-06-01 06:53:00 | n |
| 193211 | IIEES SC | ASAO | Z | 0.8 | 1 | 2024-05-30 01:09:27 | 2024-06-01 06:53:00 | n |
| 193212 | IIEES SC | QABG | Z | 0.09 | 1 | 2024-05-30 01:09:39 | 2024-06-01 06:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KRBR | Z | EPg | E | 2024-05-30 01:08:11 | 2.7 | n | 4 | 144 | 195 | ||
| IIEES SC | BSRN | Z | EPn | E | 2024-05-30 01:08:18 | 0.6 | y | 0 | 205 | 67 | ||
| IIEES SC | MEH | Z | EPn | E | 2024-05-30 01:08:23 | 0.2 | y | 0 | 242 | 274 | ||
| IIEES SC | TABS | Z | EPn | E | 2024-05-30 01:08:25 | -0.3 | y | 0 | 268 | 359 | ||
| IIEES SC | YZKH | Z | EPn | E | 2024-05-30 01:08:26 | -0.6 | y | 0 | 274 | 298 | ||
| IIEES SC | TAFT | Z | EPn | E | 2024-05-30 01:08:29 | 0.2 | y | 0 | 288 | 281 | ||
| IIEES SC | ZHSF | Z | EPn | E | 2024-05-30 01:08:41 | -0.2 | y | 0 | 392 | 117 | ||
| IIEES SC | SHRT | Z | EPn | E | 2024-05-30 01:08:42 | -0.2 | y | 0 | 399 | 48 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-05-30 01:08:48 | -0.1 | y | 0 | 445 | 293 | ||
| IIEES SC | GHIR | Z | EPn | E | 2024-05-30 01:08:57 | 0.5 | y | 0 | 518 | 231 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2024-05-30 01:09:00 | 1.4 | n | 4 | 530 | 267 | ||
| IIEES SC | TBJM | Z | EPn | E | 2024-05-30 01:08:59 | -0.4 | y | 0 | 537 | 34 | ||
| IIEES SC | SHRO | Z | EPn | E | 2024-05-30 01:09:00 | 0.3 | y | 0 | 540 | 349 | ||
| IIEES SC | ANJ | Z | EPn | E | 2024-05-30 01:09:01 | -1 | y | 0 | 558 | 327 | ||
| IIEES SC | SBZV | Z | EPn | E | 2024-05-30 01:09:04 | 0 | y | 0 | 573 | 4 | ||
| IIEES SC | LMD1 | Z | EPn | E | 2024-05-30 01:09:04 | -0.3 | y | 0 | 580 | 222 | ||
| IIEES SC | JSSH | Z | EPn | E | 2024-05-30 01:09:05 | -0.7 | y | 0 | 590 | 178 | ||
| IIEES SC | IRSR | Z | EPn | E | 2024-05-30 01:09:07 | 0.2 | y | 0 | 595 | 143 | ||
| IIEES SC | JRKH | Z | EPn | E | 2024-05-30 01:09:07 | -0.1 | y | 0 | 598 | 30 | ||
| IIEES SC | ABGH | Z | EPn | E | 2024-05-30 01:09:13 | 0.4 | y | 0 | 648 | 340 | ||
| IIEES SC | GHVR | Z | EPn | E | 2024-05-30 01:09:14 | -0.1 | y | 0 | 659 | 303 | ||
| IIEES SC | GLO | Z | EPn | E | 2024-05-30 01:09:15 | 0.7 | y | 0 | 660 | 332 | ||
| IIEES SC | SRVN | Z | EPn | E | 2024-05-30 01:09:15 | 0 | y | 0 | 664 | 130 | ||
| IIEES SC | KAGH | Z | EPn | E | 2024-05-30 01:09:18 | 0.1 | y | 0 | 684 | 22 | ||
| IIEES SC | DAMV | Z | EPn | E | 2024-05-30 01:09:16 | -2.1 | n | 4 | 685 | 315 | ||
| IIEES SC | UOSS | Z | EPn | E | 2024-05-30 01:09:20 | 0 | y | 0 | 703 | 188 | ||
| IIEES SC | CHBR | Z | EPn | E | 2024-05-30 01:09:18 | -1.8 | n | 4 | 705 | 152 | ||
| IIEES SC | BJRD | Z | EPn | E | 2024-05-30 01:09:22 | 0.2 | y | 0 | 718 | 2 | ||
| IIEES SC | MRVT | Z | EPn | E | 2024-05-30 01:09:22 | 0.4 | y | 0 | 719 | 352 | ||
| IIEES SC | ASAO | Z | EPn | E | 2024-05-30 01:09:27 | 0.1 | y | 0 | 761 | 299 | ||
| IIEES SC | QABG | Z | EPn | E | 2024-05-30 01:09:39 | -0.2 | y | 0 | 861 | 305 | ||
| IIEES SC | GIDE | Z | EPn | E | 2024-05-30 01:09:48 | 0.5 | y | 0 | 925 | 313 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2024-05-30 01:09:56 | 1 | y | 0 | 988 | 308 | ||
| IIEES SC | ILBA | Z | EPn | E | 2024-05-30 01:10:03 | -1.6 | y | 0 | 1062 | 284 | ||
