Magnitude |
:3.7 |
| Date & Time (UTC) | 2024-06-13 11:15:52.5 |
| Date & Time (Local) | 1403/3/24 14:45:52.5 |

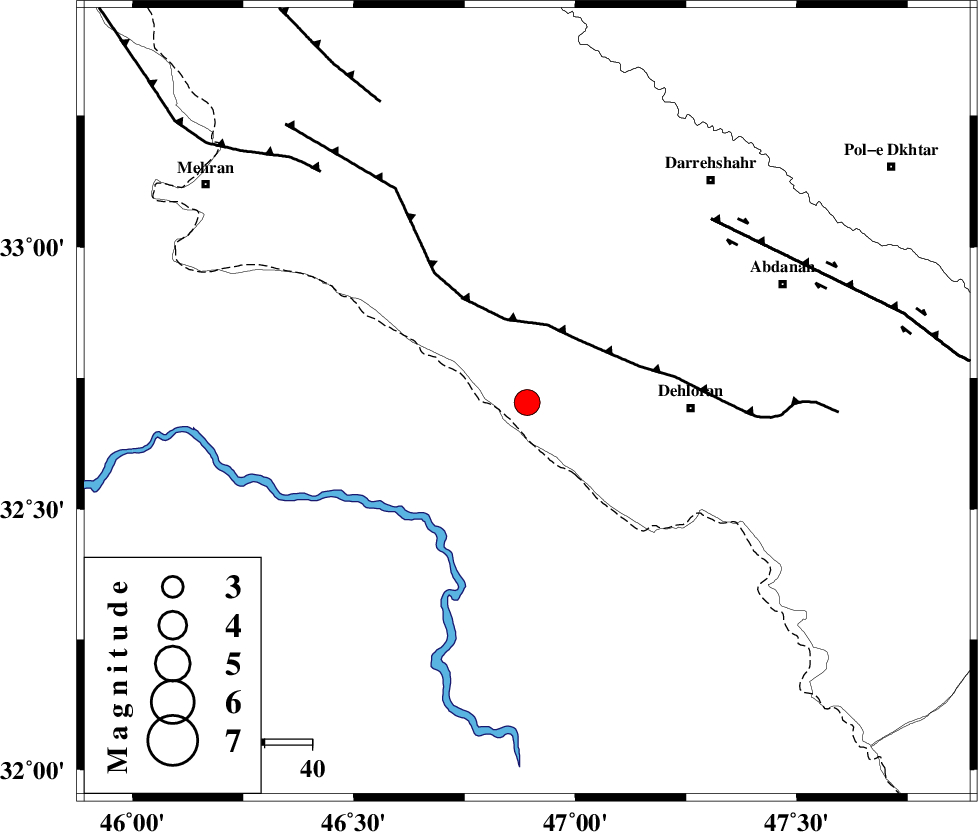

| Location | Lat:32.704 Lon: 46.891 |
| Region | Ilam Province, 35 km -West of Dehloran |
Nearest Cities |
|
| 16 km South of Bishehzar, Ilam Province | |
| 35 km North West of Dehloran, Ilam Province | |
| 47 km North West of Musian, Ilam Province | |
| 59 km South of Meymeh, Ilam Province | |
| 59 km South West of Abdanan, Ilam Province | |
| Depth | 19 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 17 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 55 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 65 km | |
| Number of Phases | 16 |
| RMS | 0.3 |
| Number of Stations | 16 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 193593 | IIEES SC | ILBA | Z | 1 | 1 | 2024-06-13 11:16:12 | 2024-06-15 04:46:00 | n |
| 193594 | IIEES SC | KCHF | Z | 2 | 1 | 2024-06-13 11:16:20 | 2024-06-15 04:46:00 | n |
| 193595 | IIEES SC | DHR | Z | 2 | 1 | 2024-06-13 11:16:27 | 2024-06-15 04:46:00 | n |
| 193596 | IIEES SC | ASAO | Z | 0.3 | 1 | 2024-06-13 11:16:44 | 2024-06-15 04:46:00 | n |
| 193597 | IIEES SC | SRSL | Z | 0.2 | 1 | 2024-06-13 11:16:50 | 2024-06-15 04:46:00 | n |
| 193598 | IIEES SC | GHVR | Z | 0.2 | 1 | 2024-06-13 11:16:56 | 2024-06-15 04:46:00 | n |
| 193599 | IIEES SC | MAHB | Z | 0.1 | 1 | 2024-06-13 11:16:57 | 2024-06-15 04:46:00 | n |
| 193600 | IIEES SC | KLNJ | Z | 0.1 | 1 | 2024-06-13 11:17:00 | 2024-06-15 04:46:00 | n |
| 193601 | IIEES SC | NASN | Z | 0.03 | 1 | 2024-06-13 11:17:08 | 2024-06-15 04:46:00 | n |
| 193602 | IIEES SC | YZKH | Z | 0.03 | 1 | 2024-06-13 11:17:29 | 2024-06-15 04:46:00 | n |
| 193603 | IIEES SC | GHIR | Z | 0.01 | 1 | 2024-06-13 11:17:34 | 2024-06-15 04:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | EPg | E | 2024-06-13 11:16:12 | 0.1 | y | 0 | 120 | 328 | ||
| IIEES SC | KCHF | Z | EPg | E | 2024-06-13 11:16:20 | 0 | y | 0 | 175 | 5 | ||
| IIEES SC | DHR | Z | EPn | E | 2024-06-13 11:16:27 | -0.2 | y | 0 | 226 | 348 | ||
| IIEES SC | ASAO | Z | EPn | E | 2024-06-13 11:16:44 | -0.1 | y | 0 | 356 | 55 | ||
| IIEES SC | SRSL | Z | EPn | E | 2024-06-13 11:16:50 | -0.2 | y | 0 | 412 | 341 | ||
| IIEES SC | QABG | Z | EPn | E | 2024-06-13 11:16:51 | 0.1 | y | 0 | 415 | 37 | ||
| IIEES SC | GHVR | Z | EPn | E | 2024-06-13 11:16:56 | 0.8 | y | 0 | 450 | 64 | ||
| IIEES SC | MAHB | Z | EPn | E | 2024-06-13 11:16:57 | 0.1 | y | 0 | 464 | 346 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2024-06-13 11:17:00 | 0.1 | y | 0 | 483 | 113 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-06-13 11:17:08 | -0.6 | y | 0 | 555 | 89 | ||
| IIEES SC | ANAR | Z | EPn | E | 2024-06-13 11:17:19 | 0.3 | y | 0 | 642 | 85 | ||
| IIEES SC | GRMI | Z | EPn | E | 2024-06-13 11:17:06 | -18.5 | n | 4 | 683 | 8 | ||
| IIEES SC | TAFT | Z | EPn | E | 2024-06-13 11:17:28 | 2.6 | n | 4 | 695 | 99 | ||
| IIEES SC | YZKH | Z | EPn | E | 2024-06-13 11:17:29 | -0.5 | y | 0 | 724 | 93 | ||
| IIEES SC | MEH | Z | EPn | E | 2024-06-13 11:17:25 | -7 | n | 4 | 744 | 101 | ||
| IIEES SC | GHIR | Z | EPn | E | 2024-06-13 11:17:34 | 0.1 | y | 0 | 763 | 130 | ||
