Magnitude |
:3.2 |
| Date & Time (UTC) | 2024-06-17 22:26:31.2 |
| Date & Time (Local) | 1403/3/29 01:56:31.2 |

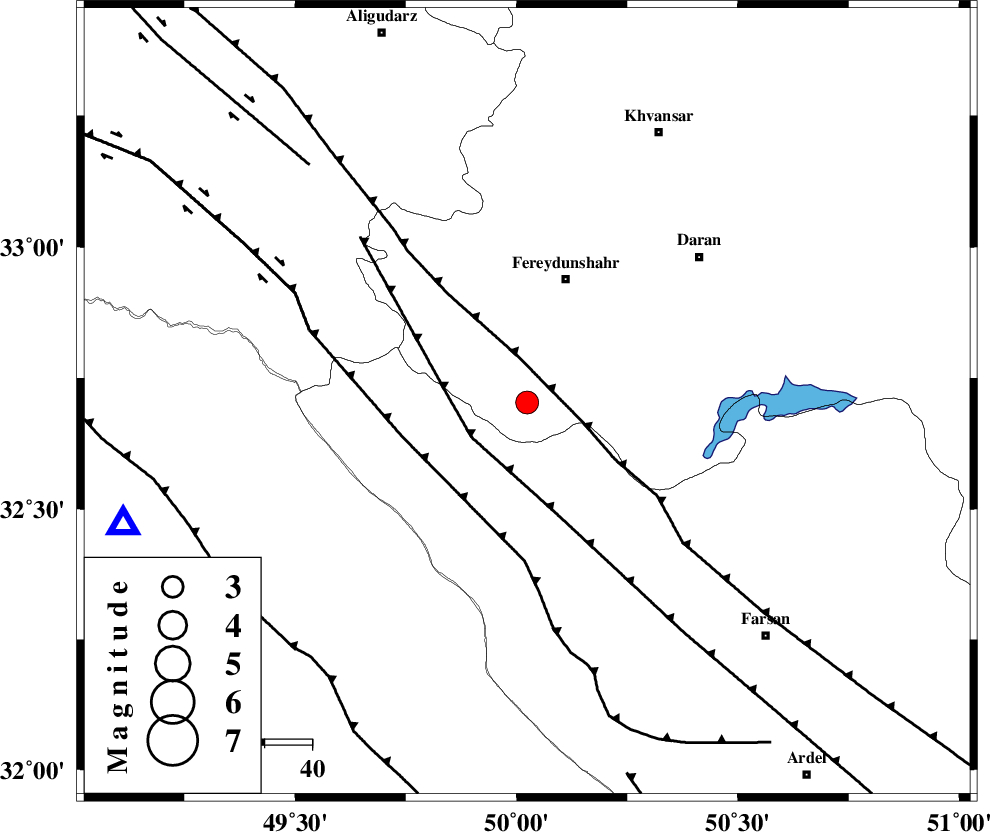

| Location | Lat:32.704 Lon: 50.024 |
| Region | Esfahan Province, 27 km South of Fereydunshahr |
Nearest Cities |
|
| 15 km North East of Durak, Chaharmahal Bakhtiari Province | |
| 19 km West of Ghale? sorkh, Esfahan Province | |
| 20 km South of Sibak, Esfahan Province | |
| 22 km South East of Masir, Esfahan Province | |
| 27 km South of Fereydunshahr, Esfahan Province | |
| Depth | 20 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 10 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 14 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 27 km | |
| Number of Phases | 18 |
| RMS | 0.4 |
| Number of Stations | 18 |
| Error in Latitude | >1.3 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 470.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 193650 | IIEES SC | AHWZ | Z | 2 | 1 | 2024-06-17 22:27:03 | 2024-06-18 04:43:00 | n |
| 193651 | IIEES SC | ASAO | Z | 0.6 | 1 | 2024-06-17 22:27:04 | 2024-06-18 04:43:00 | n |
| 193652 | IIEES SC | KLNJ | Z | 0.3 | 1 | 2024-06-17 22:27:08 | 2024-06-18 04:43:00 | n |
| 193653 | IIEES SC | NASN | Z | 0.2 | 1 | 2024-06-17 22:27:11 | 2024-06-18 04:43:00 | n |
| 193654 | IIEES SC | KCHF | Z | 0.2 | 1 | 2024-06-17 22:27:19 | 2024-06-18 04:43:00 | n |
| 193655 | IIEES SC | ANAR | Z | 0.04 | 1 | 2024-06-17 22:27:21 | 2024-06-18 04:43:00 | n |
| 193656 | IIEES SC | ILBA | Z | 0.08 | 1 | 2024-06-17 22:27:23 | 2024-06-18 04:43:00 | n |
| 193657 | IIEES SC | TAFT | Z | 0.03 | 1 | 2024-06-17 22:27:29 | 2024-06-18 04:43:00 | n |
| 193658 | IIEES SC | YZKH | Z | 0.05 | 1 | 2024-06-17 22:27:31 | 2024-06-18 04:43:00 | n |
| 193659 | IIEES SC | MEH | Z | 0.02 | 1 | 2024-06-17 22:27:35 | 2024-06-18 04:43:00 | n |
| 193660 | IIEES SC | GHIR | Z | 0.009 | 1 | 2024-06-17 22:27:47 | 2024-06-18 04:43:00 | n |
| 193661 | IIEES SC | SRSL | Z | 0.06 | 1 | 2024-06-17 22:27:49 | 2024-06-18 04:43:00 | n |
| 193662 | IIEES SC | SHRO | Z | 0.02 | 1 | 2024-06-17 22:27:59 | 2024-06-18 04:43:00 | n |
| 193663 | IIEES SC | TABS | Z | 0.006 | 1 | 2024-06-17 22:28:01 | 2024-06-18 04:43:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AHWZ | Z | EPn | E | 2024-06-17 22:27:03 | 0.2 | y | 0 | 201 | 221 | ||
| IIEES SC | ASAO | Z | EPn | E | 2024-06-17 22:27:04 | 0.5 | y | 0 | 204 | 0 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2024-06-17 22:27:08 | -0.2 | y | 0 | 240 | 142 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-06-17 22:27:11 | 0.3 | y | 0 | 261 | 88 | ||
| IIEES SC | KCHF | Z | EPn | E | 2024-06-17 22:27:19 | 0.1 | y | 0 | 327 | 302 | ||
| IIEES SC | QABG | Z | EPn | E | 2024-06-17 22:27:20 | 0.4 | y | 0 | 336 | 353 | ||
| IIEES SC | ANAR | Z | EPn | E | 2024-06-17 22:27:21 | -0.2 | y | 0 | 351 | 81 | ||
| IIEES SC | ILBA | Z | EPn | E | 2024-06-17 22:27:23 | -0.7 | y | 0 | 370 | 286 | ||
| IIEES SC | DHR | Z | EPn | E | 2024-06-17 22:27:27 | -0.8 | y | 0 | 403 | 303 | ||
| IIEES SC | TAFT | Z | EPn | E | 2024-06-17 22:27:29 | 0.8 | y | 0 | 406 | 106 | ||
| IIEES SC | YZKH | Z | EPn | E | 2024-06-17 22:27:31 | 0 | y | 0 | 430 | 95 | ||
| IIEES SC | MEH | Z | EPn | E | 2024-06-17 22:27:35 | -0.1 | y | 0 | 457 | 109 | ||
| IIEES SC | GIDE | Z | EPn | E | 2024-06-17 22:27:36 | 0 | y | 0 | 468 | 358 | ||
| IIEES SC | GLO | Z | EPn | E | 2024-06-17 22:27:46 | 0.4 | y | 0 | 547 | 40 | ||
| IIEES SC | GHIR | Z | EPn | E | 2024-06-17 22:27:47 | -0.9 | y | 0 | 566 | 150 | ||
| IIEES SC | SRSL | Z | EPn | E | 2024-06-17 22:27:49 | -0.3 | y | 0 | 574 | 313 | ||
| IIEES SC | SHRO | Z | EPn | E | 2024-06-17 22:27:59 | -0.7 | y | 0 | 662 | 56 | ||
| IIEES SC | TABS | Z | EPn | E | 2024-06-17 22:28:01 | -0.3 | y | 0 | 670 | 81 | ||
