Magnitude |
:3.4 |
| Date & Time (UTC) | 2024-07-14 17:25:42.6 |
| Date & Time (Local) | 1403/4/24 20:55:42.6 |

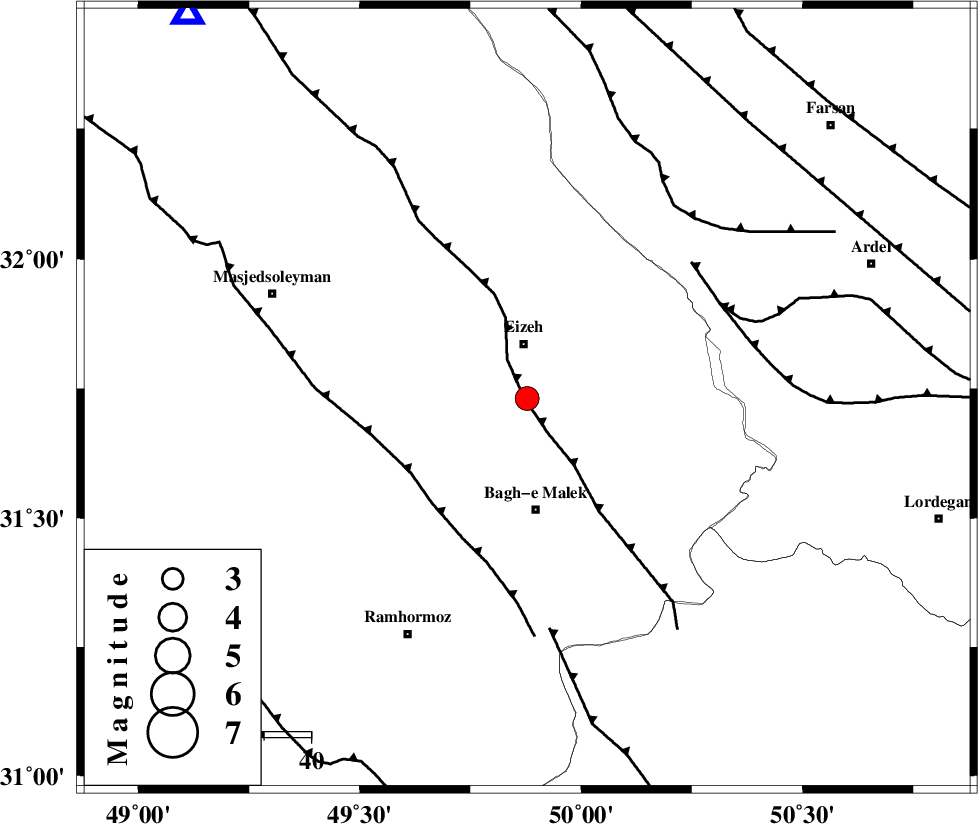

| Location | Lat:31.731 Lon: 49.878 |
| Region | Khoozestan Province, 12 km South of Izeh |
Nearest Cities |
|
| 11 km North of Ghaleh tal, Khoozestan Province | |
| 11 km of Chenarestan, Khoozestan Province | |
| 12 km South of Izeh, Khoozestan Province | |
| 16 km South of Rasvand, Khoozestan Province | |
| 23 km North West of Abolabbas, Khoozestan Province | |
| Depth | 8 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 1 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 30 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 46 km | |
| Number of Phases | 22 |
| RMS | 0.4 |
| Number of Stations | 22 |
| Error in Latitude | >1.1 km |
| Error in Longitude | 1.1 km |
| Error in Depth | 5.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 194095 | IIEES SC | AHWZ | Z | 4 | 1 | 2024-07-14 17:26:03 | 2024-07-20 10:11:00 | n |
| 194096 | IIEES SC | AHWZ | Z | 4 | 1 | 2024-07-14 17:26:19 | 2024-07-20 10:11:00 | n |
| 194097 | IIEES SC | KLNJ | Z | 1 | 1 | 2024-07-14 17:26:35 | 2024-07-20 10:11:00 | n |
| 194098 | IIEES SC | KLNJ | Z | 1 | 1 | 2024-07-14 17:26:12 | 2024-07-20 10:11:00 | n |
| 194099 | IIEES SC | NASN | Z | 0.1 | 1 | 2024-07-14 17:26:28 | 2024-07-20 10:11:00 | n |
| 194100 | IIEES SC | ASAO | Z | 0.3 | 1 | 2024-07-14 17:26:30 | 2024-07-20 10:11:00 | n |
| 194101 | IIEES SC | GHVR | Z | 0.2 | 1 | 2024-07-14 17:26:32 | 2024-07-20 10:11:00 | n |
| 194102 | IIEES SC | KCHF | Z | 0.1 | 1 | 2024-07-14 17:26:39 | 2024-07-20 10:11:00 | n |
| 194103 | IIEES SC | ANAR | Z | 0.04 | 1 | 2024-07-14 17:26:39 | 2024-07-20 10:11:00 | n |
| 194104 | IIEES SC | TAFT | Z | 0.05 | 1 | 2024-07-14 17:26:41 | 2024-07-20 10:11:00 | n |
| 194105 | IIEES SC | TABS | Z | 0.02 | 1 | 2024-07-14 17:27:18 | 2024-07-20 10:11:00 | n |
| 194106 | IIEES SC | MRVT | Z | 0.008 | 1 | 2024-07-14 17:27:38 | 2024-07-20 10:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AHWZ | Z | EPg | E | 2024-07-14 17:26:03 | 0 | y | 0 | 125 | 249 | ||
| IIEES SC | AHWZ | Z | ESg | E | 2024-07-14 17:26:19 | 0 | y | 0 | 125 | 249 | ||
| IIEES SC | KLNJ | Z | EPg | E | 2024-07-14 17:26:12 | 0.1 | y | 0 | 182 | 116 | ||
| IIEES SC | KLNJ | Z | ESg | E | 2024-07-14 17:26:35 | 0.7 | y | 0 | 182 | 116 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-07-14 17:26:28 | -0.4 | y | 0 | 300 | 67 | ||
| IIEES SC | ASAO | Z | EPn | E | 2024-07-14 17:26:30 | 0.3 | y | 0 | 313 | 3 | ||
| IIEES SC | GHVR | Z | EPn | E | 2024-07-14 17:26:32 | 0.8 | y | 0 | 330 | 23 | ||
| IIEES SC | KCHF | Z | EPn | E | 2024-07-14 17:26:39 | 0.3 | y | 0 | 387 | 317 | ||
| IIEES SC | ANAR | Z | EPn | E | 2024-07-14 17:26:39 | -0.6 | y | 0 | 397 | 66 | ||
| IIEES SC | ILBA | Z | EPn | E | 2024-07-14 17:26:38 | -2.2 | n | 4 | 403 | 301 | ||
| IIEES SC | TAFT | Z | EPn | E | 2024-07-14 17:26:41 | -0.3 | y | 0 | 407 | 90 | ||
| IIEES SC | QABG | Z | EPn | E | 2024-07-14 17:26:46 | 0.2 | y | 0 | 442 | 356 | ||
| IIEES SC | YZKH | Z | EPn | E | 2024-07-14 17:26:25 | -21.9 | n | 4 | 451 | 81 | ||
| IIEES SC | MEH | Z | EPn | E | 2024-07-14 17:26:46 | -0.9 | y | 0 | 451 | 95 | ||
| IIEES SC | DHR | Z | EPn | E | 2024-07-14 17:26:43 | -5.1 | n | 4 | 463 | 315 | ||
| IIEES SC | DAMV | Z | EPn | E | 2024-07-14 17:26:45 | -5.1 | n | 4 | 474 | 24 | ||
| IIEES SC | GHIR | Z | EPn | E | 2024-07-14 17:26:51 | -0.4 | y | 0 | 486 | 142 | ||
| IIEES SC | GLO | Z | EPn | E | 2024-07-14 17:27:10 | -0.9 | y | 0 | 643 | 35 | ||
| IIEES SC | SRSL | Z | EPn | E | 2024-07-14 17:27:11 | 0 | y | 0 | 645 | 320 | ||
| IIEES SC | TABS | Z | EPn | E | 2024-07-14 17:27:18 | -0.8 | y | 0 | 712 | 73 | ||
| IIEES SC | SHRO | Z | EPn | E | 2024-07-14 17:27:18 | -4.6 | n | 4 | 740 | 50 | ||
| IIEES SC | MRVT | Z | EPn | E | 2024-07-14 17:27:38 | -0.7 | y | 0 | 870 | 41 | ||
