Magnitude |
:3.8 |
| Date & Time (UTC) | 2024-07-20 20:12:29.1 |
| Date & Time (Local) | 1403/4/30 23:42:29.1 |

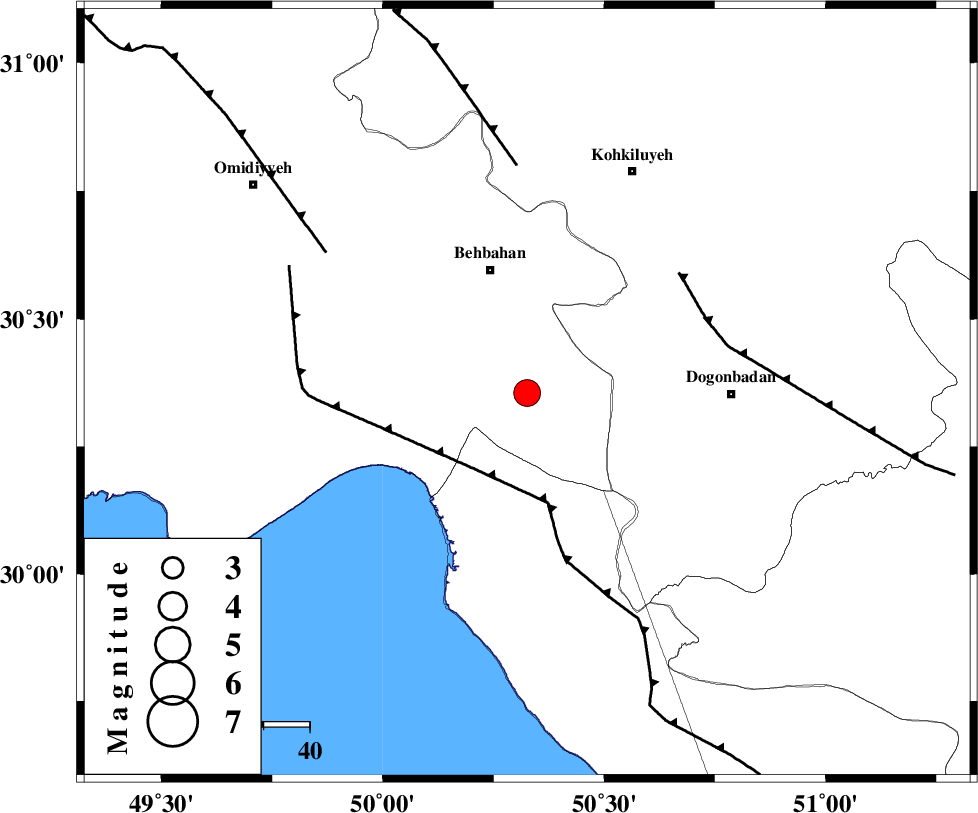

| Location | Lat:30.355 Lon: 50.326 |
| Region | Khoozestan Province, 28 km South of Behbahan |
Nearest Cities |
|
| 11 km North East of Sardasht, Khoozestan Province | |
| 25 km North East of Ameri, Bushehr Province | |
| 26 km East of Darunak, Khoozestan Province | |
| 28 km South of Behbahan, Khoozestan Province | |
| 31 km South of Mansuriyeh, Khoozestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 20 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 24 km | |
| MISHAN_F (Length: 76 km) , Distance to epicenter: 42 km | |
| Number of Phases | 22 |
| RMS | 0.5 |
| Number of Stations | 22 |
| Error in Latitude | >1.9 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 8.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 194126 | IIEES SC | KLNJ | Z | 6 | 1 | 2024-07-20 20:12:52 | 2024-07-21 04:22:00 | n |
| 194127 | IIEES SC | AHWZ | Z | 3 | 1 | 2024-07-20 20:13:00 | 2024-07-21 04:22:00 | n |
| 194128 | IIEES SC | NASN | Z | 0.2 | 1 | 2024-07-20 20:13:22 | 2024-07-21 04:22:00 | n |
| 194129 | IIEES SC | GHVR | Z | 0.1 | 1 | 2024-07-20 20:13:35 | 2024-07-21 04:22:00 | n |
| 194130 | IIEES SC | ASAO | Z | 0.1 | 1 | 2024-07-20 20:13:35 | 2024-07-21 04:22:00 | n |
| 194131 | IIEES SC | ILBA | Z | 0.09 | 1 | 2024-07-20 20:13:43 | 2024-07-21 04:22:00 | n |
| 194132 | IIEES SC | DHR | Z | 0.1 | 1 | 2024-07-20 20:13:54 | 2024-07-21 04:22:00 | n |
| 194133 | IIEES SC | BNDS | Z | 0.08 | 1 | 2024-07-20 20:13:59 | 2024-07-21 04:22:00 | n |
| 194134 | IIEES SC | TABS | Z | 0.03 | 1 | 2024-07-20 20:14:08 | 2024-07-21 04:22:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KLNJ | Z | EPg | E | 2024-07-20 20:12:52 | -0.5 | y | 0 | 141 | 59 | ||
| IIEES SC | AHWZ | Z | EPg | E | 2024-07-20 20:13:00 | -0.1 | y | 0 | 194 | 304 | ||
| IIEES SC | GHIR | Z | EPn | E | 2024-07-20 20:13:20 | 0.5 | y | 0 | 346 | 132 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-07-20 20:13:22 | -0.1 | y | 0 | 359 | 41 | ||
| IIEES SC | TAFT | Z | EPn | E | 2024-07-20 20:13:27 | 0.8 | y | 0 | 397 | 68 | ||
| IIEES SC | MEH | Z | EPn | E | 2024-07-20 20:13:31 | 0.7 | y | 0 | 426 | 74 | ||
| IIEES SC | ANAR | Z | EPn | E | 2024-07-20 20:13:32 | -0.3 | y | 0 | 450 | 46 | ||
| IIEES SC | YZKH | Z | EPn | E | 2024-07-20 20:13:12 | -22.5 | n | 4 | 464 | 61 | ||
| IIEES SC | GHVR | Z | EPn | E | 2024-07-20 20:13:35 | 0.4 | y | 0 | 466 | 11 | ||
| IIEES SC | ASAO | Z | EPn | E | 2024-07-20 20:13:35 | 0.1 | y | 0 | 466 | 357 | ||
| IIEES SC | ILBA | Z | EPn | E | 2024-07-20 20:13:43 | -0.2 | y | 0 | 532 | 313 | ||
| IIEES SC | DAMV | Z | EPn | E | 2024-07-20 20:13:38 | -13.8 | n | 4 | 605 | 15 | ||
| IIEES SC | DHR | Z | EPn | E | 2024-07-20 20:13:54 | 1.1 | y | 0 | 608 | 322 | ||
| IIEES SC | KRBR | Z | EPn | E | 2024-07-20 20:13:47 | -7.2 | n | 4 | 621 | 94 | ||
| IIEES SC | BNDS | Z | EPn | E | 2024-07-20 20:13:59 | -0.1 | y | 0 | 658 | 120 | ||
| IIEES SC | TABS | Z | EPn | E | 2024-07-20 20:14:08 | -0.6 | y | 0 | 738 | 60 | ||
| IIEES SC | GLO | Z | EPn | E | 2024-07-20 20:14:11 | -0.3 | y | 0 | 756 | 26 | ||
| IIEES SC | SRSL | Z | EPn | E | 2024-07-20 20:14:16 | 0.7 | y | 0 | 794 | 325 | ||
| IIEES SC | KBAM | Z | EPn | E | 2024-07-20 20:14:16 | 0.5 | y | 0 | 798 | 100 | ||
| IIEES SC | SHRO | Z | EPn | E | 2024-07-20 20:14:13 | -6.2 | n | 4 | 821 | 40 | ||
| IIEES SC | UOSS | Z | EPn | E | 2024-07-20 20:14:19 | -0.9 | y | 0 | 834 | 136 | ||
| IIEES SC | MRVT | Z | EPn | E | 2024-07-20 20:14:37 | -0.7 | y | 0 | 970 | 33 | ||
