Magnitude |
:3.1 |
| Date & Time (UTC) | 2019-04-01 10:43:51.5 |
| Date & Time (Local) | 1398/1/12 15:13:51.5 |

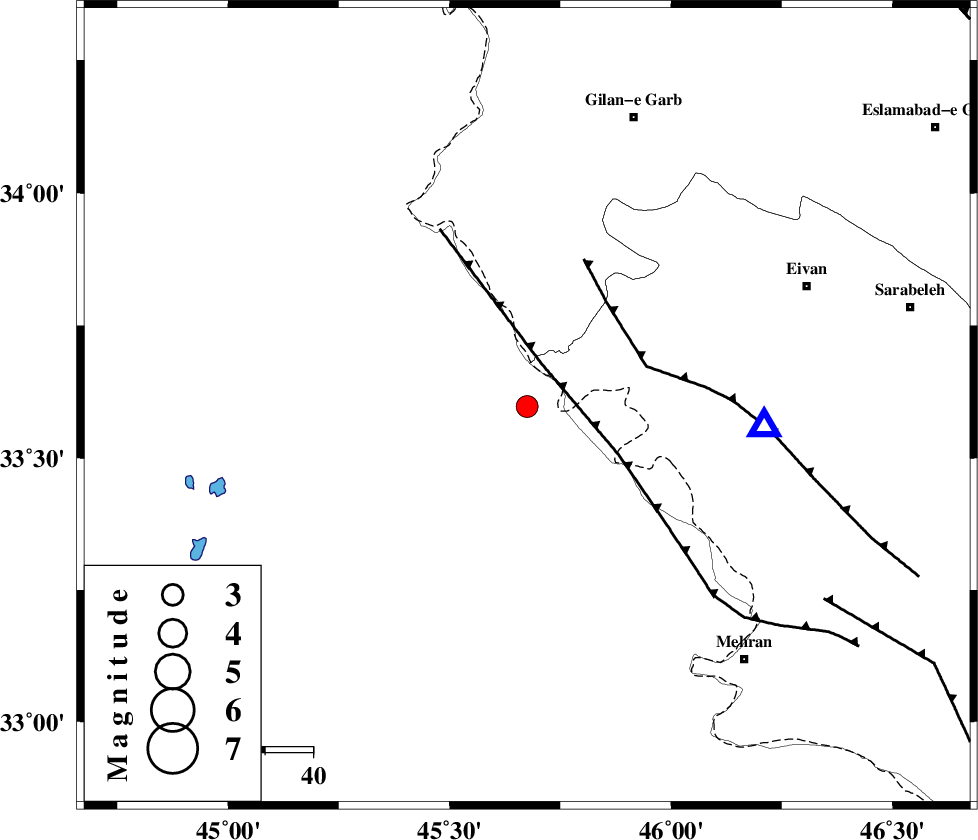

| Location | Lat:33.598 Lon: 45.675 |
| Region | Iraq, 65 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 31 km South of Sumar, Kermanshah Province | |
| 49 km North West of Salehabad, Ilam Province | |
| 55 km South West of Nian, Kermanshah Province | |
| 56 km West of Chavar, Ilam Province | |
| 57 km South West of Teran, Ilam Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 9 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 26 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 74 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 194182 | IIEES SC | SRSL | Z | 0.1 | 1 | 2019-04-01 10:44:35 | 2024-07-21 07:15:00 | n |
| 194183 | IIEES SC | SRSL | Z | 0.1 | 1 | 2019-04-01 10:45:08 | 2024-07-21 07:15:00 | n |
| 194184 | IIEES SC | GTMR | Z | 0.1 | 1 | 2019-04-01 10:44:42 | 2024-07-21 07:15:00 | n |
| 194185 | IIEES SC | ASAO | Z | 0.04 | 1 | 2019-04-01 10:44:51 | 2024-07-21 07:15:00 | n |
| 194186 | IIEES SC | GRMI | Z | 0.01 | 1 | 2019-04-01 10:45:15 | 2024-07-21 07:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SRSL | Z | EPn | E | 2019-04-01 10:44:35 | -0.1 | y | 0 | 291 | 356 | ||
| IIEES SC | SRSL | Z | ES | E | 2019-04-01 10:45:08 | 0.3 | y | 0 | 291 | 356 | ||
| IIEES SC | GTMR | Z | EPn | E | 2019-04-01 10:44:42 | 0.1 | y | 0 | 345 | 111 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2019-04-01 10:44:49 | 0 | y | 0 | 398 | 88 | ||
| IIEES SC | ASAO | Z | EPn | E | 2019-04-01 10:44:51 | -0.1 | y | 0 | 415 | 75 | ||
| IIEES SC | GHVR | Z | EPn | E | 2019-04-01 10:45:04 | 0.1 | y | 0 | 524 | 79 | ||
| IIEES SC | GRMI | Z | EPn | E | 2019-04-01 10:45:15 | -0.4 | y | 0 | 612 | 19 | ||
