Magnitude |
:3.7 |
| Date & Time (UTC) | 2019-04-01 11:08:38.6 |
| Date & Time (Local) | 1398/1/12 15:38:38.6 |

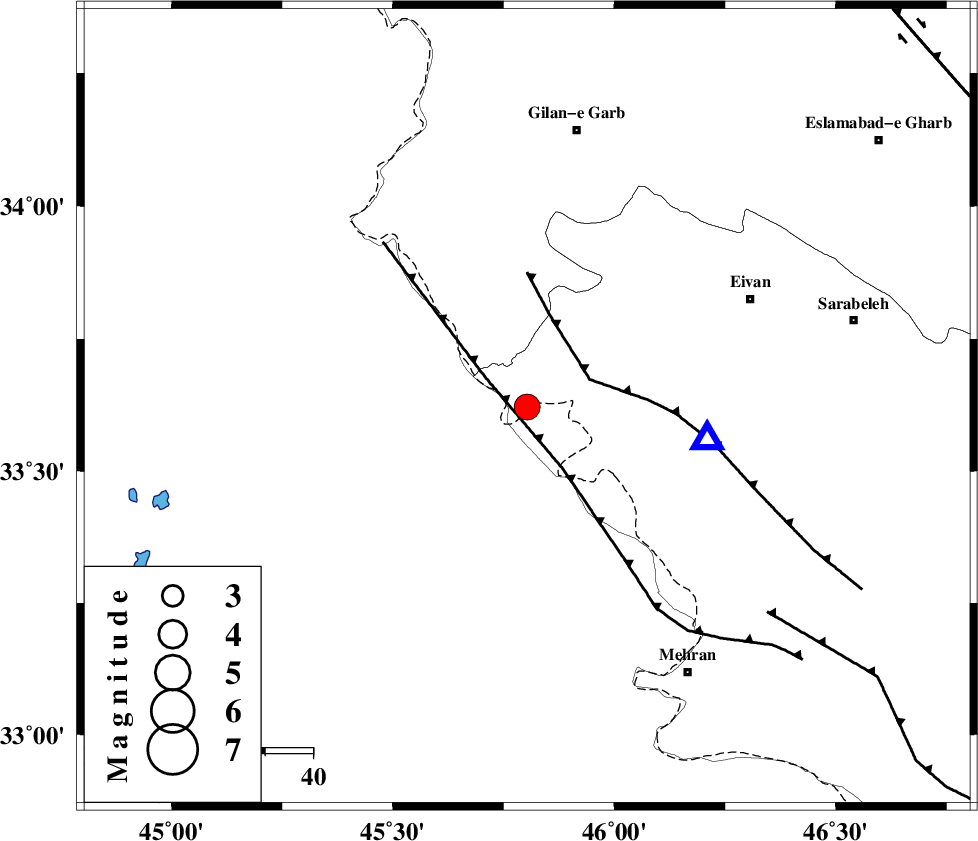

| Location | Lat:33.621 Lon: 45.803 |
| Region | Ilam Province, 59 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 32 km South East of Sumar, Kermanshah Province | |
| 39 km North West of Salehabad, Ilam Province | |
| 44 km West of Chavar, Ilam Province | |
| 48 km South West of Teran, Ilam Province | |
| 48 km South West of Nian, Kermanshah Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 11 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 14 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 66 km | |
| Number of Phases | 10 |
| RMS | 0.5 |
| Number of Stations | 10 |
| Error in Latitude | >5.2 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 7.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 194201 | IIEES SC | SRSL | Z | 0.4 | 1 | 2019-04-01 11:09:21 | 2024-07-21 10:01:00 | n |
| 194202 | IIEES SC | SRSL | Z | 0.4 | 1 | 2019-04-01 11:09:55 | 2024-07-21 10:01:00 | n |
| 194203 | IIEES SC | GTMR | Z | 0.5 | 1 | 2019-04-01 11:09:27 | 2024-07-21 10:01:00 | n |
| 194204 | IIEES SC | KHMZ | Z | 0.2 | 1 | 2019-04-01 11:09:34 | 2024-07-21 10:01:00 | n |
| 194205 | IIEES SC | ASAO | Z | 0.2 | 1 | 2019-04-01 11:09:37 | 2024-07-21 10:01:00 | n |
| 194206 | IIEES SC | GHVR | Z | 0.2 | 1 | 2019-04-01 11:09:50 | 2024-07-21 10:01:00 | n |
| 194207 | IIEES SC | GRMI | Z | 0.02 | 1 | 2019-04-01 11:10:01 | 2024-07-21 10:01:00 | n |
| 194208 | IIEES SC | NASN | Z | 0.03 | 1 | 2019-04-01 11:10:08 | 2024-07-21 10:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SRSL | Z | EPn | E | 2019-04-01 11:09:21 | -0.7 | y | 0 | 289 | 353 | ||
| IIEES SC | SRSL | Z | ES | E | 2019-04-01 11:09:55 | 0.4 | y | 0 | 289 | 353 | ||
| IIEES SC | GTMR | Z | EPn | E | 2019-04-01 11:09:27 | -0.3 | y | 0 | 334 | 112 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2019-04-01 11:09:34 | -0.6 | y | 0 | 386 | 88 | ||
| IIEES SC | ASAO | Z | EPn | E | 2019-04-01 11:09:37 | 0.3 | y | 0 | 403 | 75 | ||
| IIEES SC | GHVR | Z | EPn | E | 2019-04-01 11:09:50 | 0.2 | y | 0 | 512 | 79 | ||
| IIEES SC | GIDE | Z | EPn | E | 2019-04-01 11:09:51 | 0.9 | y | 0 | 518 | 45 | ||
| IIEES SC | GRMI | Z | EPn | E | 2019-04-01 11:10:01 | -0.2 | y | 0 | 605 | 18 | ||
| IIEES SC | DAMV | Z | EPn | E | 2019-04-01 11:10:01 | -0.3 | y | 0 | 608 | 68 | ||
| IIEES SC | NASN | Z | EPn | E | 2019-04-01 11:10:08 | 0.3 | y | 0 | 660 | 98 | ||
