Magnitude |
:3.2 |
| Date & Time (UTC) | 2024-07-22 04:38:43.3 |
| Date & Time (Local) | 1403/5/1 08:08:43.3 |

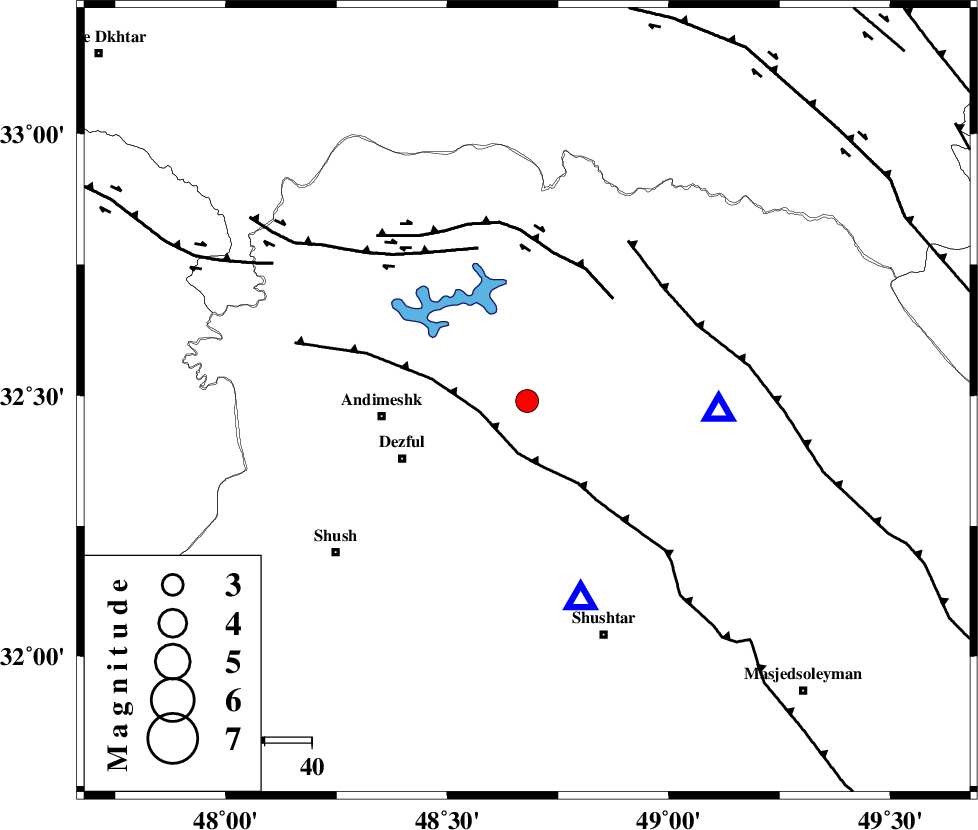

| Location | Lat:32.489 Lon: 48.68 |
| Region | Khoozestan Province, 31 km -East of Andimeshk |
Nearest Cities |
|
| 11 km North of Mahur berenji, Khoozestan Province | |
| 15 km West of Sardasht, Khoozestan Province | |
| 29 km North East of Dezful, Khoozestan Province | |
| 30 km North West of Gatvand, Khoozestan Province | |
| 31 km North East of Andimeshk, Khoozestan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 10 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 28 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 34 km | |
| Number of Phases | 12 |
| RMS | 0.4 |
| Number of Stations | 12 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 22 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 194239 | IIEES SC | KCHF | Z | 0.2 | 1 | 2024-07-22 04:39:23 | 2024-07-22 07:48:00 | n |
| 194240 | IIEES SC | KLNJ | Z | 0.2 | 1 | 2024-07-22 04:39:31 | 2024-07-22 07:48:00 | n |
| 194241 | IIEES SC | DHR | Z | 0.1 | 1 | 2024-07-22 04:39:31 | 2024-07-22 07:48:00 | n |
| 194242 | IIEES SC | GHVR | Z | 0.1 | 1 | 2024-07-22 04:39:32 | 2024-07-22 07:48:00 | n |
| 194243 | IIEES SC | NASN | Z | 0.04 | 1 | 2024-07-22 04:39:39 | 2024-07-22 07:48:00 | n |
| 194244 | IIEES SC | CHTH | Z | 0.03 | 1 | 2024-07-22 04:39:46 | 2024-07-22 07:48:00 | n |
| 194245 | IIEES SC | GIDE | Z | 0.009 | 1 | 2024-07-22 04:39:53 | 2024-07-22 07:48:00 | n |
| 194246 | IIEES SC | SRSL | Z | 0.06 | 1 | 2024-07-22 04:39:53 | 2024-07-22 07:48:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AHWZ | Z | EPg | E | 2024-07-22 04:39:04 | 0.1 | y | 0 | 128 | 182 | ||
| IIEES SC | KCHF | Z | EPn | E | 2024-07-22 04:39:23 | 0.8 | y | 0 | 250 | 322 | ||
| IIEES SC | ILBA | Z | EPn | E | 2024-07-22 04:39:20 | -3.3 | n | 4 | 263 | 299 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2024-07-22 04:39:31 | -0.3 | y | 0 | 321 | 121 | ||
| IIEES SC | DHR | Z | EPn | E | 2024-07-22 04:39:31 | -0.1 | y | 0 | 325 | 319 | ||
| IIEES SC | GHVR | Z | EPn | E | 2024-07-22 04:39:32 | 0.7 | y | 0 | 325 | 47 | ||
| IIEES SC | QABG | Z | EPn | E | 2024-07-22 04:39:36 | -0.4 | y | 0 | 367 | 13 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-07-22 04:39:39 | 0.2 | y | 0 | 389 | 85 | ||
| IIEES SC | CHTH | Z | EPn | E | 2024-07-22 04:39:46 | 0.3 | y | 0 | 441 | 31 | ||
| IIEES SC | GIDE | Z | EPn | E | 2024-07-22 04:39:53 | -0.5 | y | 0 | 503 | 12 | ||
| IIEES SC | SRSL | Z | EPn | E | 2024-07-22 04:39:53 | -0.8 | y | 0 | 510 | 324 | ||
| IIEES SC | MEH | Z | EPn | E | 2024-07-22 04:40:02 | -0.6 | y | 0 | 574 | 102 | ||
