Magnitude |
:3.3 |
| Date & Time (UTC) | 2024-07-24 11:10:14.0 |
| Date & Time (Local) | 1403/5/3 14:40:14.0 |

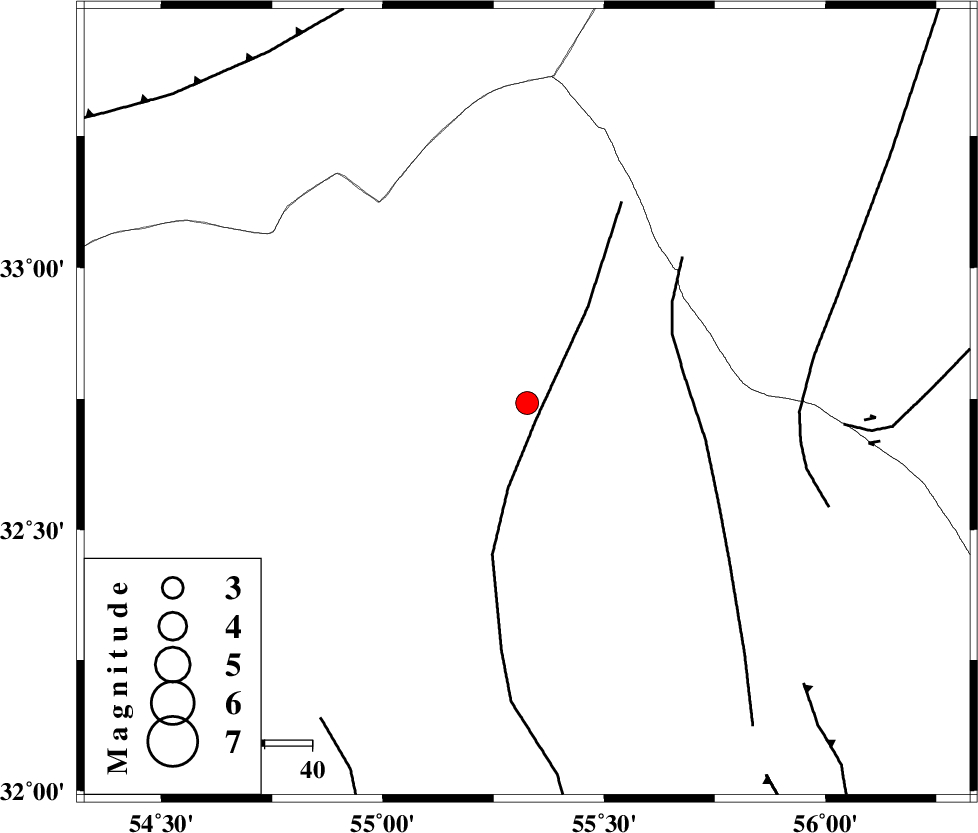

| Location | Lat:32.742 Lon: 55.326 |
| Region | Yazd Province, 127 km North of Bafq |
Nearest Cities |
|
| 38 km South West of Robat-e posht-e badam, Yazd Province | |
| 55 km South East of Hajiabad, Yazd Province | |
| 61 km East of Zarrin, Yazd Province | |
| 77 km North East of Kharaneq, Yazd Province | |
| 86 km South East of Mehranjan, Esfahan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| POSHT_E_BADAM_F (Length: 128 km) , Distance to epicenter: 4 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 34 km | |
| NAINI_F (Length: 342 km) , Distance to epicenter: 58 km | |
| Number of Phases | 21 |
| RMS | 0.4 |
| Number of Stations | 21 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 1.4 km |
| Error in Depth | 6.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 194338 | IIEES SC | TAFT | Z | 0.6 | 1 | 2024-07-24 11:10:40 | 2024-08-14 06:09:00 | n |
| 194339 | IIEES SC | TABS | Z | 0.5 | 1 | 2024-07-24 11:10:45 | 2024-08-14 06:09:00 | n |
| 194340 | IIEES SC | NASN | Z | 0.6 | 1 | 2024-07-24 11:10:51 | 2024-08-14 06:09:00 | n |
| 194341 | IIEES SC | KRBR | Z | 0.2 | 1 | 2024-07-24 11:11:03 | 2024-08-14 06:09:00 | n |
| 194342 | IIEES SC | KLNJ | Z | 0.09 | 1 | 2024-07-24 11:11:12 | 2024-08-14 06:09:00 | n |
| 194343 | IIEES SC | GHVR | Z | 0.06 | 1 | 2024-07-24 11:11:15 | 2024-08-14 06:09:00 | n |
| 194344 | IIEES SC | SHRT | Z | 0.03 | 1 | 2024-07-24 11:11:20 | 2024-08-14 06:09:00 | n |
| 194345 | IIEES SC | MRVT | Z | 0.02 | 1 | 2024-07-24 11:11:30 | 2024-08-14 06:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | YZKH | Z | EPg | E | 2024-07-24 11:10:20 | -7.5 | n | 4 | 79 | 241 | ||
| IIEES SC | TAFT | Z | EPg | E | 2024-07-24 11:10:40 | 0 | y | 0 | 157 | 224 | ||
| IIEES SC | ANAR | Z | EPg | E | 2024-07-24 11:10:39 | -0.6 | y | 0 | 157 | 288 | ||
| IIEES SC | MEH | Z | EPg | E | 2024-07-24 11:10:41 | 0.4 | y | 0 | 164 | 204 | ||
| IIEES SC | TABS | Z | EPg | E | 2024-07-24 11:10:45 | 0.2 | y | 0 | 195 | 59 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-07-24 11:10:51 | 0.1 | y | 0 | 236 | 272 | ||
| IIEES SC | KRBR | Z | EPn | E | 2024-07-24 11:11:03 | -0.5 | y | 0 | 335 | 156 | ||
| IIEES SC | SHRO | Z | EPn | E | 2024-07-24 11:11:03 | -4.2 | n | 4 | 368 | 10 | ||
| IIEES SC | BSRN | Z | EPn | E | 2024-07-24 11:10:51 | -16 | n | 4 | 368 | 104 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2024-07-24 11:11:12 | 0 | y | 0 | 402 | 241 | ||
| IIEES SC | GHVR | Z | EPn | E | 2024-07-24 11:11:15 | 0.2 | y | 0 | 425 | 297 | ||
| IIEES SC | GLO | Z | EPn | E | 2024-07-24 11:11:15 | -0.7 | y | 0 | 439 | 342 | ||
| IIEES SC | DAMV | Z | EPn | E | 2024-07-24 11:11:12 | -4.7 | n | 4 | 445 | 316 | ||
| IIEES SC | SBZV | Z | EPn | E | 2024-07-24 11:11:18 | -0.1 | y | 0 | 456 | 27 | ||
| IIEES SC | SHRT | Z | EPn | E | 2024-07-24 11:11:20 | -0.3 | y | 0 | 474 | 78 | ||
| IIEES SC | KBAM | Z | EPn | E | 2024-07-24 11:11:35 | 11.3 | n | 4 | 499 | 143 | ||
| IIEES SC | TBJM | Z | EPn | E | 2024-07-24 11:11:31 | 2.6 | n | 4 | 540 | 59 | ||
| IIEES SC | MRVT | Z | EPn | E | 2024-07-24 11:11:30 | 0.3 | y | 0 | 550 | 7 | ||
| IIEES SC | QABG | Z | EPn | E | 2024-07-24 11:11:40 | 0.6 | y | 0 | 623 | 302 | ||
| IIEES SC | KAGH | Z | EPn | E | 2024-07-24 11:11:41 | 1 | y | 0 | 630 | 42 | ||
| IIEES SC | DHR | Z | EPn | E | 2024-07-24 11:11:44 | -24 | n | 4 | 857 | 285 | ||
