Magnitude |
:3.4 |
| Date & Time (UTC) | 2024-08-20 12:52:44.4 |
| Date & Time (Local) | 1403/5/30 16:22:44.4 |

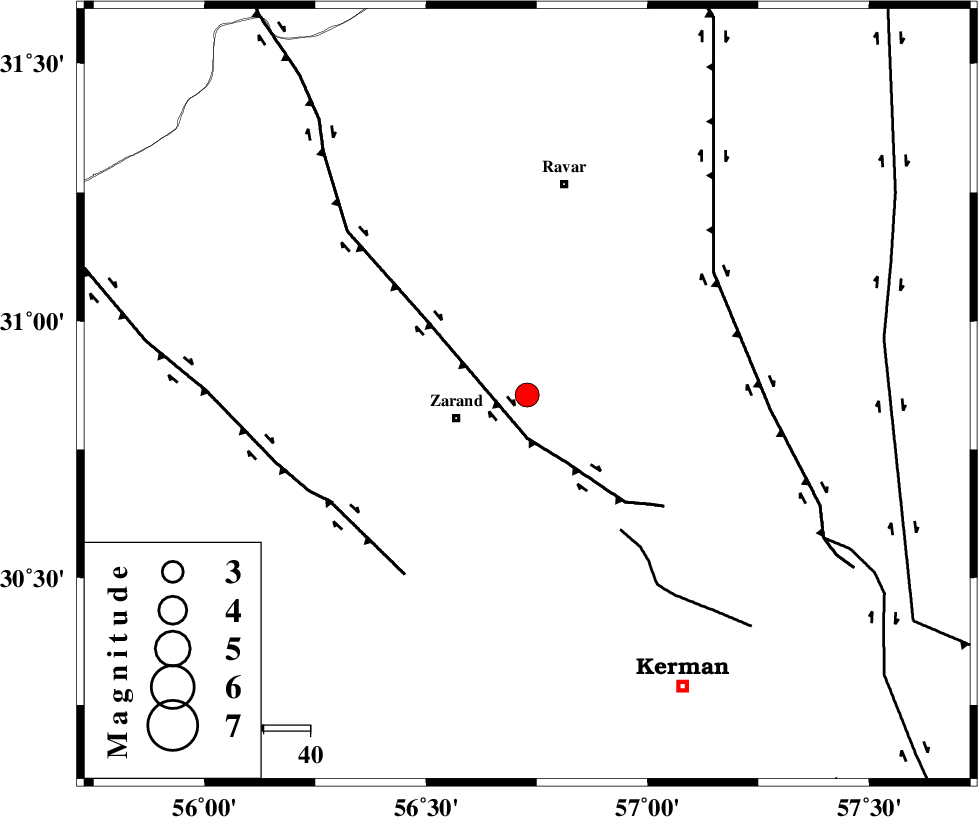

| Location | Lat:30.856 Lon: 56.728 |
| Region | Kerman Province, 16 km -East of Zarand |
Nearest Cities |
|
| 5 km North of Hatkan, Kerman Province | |
| 16 km North of Bahaabad, Kerman Province | |
| 16 km North of Khankuk, Kerman Province | |
| 16 km North East of Zarand, Kerman Province | |
| 19 km North East of Mohammadabad, Kerman Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 9 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 35 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 47 km | |
| Number of Phases | 14 |
| RMS | 0.2 |
| Number of Stations | 14 |
| Error in Latitude | >1.3 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 340.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 194605 | IIEES SC | BSRN | Z | 0.2 | 1 | 2024-08-20 12:53:24 | 2024-08-21 05:29:00 | n |
| 194606 | IIEES SC | TABS | Z | 0.2 | 1 | 2024-08-20 12:53:31 | 2024-08-21 05:29:00 | n |
| 194607 | IIEES SC | BNDS | Z | 0.1 | 1 | 2024-08-20 12:53:40 | 2024-08-21 05:29:00 | n |
| 194608 | IIEES SC | ZHSF | Z | 0.04 | 1 | 2024-08-20 12:53:43 | 2024-08-21 05:29:00 | n |
| 194609 | IIEES SC | NASN | Z | 0.1 | 1 | 2024-08-20 12:53:45 | 2024-08-21 05:29:00 | n |
| 194610 | IIEES SC | SHRT | Z | 0.05 | 1 | 2024-08-20 12:53:49 | 2024-08-21 05:29:00 | n |
| 194611 | IIEES SC | MRVT | Z | 0.01 | 1 | 2024-08-20 12:54:26 | 2024-08-21 05:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KRBR | Z | EPg | E | 2024-08-20 12:52:52 | -8.7 | n | 4 | 97 | 178 | ||
| IIEES SC | BSRN | Z | EPn | E | 2024-08-20 12:53:24 | -0.1 | y | 0 | 259 | 62 | ||
| IIEES SC | YZKH | Z | EPn | E | 2024-08-20 12:53:02 | -23.4 | n | 4 | 265 | 310 | ||
| IIEES SC | TABS | Z | EPn | E | 2024-08-20 12:53:31 | -0.1 | y | 0 | 312 | 7 | ||
| IIEES SC | BNDS | Z | EPn | E | 2024-08-20 12:53:40 | -0.1 | y | 0 | 387 | 188 | ||
| IIEES SC | ZHSF | Z | EPn | E | 2024-08-20 12:53:43 | -0.3 | y | 0 | 413 | 110 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-08-20 12:53:45 | -0.3 | y | 0 | 429 | 300 | ||
| IIEES SC | SHRT | Z | EPn | E | 2024-08-20 12:53:49 | 0.5 | y | 0 | 456 | 47 | ||
| IIEES SC | GHIR | Z | EPn | E | 2024-08-20 12:53:49 | 0.2 | y | 0 | 461 | 232 | ||
| IIEES SC | SHRO | Z | EPn | E | 2024-08-20 12:53:57 | -6.8 | n | 4 | 575 | 353 | ||
| IIEES SC | IRSR | Z | EPn | E | 2024-08-20 12:54:05 | 0.2 | y | 0 | 590 | 137 | ||
| IIEES SC | UOSS | Z | EPn | E | 2024-08-20 12:54:03 | -10.2 | n | 4 | 657 | 185 | ||
| IIEES SC | MRVT | Z | EPn | E | 2024-08-20 12:54:26 | 0.3 | y | 0 | 757 | 356 | ||
| IIEES SC | BJRD | Z | EPn | E | 2024-08-20 12:54:24 | -2.2 | n | 4 | 762 | 5 | ||
