Magnitude |
:3.3 |
| Date & Time (UTC) | 2020-08-07 14:46:01.2 |
| Date & Time (Local) | 1399/5/17 19:16:01.2 |

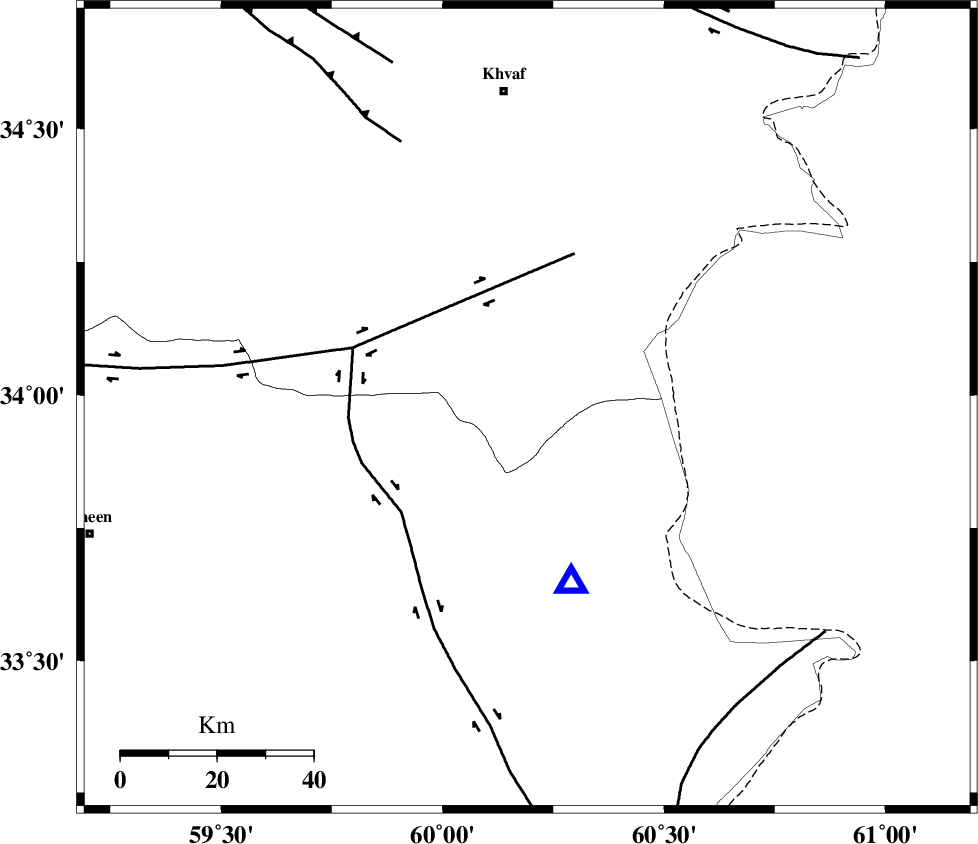

| Location | Lat:33.975 Lon: 60.191 |
| Region | Khorasan(center) Province, 66 km South of Khaf |
Nearest Cities |
|
| 15 km West of Sirkhun, Khorasan(center) Province | |
| 23 km South of Pasgah-e chazul, Khorasan(center) Province | |
| 27 km South West of Chahkand, Khorasan(center) Province | |
| 28 km South of Niyazabad, Khorasan(center) Province | |
| 37 km North of Shahdokht, Khorasan(south) Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| DASHT_E_BAYAZ_F (Length: 177 km) , Distance to epicenter: 34 km | |
| ABRIZ_F (Length: 114 km) , Distance to epicenter: 34 km | |
| JANGAL_F (Length: 111 km) , Distance to epicenter: 62 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 11 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 6.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 194880 | IIEES SC | SHRT | Z | 20 | 1 | 2020-08-07 14:46:08 | 2024-09-09 11:44:00 | n |
| 194881 | IIEES SC | SHRT | Z | 20 | 1 | 2020-08-07 14:46:13 | 2024-09-09 11:44:00 | n |
| 194882 | IIEES SC | TABS | Z | 0.2 | 1 | 2020-08-07 14:46:45 | 2024-09-09 11:44:00 | n |
| 194883 | IIEES SC | BJRD | Z | 0.02 | 1 | 2020-08-07 14:47:08 | 2024-09-09 11:44:00 | n |
| 194884 | IIEES SC | ZHSF | Z | 0.02 | 1 | 2020-08-07 14:47:08 | 2024-09-09 11:44:00 | n |
| 194885 | IIEES SC | KRBR | Z | 0.05 | 1 | 2020-08-07 14:47:16 | 2024-09-09 11:44:00 | n |
| 194886 | IIEES SC | YZKH | Z | 0.06 | 1 | 2020-08-07 14:47:17 | 2024-09-09 11:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SHRT | Z | EPg | E | 2020-08-07 14:46:08 | -0.1 | y | 0 | 38 | 166 | ||
| IIEES SC | SHRT | Z | ESg | E | 2020-08-07 14:46:13 | 0 | y | 0 | 38 | 166 | ||
| IIEES SC | BSRN | Z | EPn | E | 2020-08-07 14:46:39 | 0.5 | y | 0 | 244 | 204 | ||
| IIEES SC | TABS | Z | EPn | E | 2020-08-07 14:46:45 | 0.8 | y | 0 | 287 | 263 | ||
| IIEES SC | KAGH | Z | EPn | E | 2020-08-07 14:46:49 | 0.1 | y | 0 | 329 | 356 | ||
| IIEES SC | SHRO | Z | EPn | E | 2020-08-07 14:47:03 | -0.1 | y | 0 | 443 | 301 | ||
| IIEES SC | BJRD | Z | EPn | E | 2020-08-07 14:47:08 | -0.3 | y | 0 | 484 | 329 | ||
| IIEES SC | ZHSF | Z | EPn | E | 2020-08-07 14:47:08 | -0.3 | y | 0 | 487 | 174 | ||
| IIEES SC | KRBR | Z | EPn | E | 2020-08-07 14:47:16 | -0.7 | y | 0 | 549 | 216 | ||
| IIEES SC | YZKH | Z | EPn | E | 2020-08-07 14:47:17 | -0.2 | y | 0 | 551 | 251 | ||
| IIEES SC | MRVT | Z | EPn | E | 2020-08-07 14:47:11 | -5.5 | n | 4 | 552 | 318 | ||
