Magnitude |
:3.4 |
| Date & Time (UTC) | 2024-09-12 05:50:36.8 |
| Date & Time (Local) | 1403/6/22 09:20:36.8 |

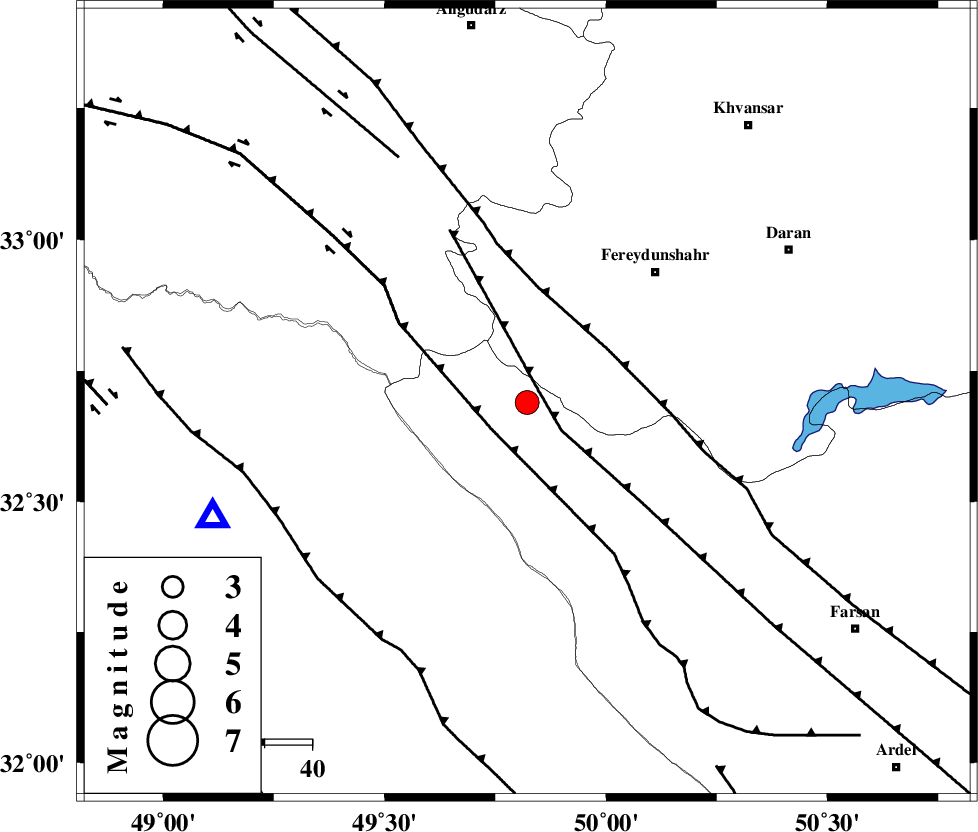

| Location | Lat:32.69 Lon: 49.822 |
| Region | Chaharmahal Bakhtiari Province, 37 km North-West of Chelgard |
Nearest Cities |
|
| 4 km of Durak, Chaharmahal Bakhtiari Province | |
| 18 km South of Masir, Esfahan Province | |
| 31 km South West of Sibak, Esfahan Province | |
| 37 km North West of Chelgard, Chaharmahal Bakhtiari Province | |
| 38 km West of Ghale? sorkh, Esfahan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| ARDAL_F (Length: 170 km) , Distance to epicenter: 3 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 9 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 20 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 398.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 194912 | IIEES SC | NASN | Z | 0.2 | 1 | 2024-09-12 05:51:20 | 2024-09-14 07:43:00 | n |
| 194913 | IIEES SC | YZKH | Z | 0.06 | 1 | 2024-09-12 05:51:40 | 2024-09-14 07:43:00 | n |
| 194914 | IIEES SC | SRSL | Z | 0.05 | 1 | 2024-09-12 05:51:54 | 2024-09-14 07:43:00 | n |
| 194915 | IIEES SC | TABS | Z | 0.02 | 1 | 2024-09-12 05:52:09 | 2024-09-14 07:43:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GHVR | Z | EPn | E | 2024-09-12 05:51:14 | 0 | y | 0 | 238 | 34 | ||
| IIEES SC | GHVR | Z | ES | E | 2024-09-12 05:51:40 | -1.6 | n | 4 | 238 | 34 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-09-12 05:51:20 | 0.2 | y | 0 | 280 | 88 | ||
| IIEES SC | YZKH | Z | EPn | E | 2024-09-12 05:51:40 | -0.2 | y | 0 | 449 | 94 | ||
| IIEES SC | GIDE | Z | EPn | E | 2024-09-12 05:51:43 | 0.5 | y | 0 | 470 | 0 | ||
| IIEES SC | SRSL | Z | EPn | E | 2024-09-12 05:51:54 | -0.2 | y | 0 | 561 | 314 | ||
| IIEES SC | GHIR | Z | EPn | E | 2024-09-12 05:51:56 | 0.1 | y | 0 | 575 | 148 | ||
| IIEES SC | SHRO | Z | EPn | E | 2024-09-12 05:51:59 | -9.8 | n | 4 | 678 | 57 | ||
| IIEES SC | TABS | Z | EPn | E | 2024-09-12 05:52:09 | -1 | y | 0 | 689 | 81 | ||
