Magnitude |
:3.3 |
| Date & Time (UTC) | 2020-08-08 21:51:50.9 |
| Date & Time (Local) | 1399/5/19 02:21:50.9 |
| Location | Lat:32.35 Lon: 55.787 |
| Region | Yazd Province, 91 km North-East of Bafq |
Nearest Cities |
|
| 58 km North West of Behabad, Yazd Province | |
| 68 km North of Kushk, Yazd Province | |
| 74 km North West of Benestan, Yazd Province | |
| 77 km South East of Robat-e posht-e badam, Yazd Province | |
| 86 km North West of Asfih, Yazd Province | |
| Depth | 15 km |
| Agency | |

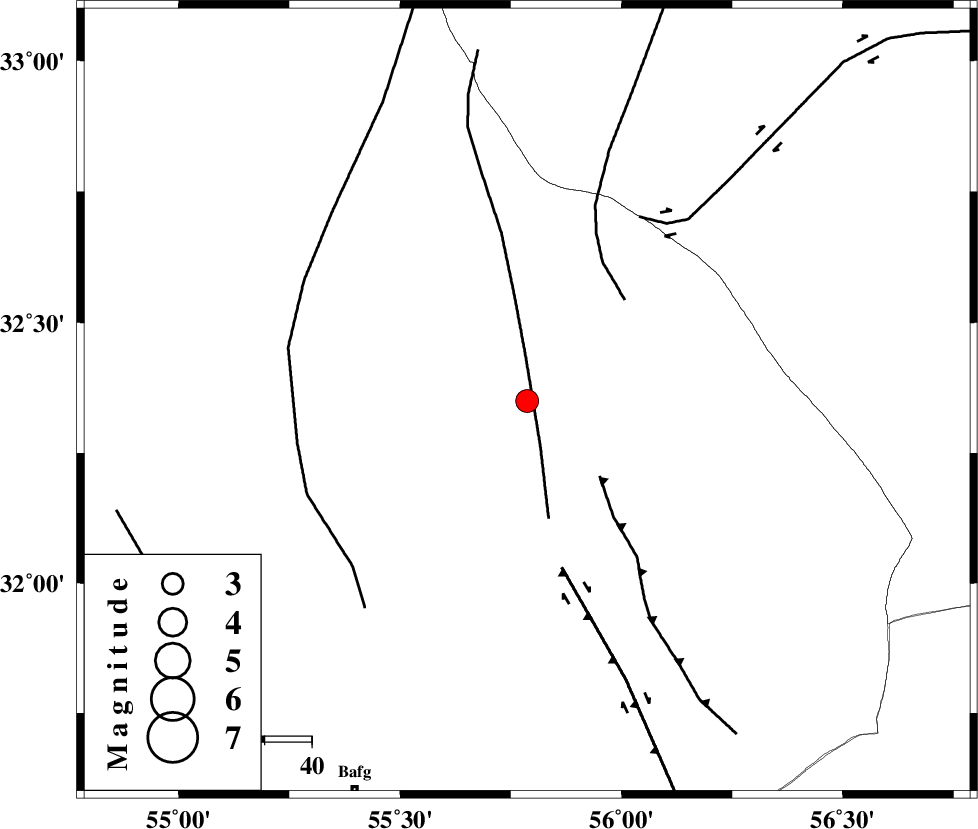

Faults within 150 km: |
|
| SARBALA_F (Length: 92 km) , Distance to epicenter: 10 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 22 km | |
| NAINI_F (Length: 342 km) , Distance to epicenter: 30 km | |
| Number of Phases | 19 |
| RMS | 0.4 |
| Number of Stations | 19 |
| Error in Latitude | >1.1 km |
| Error in Longitude | 1.1 km |
| Error in Depth | 5.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 194933 | IIEES SC | YZKH | Z | 1 | 1 | 2020-08-08 21:52:09 | 2024-09-15 11:21:00 | n |
| 194934 | IIEES SC | YZKH | Z | 1 | 1 | 2020-08-08 21:52:23 | 2024-09-15 11:21:00 | n |
| 194935 | IIEES SC | KRBR | Z | 0.5 | 1 | 2020-08-08 21:52:33 | 2024-09-15 11:21:00 | n |
| 194936 | IIEES SC | NASN | Z | 0.3 | 1 | 2020-08-08 21:52:33 | 2024-09-15 11:21:00 | n |
| 194937 | IIEES SC | SHRT | Z | 0.04 | 1 | 2020-08-08 21:52:53 | 2024-09-15 11:21:00 | n |
| 194938 | IIEES SC | DAMV | Z | 0.04 | 1 | 2020-08-08 21:53:02 | 2024-09-15 11:21:00 | n |
| 194939 | IIEES SC | KHMZ | Z | 0.02 | 1 | 2020-08-08 21:53:09 | 2024-09-15 11:21:00 | n |
| 194940 | IIEES SC | CHTH | Z | 0.02 | 1 | 2020-08-08 21:53:10 | 2024-09-15 11:21:00 | n |
| 194941 | IIEES SC | MRVT | Z | 0.02 | 1 | 2020-08-08 21:53:12 | 2024-09-15 11:21:00 | n |
| 194942 | IIEES SC | GTMR | Z | 0.03 | 1 | 2020-08-08 21:53:16 | 2024-09-15 11:21:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | YZKH | Z | EPg | E | 2020-08-08 21:52:09 | -0.2 | y | 0 | 113 | 272 | ||
| IIEES SC | YZKH | Z | ESg | E | 2020-08-08 21:52:23 | 0.2 | y | 0 | 113 | 272 | ||
| IIEES SC | TABS | Z | EPg | E | 2020-08-08 21:52:21 | 0.3 | y | 0 | 190 | 41 | ||
| IIEES SC | TABS | Z | ESg | E | 2020-08-08 21:52:48 | 4.2 | n | 4 | 190 | 41 | ||
| IIEES SC | KRBR | Z | EPn | E | 2020-08-08 21:52:33 | 0.1 | y | 0 | 278 | 161 | ||
| IIEES SC | NASN | Z | EPn | E | 2020-08-08 21:52:33 | -0.3 | y | 0 | 284 | 280 | ||
| IIEES SC | BSRN | Z | EPn | E | 2020-08-08 21:52:35 | -2.1 | n | 4 | 318 | 98 | ||
| IIEES SC | SHRO | Z | EPn | E | 2020-08-08 21:52:48 | -0.1 | y | 0 | 406 | 3 | ||
| IIEES SC | SHRT | Z | EPn | E | 2020-08-08 21:52:53 | -0.1 | y | 0 | 445 | 71 | ||
| IIEES SC | GHVR | Z | EPn | E | 2020-08-08 21:52:57 | -0.9 | y | 0 | 484 | 299 | ||
| IIEES SC | DAMV | Z | EPn | E | 2020-08-08 21:53:02 | 0.7 | y | 0 | 507 | 316 | ||
| IIEES SC | ZHSF | Z | EPn | E | 2020-08-08 21:53:08 | -0.4 | y | 0 | 564 | 123 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2020-08-08 21:53:09 | 0.6 | y | 0 | 565 | 286 | ||
| IIEES SC | CHTH | Z | EPn | E | 2020-08-08 21:53:10 | -0.6 | y | 0 | 584 | 313 | ||
| IIEES SC | ASAO | Z | EPn | E | 2020-08-08 21:53:11 | -0.3 | y | 0 | 589 | 294 | ||
| IIEES SC | MRVT | Z | EPn | E | 2020-08-08 21:53:12 | 0.4 | y | 0 | 590 | 3 | ||
| IIEES SC | BJRD | Z | EPn | E | 2020-08-08 21:53:14 | 0.4 | y | 0 | 612 | 14 | ||
| IIEES SC | GTMR | Z | EPn | E | 2020-08-08 21:53:16 | 0.3 | y | 0 | 628 | 271 | ||
| IIEES SC | KAGH | Z | EPn | E | 2020-08-08 21:53:16 | -0.7 | y | 0 | 637 | 37 | ||
