Magnitude |
:3.1 |
| Date & Time (UTC) | 2020-08-09 21:50:23.6 |
| Date & Time (Local) | 1399/5/20 02:20:23.6 |

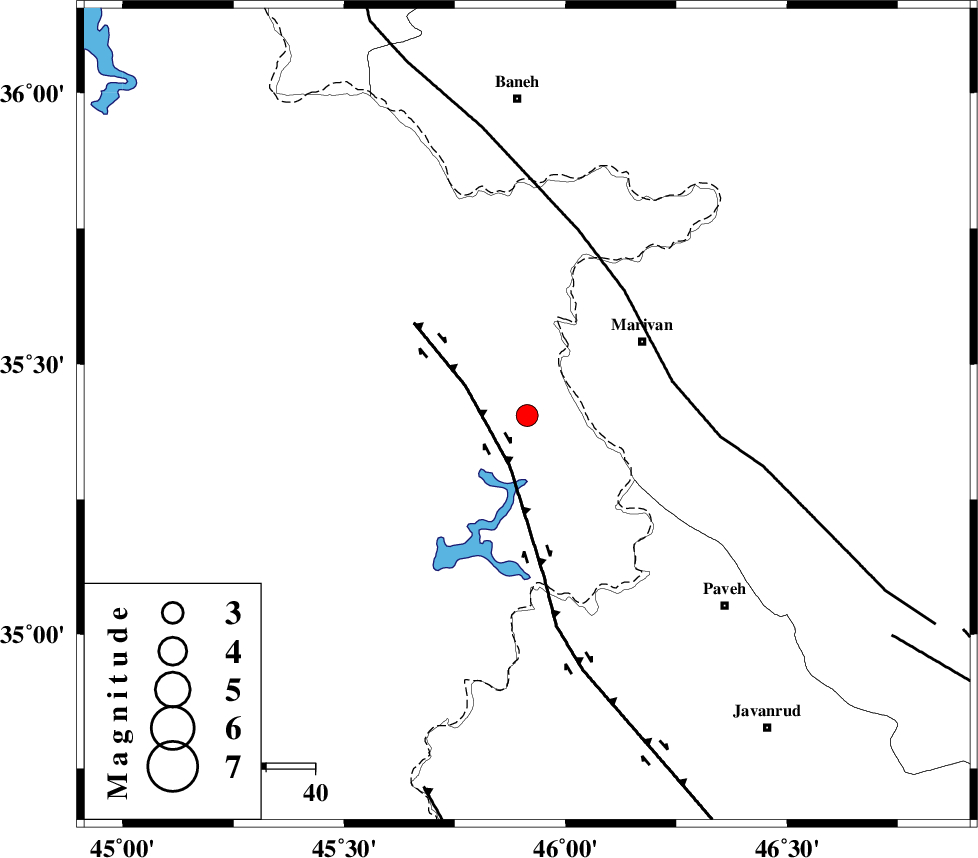

| Location | Lat:35.405 Lon: 45.913 |
| Region | Iraq, 28 km South-West of Marivan |
Nearest Cities |
|
| 19 km South West of Ney, Kurdistan Province | |
| 26 km South West of Bardeh rasheh, Kurdistan Province | |
| 26 km West of Kanidinar, Kurdistan Province | |
| 28 km South West of Marivan, Kurdistan Province | |
| 32 km North West of Qaleh ji, Kurdistan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 11 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 31 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 80 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 11 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 2.2 km |
| Error in Depth | 8.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 194974 | IIEES SC | SRSL | Z | 0.9 | 1 | 2020-08-09 21:50:40 | 2024-09-15 11:45:00 | n |
| 194975 | IIEES SC | SNGE | Z | 0.7 | 1 | 2020-08-09 21:50:46 | 2024-09-15 11:45:00 | n |
| 194976 | IIEES SC | SNGE | Z | 0.7 | 1 | 2020-08-09 21:51:03 | 2024-09-15 11:45:00 | n |
| 194977 | IIEES SC | ILBA | Z | 0.4 | 1 | 2020-08-09 21:50:55 | 2024-09-15 11:45:00 | n |
| 194978 | IIEES SC | ASAO | Z | 0.05 | 1 | 2020-08-09 21:51:19 | 2024-09-15 11:45:00 | n |
| 194979 | IIEES SC | GIDE | Z | 0.06 | 1 | 2020-08-09 21:51:19 | 2024-09-15 11:45:00 | n |
| 194980 | IIEES SC | KHMZ | Z | 0.05 | 1 | 2020-08-09 21:51:22 | 2024-09-15 11:45:00 | n |
| 194981 | IIEES SC | GRMI | Z | 0.01 | 1 | 2020-08-09 21:51:22 | 2024-09-15 11:45:00 | n |
| 194982 | IIEES SC | GTMR | Z | 0.07 | 1 | 2020-08-09 21:51:26 | 2024-09-15 11:45:00 | n |
| 194983 | IIEES SC | GHVR | Z | 0.05 | 1 | 2020-08-09 21:51:33 | 2024-09-15 11:45:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SRSL | Z | EPg | E | 2020-08-09 21:50:40 | 0.2 | y | 0 | 100 | 334 | ||
| IIEES SC | SNGE | Z | EPg | E | 2020-08-09 21:50:46 | 0.1 | y | 0 | 135 | 105 | ||
| IIEES SC | SNGE | Z | ESg | E | 2020-08-09 21:51:03 | 0.6 | y | 0 | 135 | 105 | ||
| IIEES SC | ILBA | Z | EPg | E | 2020-08-09 21:50:55 | -0.1 | y | 0 | 199 | 172 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2020-08-09 21:51:07 | 0.5 | y | 0 | 287 | 61 | ||
| IIEES SC | ASAO | Z | EPn | E | 2020-08-09 21:51:19 | -0.7 | y | 0 | 387 | 104 | ||
| IIEES SC | GIDE | Z | EPn | E | 2020-08-09 21:51:19 | -0.3 | y | 0 | 390 | 64 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2020-08-09 21:51:22 | -0.5 | y | 0 | 415 | 116 | ||
| IIEES SC | GRMI | Z | EPn | E | 2020-08-09 21:51:22 | -0.6 | y | 0 | 417 | 25 | ||
| IIEES SC | GTMR | Z | EPn | E | 2020-08-09 21:51:26 | 0.3 | y | 0 | 440 | 138 | ||
| IIEES SC | GHVR | Z | EPn | E | 2020-08-09 21:51:33 | 0.2 | y | 0 | 498 | 102 | ||
